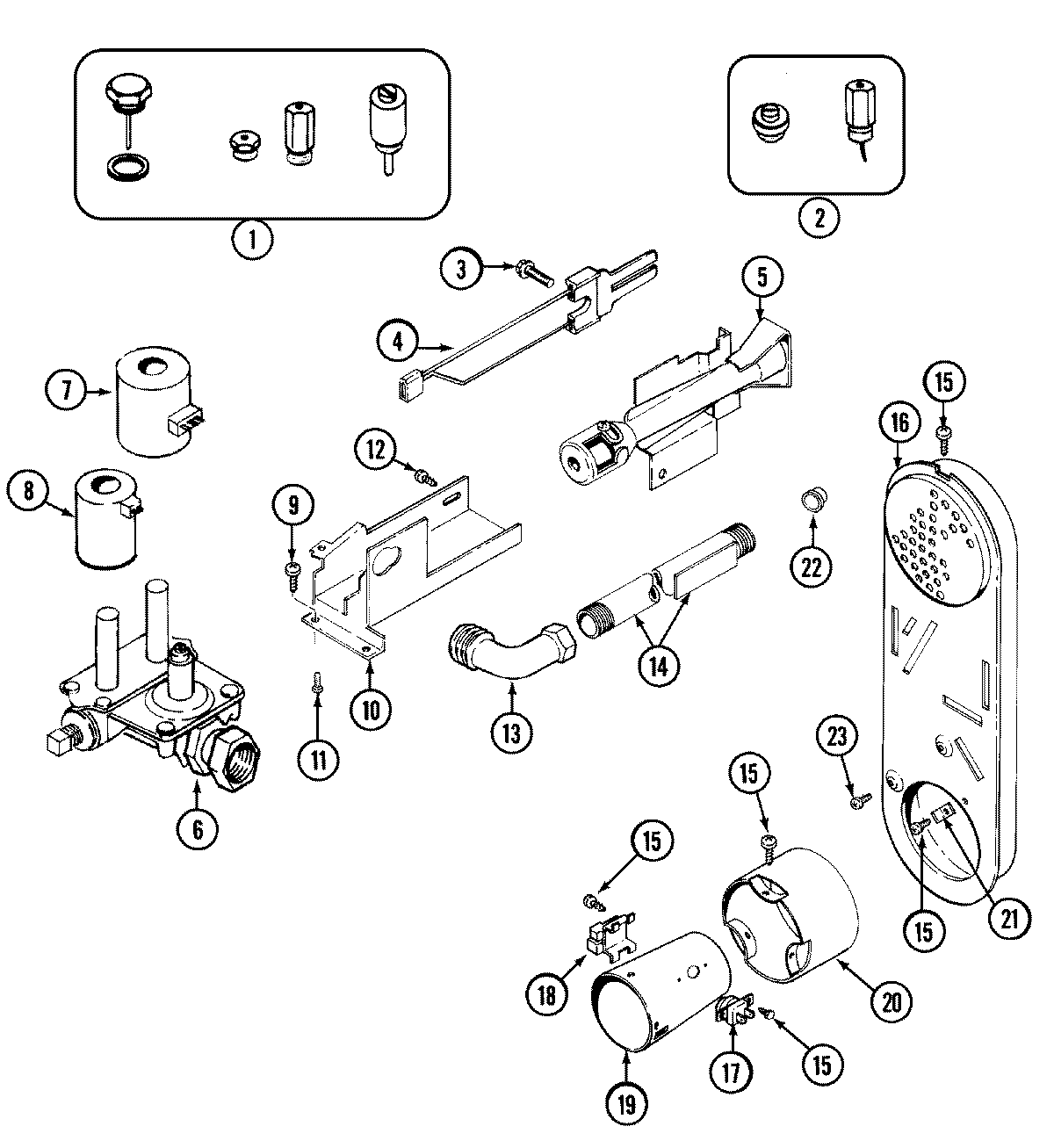

MDE8600AYQ 05 – GAS VALVE

Products

Position	Product
2	WP33002924 Whirlpool LP Conversion Gas
3	MAY 304971
4	4391996 Whirlpool Dryer Flat Igniter
5	WP33002793 Whirlpool Burner Assembly
6	WP306176 Whirlpool Gas Valve
8	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
9	MAY Y313561
10	MAY 33001834
11	MAY 314082
11	MAY 314568
12	MAY Y310632
13	3406051 Whirlpool Elbow
14	MAY 33001735
15	WP90767 Whirlpool Screw
16	DUCT ASSY., INLET (GAS)
17	WP303395 Whirlpool Thermostat
18	WP338906 Whirlpool Dryer Gas Sensor
19	MAY 33001835
20	MAY Y303841
21	MAY Y312890
22	MAY 33001693
23	WP489128 Whirlpool Refrigerator Screw
