MDE8600AYW 03 – CONTROL PANEL

MDE8600AYW 03 – CONTROL PANEL

Written by

in

MDE8600AYW 03 – CONTROL PANEL

Products

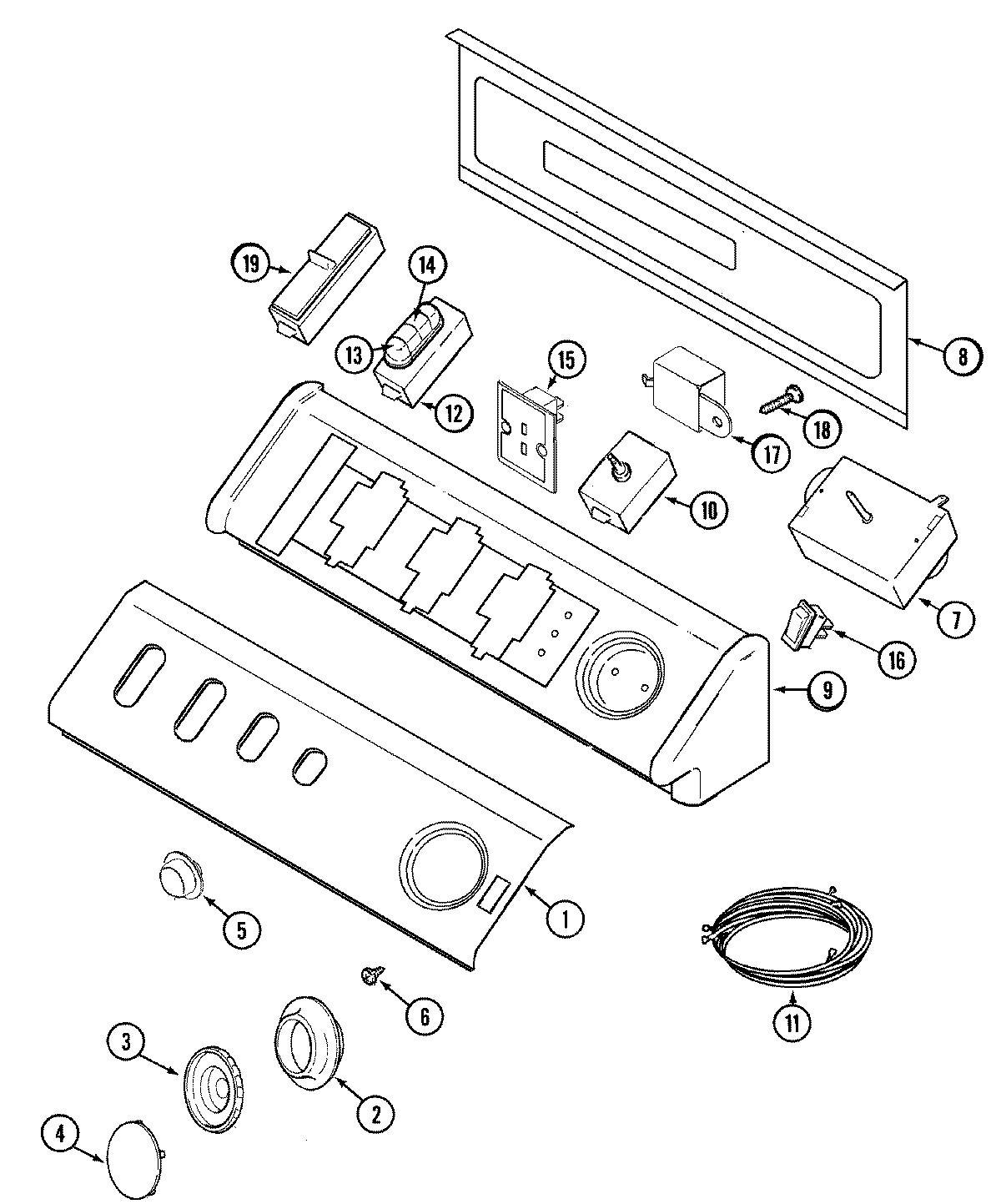

PositionProduct
1PANEL, CONTROL (WHT) NOTE: PANEL, CONTROL (WHT)
1MAY Y22002339
2WP33001621 Whirlpool Dial Knob
3WP22001659 Whirlpool Timer Knob
4WP22001664 Whirlpool Timer Knob
5MAY 33001619
6WP90767 Whirlpool Screw
7WP33002676 Whirlpool Element Timer
7WP33001730 Whirlpool Timer
8MAY 216423
8MAY 22002529
9MAY 33002286
10MAY 33001861
11MAY 33002419
12MAY 33002414
13MAY 22001788
14MAY 22001789
15MAY 33002389
16MAY 33002417
17MAY 33001848
19WP33001656 Whirlpool Temperature Switch
20WP22001948 Whirlpool Indicator Lens
20MAY 22001403
21MAY 33002582
