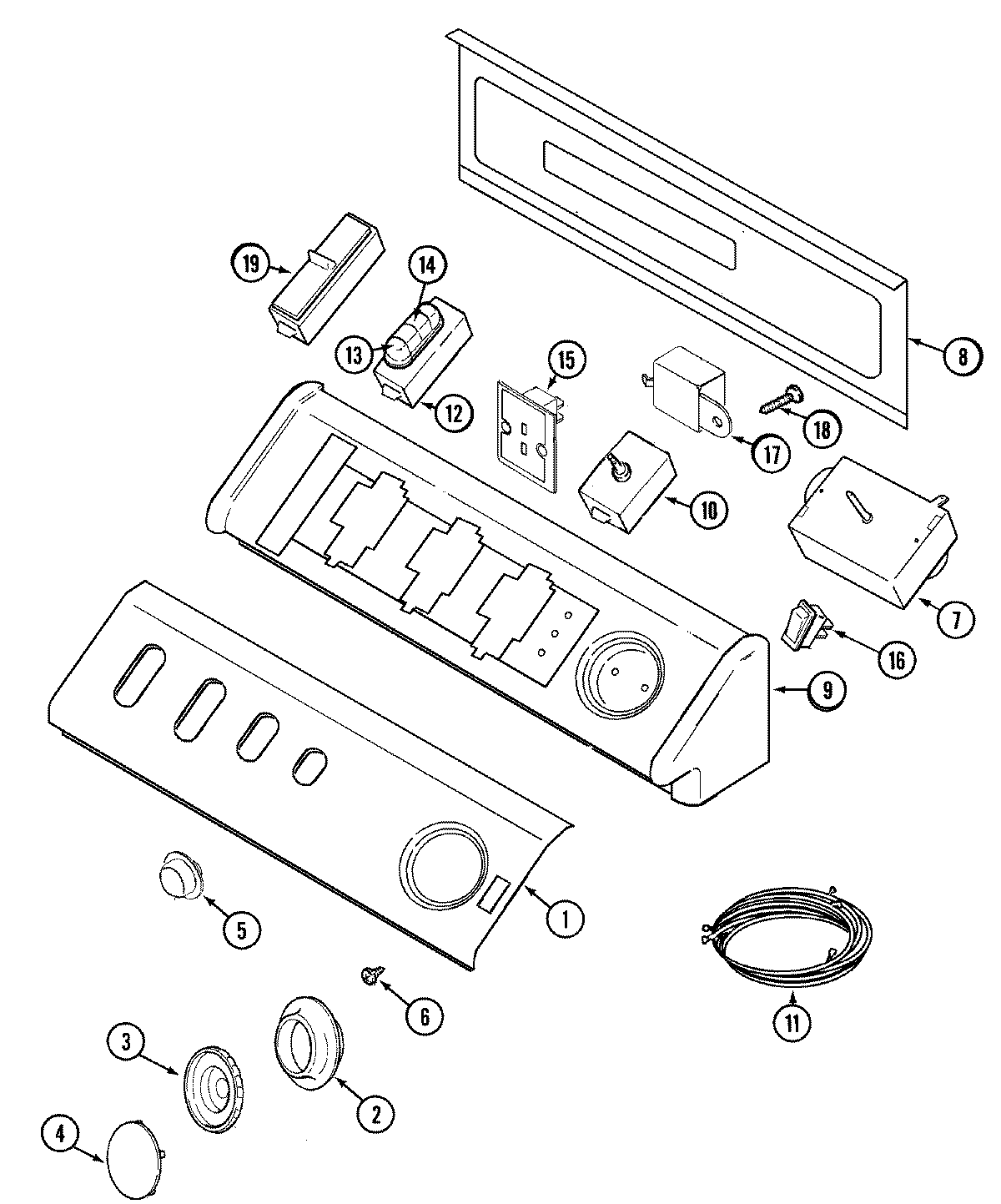

MDE8600AZW 03 – CONTROL PANEL

Products

Position	Product
1	PANEL, CONTROL (WHT) NOTE: PANEL, CONTROL (WHT)
1	MAY Y22002339
2	WP33001621 Whirlpool Dial Knob
3	WP22001659 Whirlpool Timer Knob
4	WP22001664 Whirlpool Timer Knob
5	MAY 33001619
6	WP90767 Whirlpool Screw
7	WP33002676 Whirlpool Element Timer
7	WP33001730 Whirlpool Timer
8	MAY 216423
8	MAY 22002529
9	MAY 33002286
10	MAY 33001861
11	MAY 33002419
12	MAY 33002414
13	MAY 22001788
14	MAY 22001789
15	MAY 33002389
16	MAY 33002417
17	MAY 33001848
19	WP33001656 Whirlpool Temperature Switch
20	WP22001948 Whirlpool Indicator Lens
20	MAY 22001403
21	MAY 33002582
