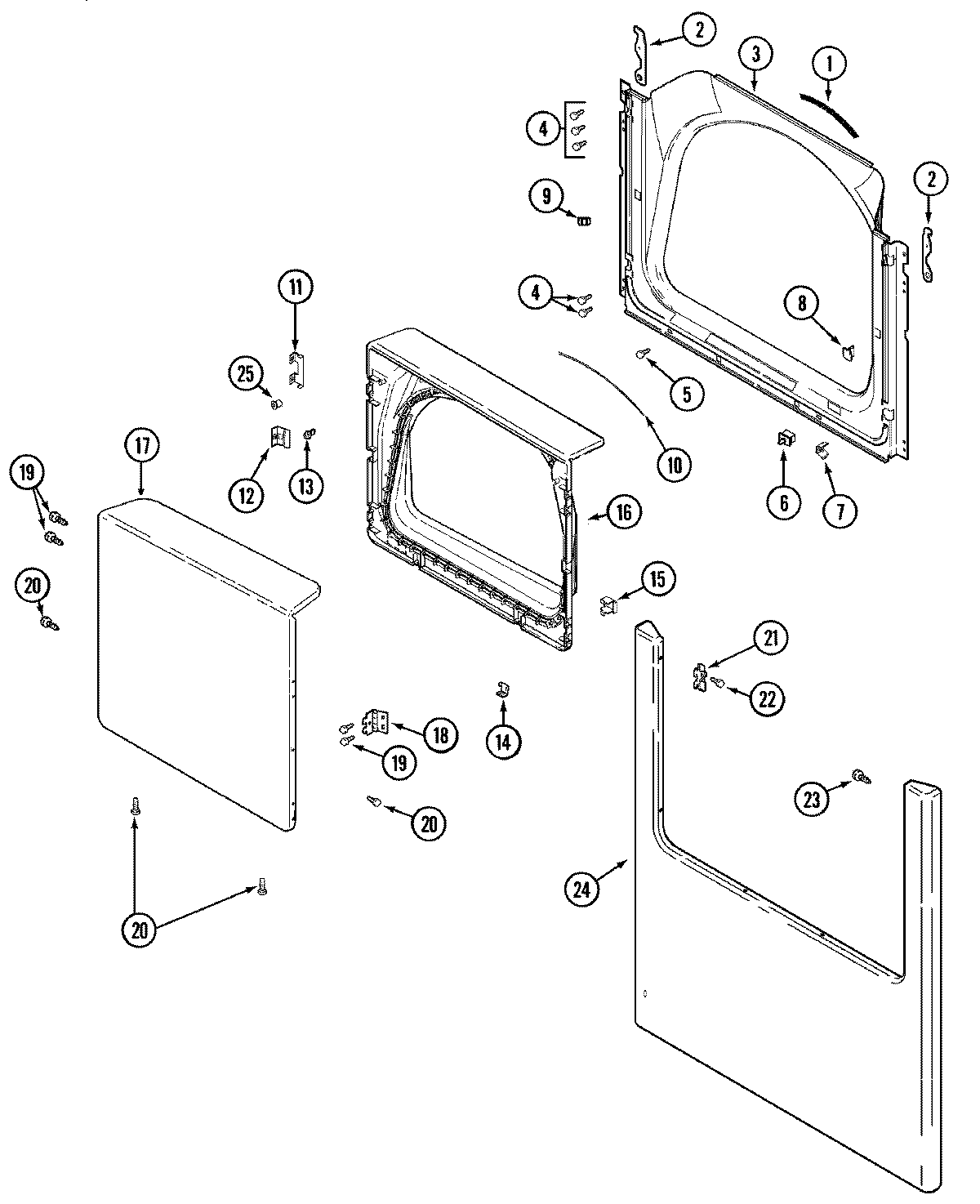

MDE9606AYQ 04 – DOOR (BSQ)

Products

Position	Product
1	MAY 33001767
2	MAY 22002247
3	MAY 33002436
4	W11573574 Whirlpool Screw
5	MAY 33001768
6	W10169313 Whirlpool Door Switch Kit
7	MAY 33001760
8	MAY 33001174
9	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
9	MAY Y304578
10	WP33002094 Whirlpool Door Seal
11	MAY 22002038
12	WP33001793 Whirlpool Bracket Spring
13	MAY 33001761
14	MAY 22002039
15	MAY 33001763
16	MAY 33002439
17	MAY 33002371
17	WP22001817 Whirlpool Sheet
18	WP33001759 Whirlpool Door Hinge
19	WP98006631 Whirlpool Screw
20	SCREW
21	MAY 33002349
22	WP33001787 Whirlpool Screw
23	WP22002012 Whirlpool Screw Assembly
24	MAY 33002368
25	MAY 33001771
