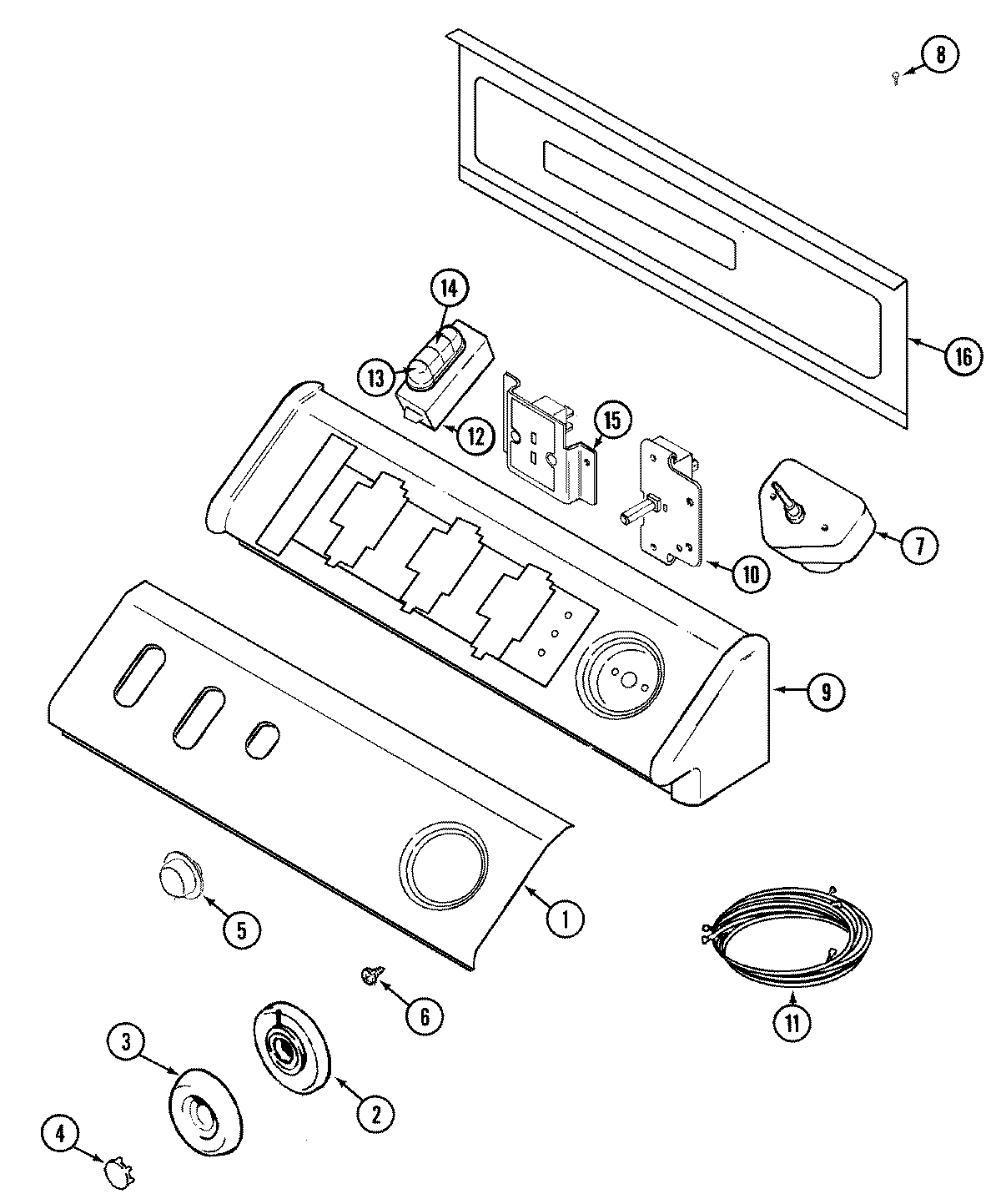

MDE9606AZQ 03 – CONTROL PANEL (BSQ)

Products

PositionProduct
1MAY Y22002339
1MAY 33002438
2MAY 33002332
3WP22001659 Whirlpool Timer Knob
4MAY 33002347
5MAY 33002324
6WP90767 Whirlpool Screw
7WP33001932 Whirlpool Timer Assembly
8MAY 216423
9MAY 33002327
10MAY 33002356
11MAY 33001933
12MAY 33002333
13MAY 22002697
14MAY 22002698
15MAY 33002400
16MAY 33001806
18MAY 33001935
