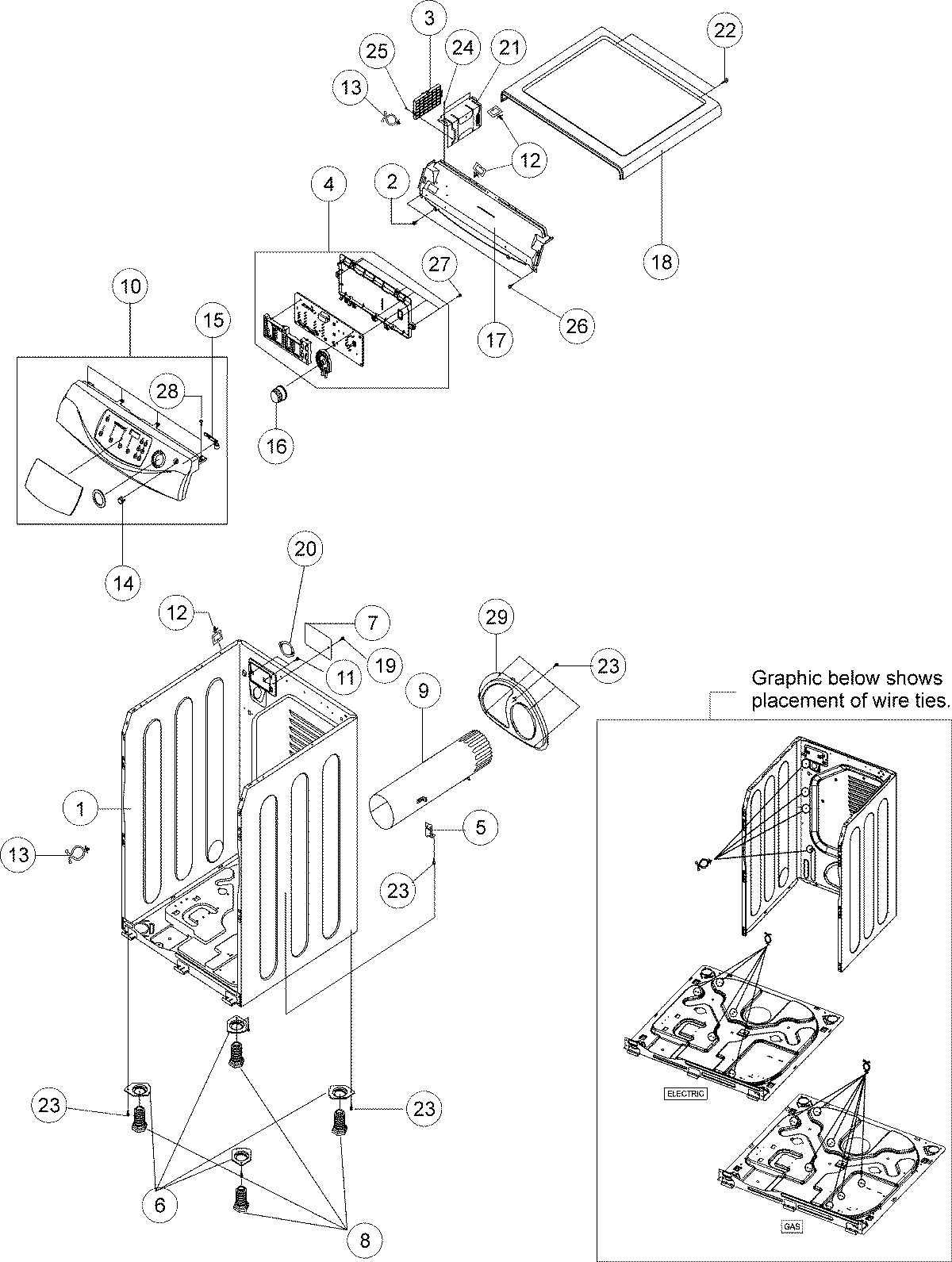

MDE9700AYW 02 – CONTROL PANEL – CABINET

Products

PositionProduct
1Cabinet
2Screw-Tapping
3MAY 35001153
4MAY 35001154
5MAY 35001155
6MAY 35001156
7MAY 34001069
8Foot, Dryer
9EXHAUST PIPE
10MAY 35001160
12Clip, Harness
13HOLDER-WIRE (RETAINER/CLIP)
14MAY 34001235
15MAY 34001279
16MAY 34001233
17MAY 35001162
18MAY 35001163
20279320 Whirlpool Dryer Rear Terminal Block Kit
20Strain-Relief Power Cord
21MAY 35001168
22MAY 35001118
236002-000239 Samsung Appliance Tapping Screw TH + No 2S M4
26MAY 35001166
27MAY 6002-000213
28Screw-Tapping (5)
29MAY 35001201
