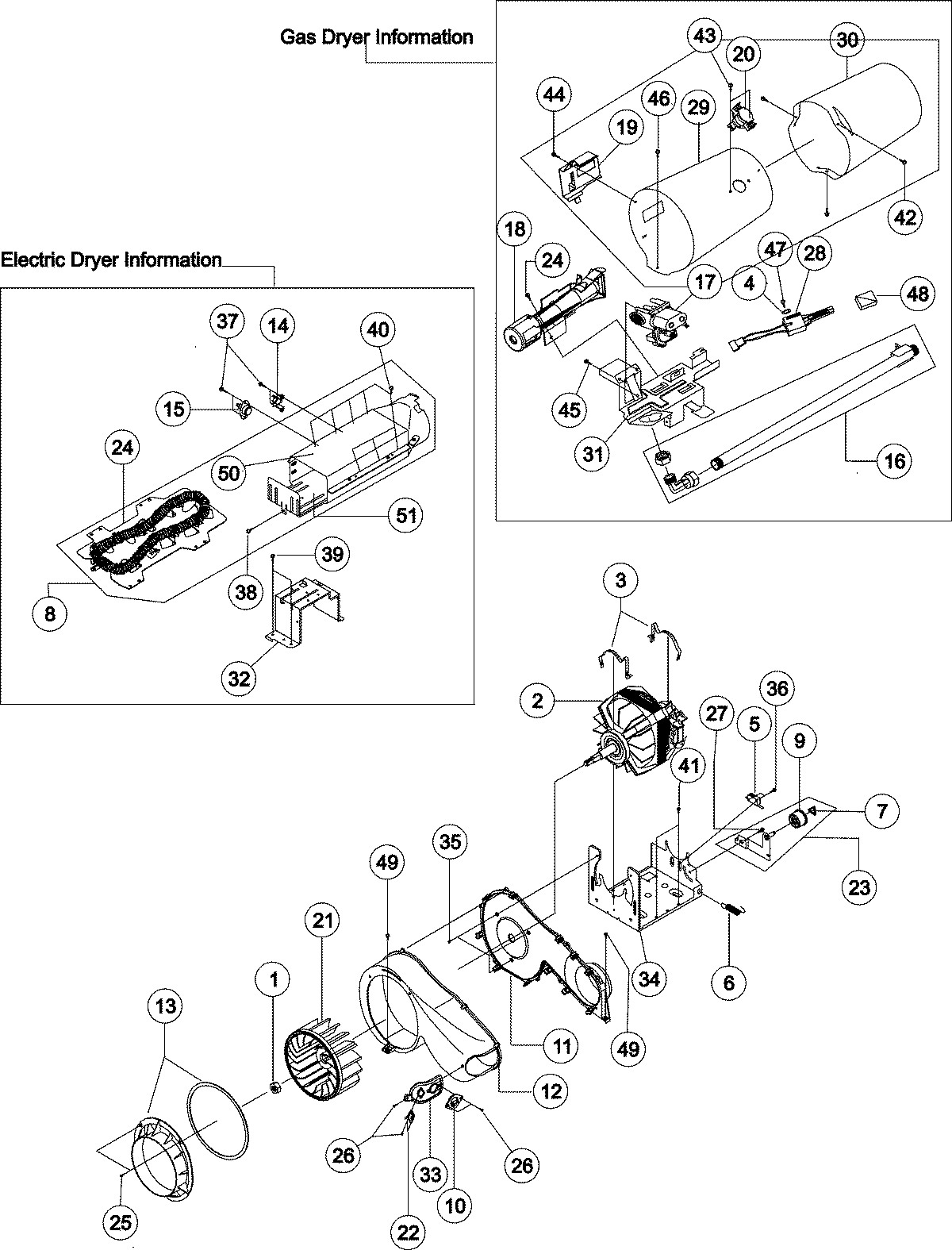

MDE9700AZM 01 – BLOWER-HEATER-MOTOR
Products
Position
Product
2
WP35001080 Whirlpool Dryer Motor
3
MAY 35001081
4
MAY 6021-001130
5
MAY 35001082
6
MAY 35001083
6
MAY 35001278
7
MAY 35001084
8
WPW10222771 Whirlpool Heater with Thermostat
9
DC93-00634A Samsung Dryer Idler Pulley Assembly
10
THERMISTOR
11
MAY 35001088
12
Housing-Blower Front
13
MAY 35001090
14
WP35001193 Whirlpool Thermal Fuse
15
WP35001092 Whirlpool Dryer High Limit Thermostat
16
MAY 35001093
17
WP35001190 Whirlpool Gas Valve
18
MAY 35001095
19
WP338906 Whirlpool Dryer Gas Sensor
20
MAY 35001192
21
MAY 35001097
21
MAY 35001220
22
WP35001087 Whirlpool Thermostat
24
MAY 35001118
25
MAY 6002-000213
27
MAY 35001099
28
MAY 35001100
29
MAY 12001224
29
MAY 35001101
30
MAY 35001102
31
MAY 35001103
32
Bracket, Heater-Box
33
BRACKET-THERMISTOR
34
MAY 35001106
36
SCREW-TAPPING
40
6002-000239 Samsung Appliance Tapping Screw TH + No 2S M4
42
MAY 35001234
45
Screw-Tapping (4)
47
MAY 35001116
48
MAY 35001117
49
Screw-Tapping (5)
50
Box, Heater
51
MAY 35001110
