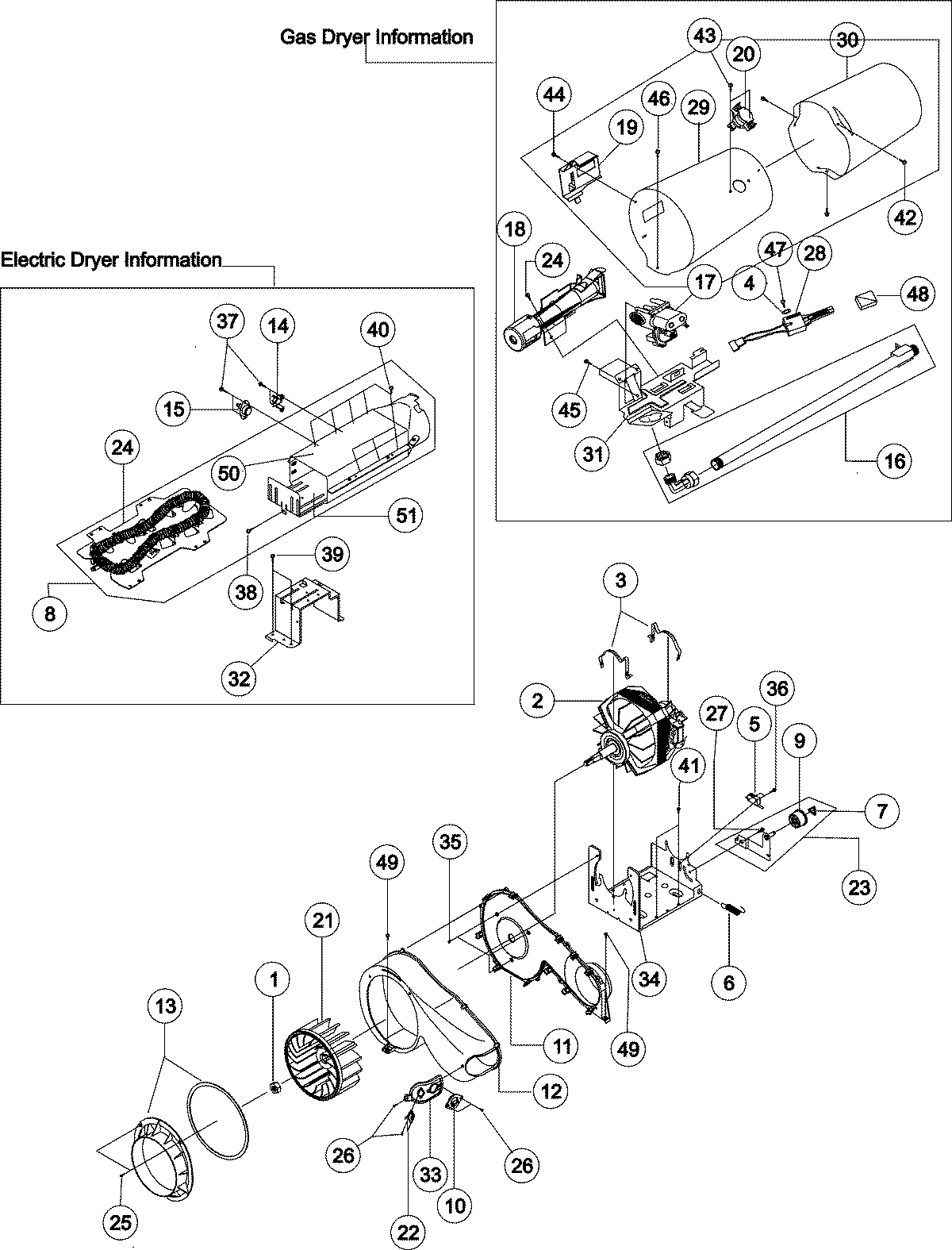

MDE9700AZW 01 – BLOWER-HEATER-MOTOR

Products

Position	Product
1	MAY 35001079
2	WP35001080 Whirlpool Dryer Motor
3	MAY 35001081
4	MAY 6021-001130
5	MAY 35001082
6	MAY 35001083
6	MAY 35001278
7	MAY 35001084
8	WPW10222771 Whirlpool Heater with Thermostat
9	DC93-00634A Samsung Dryer Idler Pulley Assembly
10	THERMISTOR
11	MAY 35001088
12	Housing-Blower Front
13	MAY 35001090
14	WP35001193 Whirlpool Thermal Fuse
15	WP35001092 Whirlpool Dryer High Limit Thermostat
16	MAY 35001093
17	WP35001190 Whirlpool Gas Valve
18	MAY 35001095
19	WP338906 Whirlpool Dryer Gas Sensor
20	MAY 35001192
21	MAY 35001220
21	MAY 35001097
22	WP35001087 Whirlpool Thermostat
24	MAY 35001118
25	MAY 6002-000213
27	MAY 35001099
28	MAY 35001100
29	MAY 35001101
29	MAY 12001224
30	MAY 35001102
31	MAY 35001103
32	Bracket, Heater-Box
33	BRACKET-THERMISTOR
34	MAY 35001106
36	SCREW-TAPPING
40	6002-000239 Samsung Appliance Tapping Screw TH + No 2S M4
42	MAY 35001234
45	Screw-Tapping (4)
47	MAY 35001116
48	MAY 35001117
49	Screw-Tapping (5)
50	Box, Heater
51	MAY 35001110
