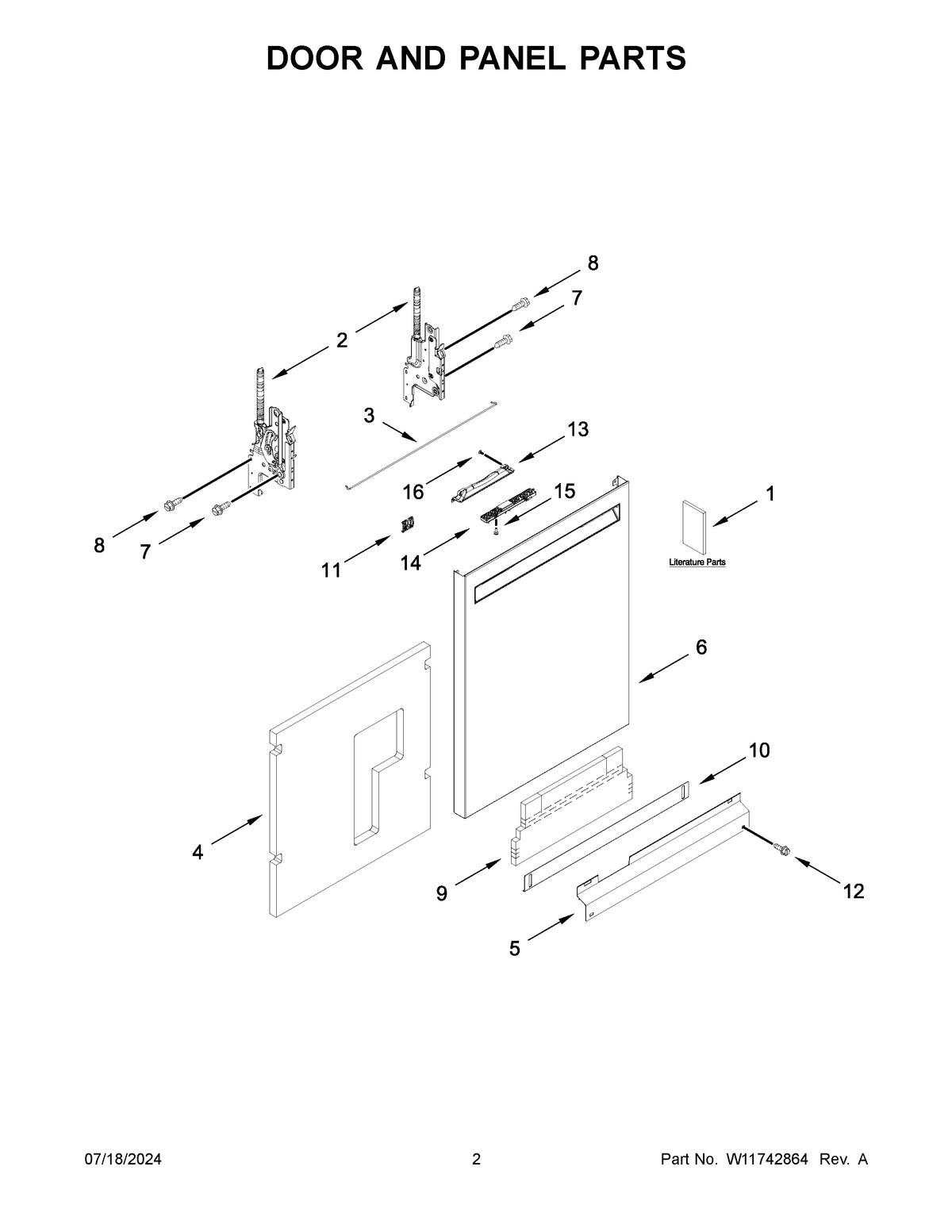

MDFS3924RZ0 02 – DOOR AND PANEL PARTS

MDFS3924RZ0 02 – DOOR AND PANEL PARTS

Written by

in

MDFS3924RZ0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BTECH SHEET
1OWNERS MANUAL
1AENERGY GUIDE
2HINGE-DOOR
2AW11712996 Whirlpool Door Hinge
3W11377160 Whirlpool Brace Assembly
4W10919861 Whirlpool Insulation Pad
5AW11110746 Whirlpool Panel
5W11545318 Whirlpool Toekick Plate
6APANEL, FRONT (INCLUDES UI INSERT, 4,11,13,14,15 & 16) (WHITE)
6PANEL, FRONT (INCLUDES UI INSERT, 4,11,13,14,15 & 16) (BLACK)
6BPANEL, FRONT (INCLUDES UI INSERT, 4,11,13,14,15 & 16) (STAINLESS)
7W11676450 Whirlpool Screw
8WPW10309090 Whirlpool Dishwasher Screw
9W11573704 Whirlpool Dishwasher Shield
10W11579528 Whirlpool Toe Panel
10AW11467726 Whirlpool Toe Panel
11W10692757 Whirlpool Dishwasher Nut Assembly
12ASCREW
12W11551775 Whirlpool Screw
13BHANDLE (GREY)
13AHANDLE (WHITE)
13W11242122 Whirlpool Dishwasher Handle
14W11659652 Whirlpool UI Panel with Core
15SCREW
16SCREW
