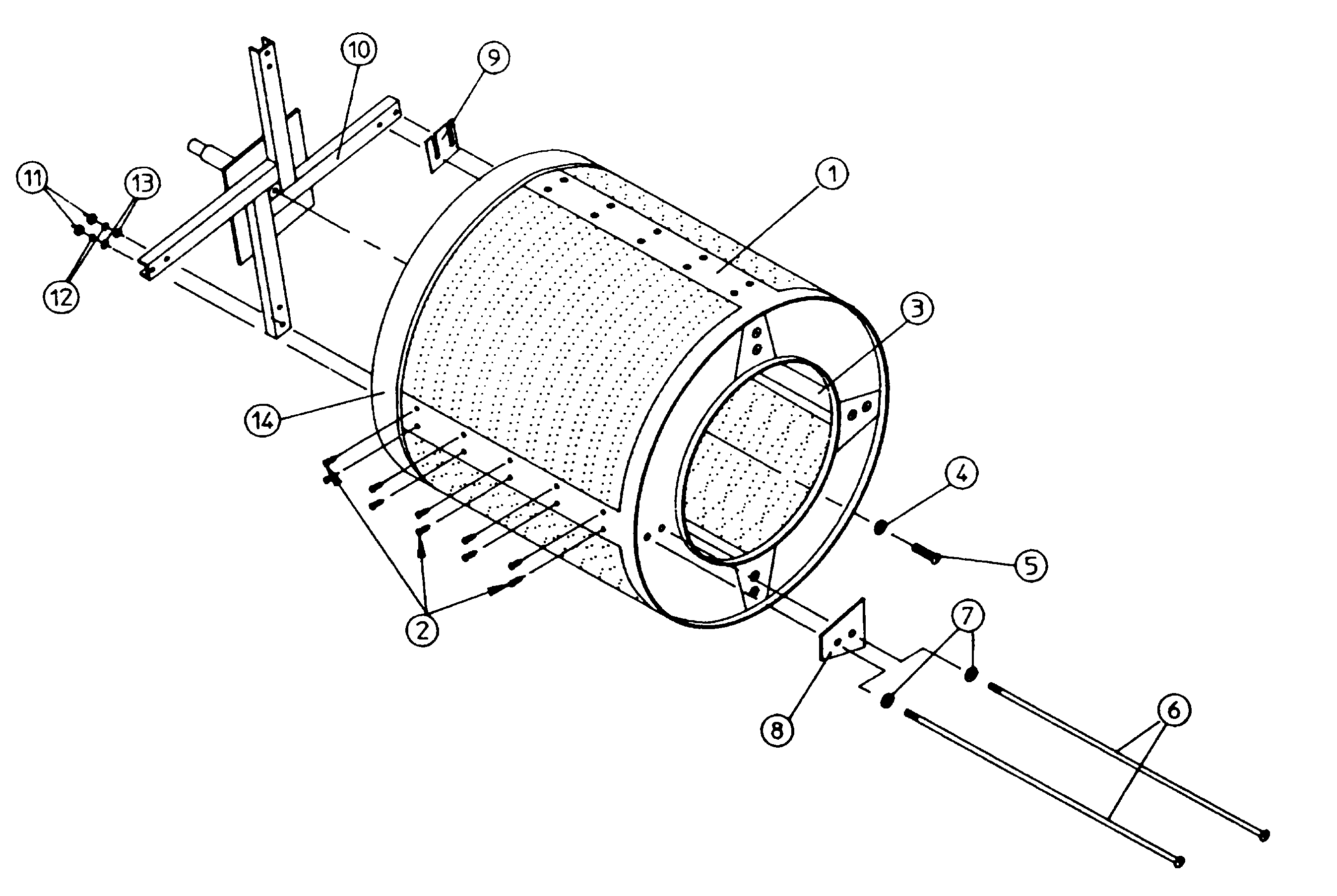

MDG100PN1L 08 – TUMBLER / SUPPORT ASSEMBLY
Written by
in
MDG100PN1L 08 – TUMBLER / SUPPORT ASSEMBLY
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A800807 |
| 001 | MAY A800707 |
| 002 | MAY A150415 |
| 003 | MAY A301300 |
| 005 | MAY A150500 |
| 006 | MAY A100904 |
| 008 | MAY A301700 |
| 009 | SHIM, TUMBLER |
| 010 | MAY A800607 |
| 011 | MAY A153014 |
| 012 | MAY A153013 |
| 013 | MAY A152009 |
| 014 | MAY A401010 |
| 014 | MAY A116004 |
