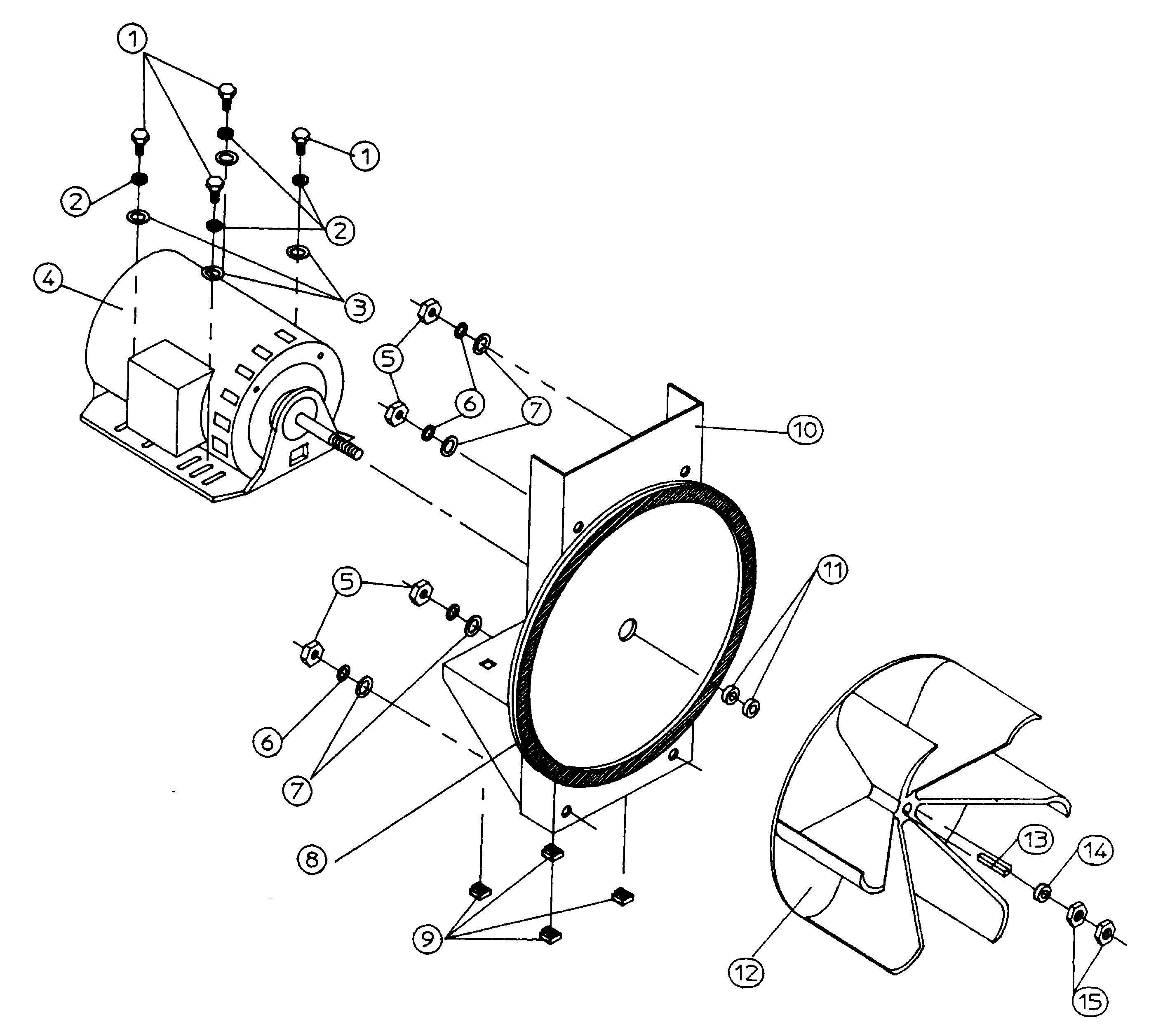

MDG100PN1L 11 – BLOWER MOTOR MOUNT ASSEMBLY
Written by
in
MDG100PN1L 11 – BLOWER MOTOR MOUNT ASSEMBLY
Products
| Position | Product |
|---|---|
| 001 | MAY A150501 |
| 004 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 004 | MAY A100028 |
| 005 | MAY A152004 |
| 006 | MAY A153002 |
| 007 | MAY A153001 |
| 008 | MAY A117600 |
| 009 | MAY A154000 |
| 010 | MAY A803899 |
| 010 | MAY A800907 |
| 012 | MAY A100607 |
| 013 | MAY A100702 |
| 014 | WASHER, FLAT (1/2“) QUANTITY AS REQUIRED |
| 015 | MAY A152006 |
