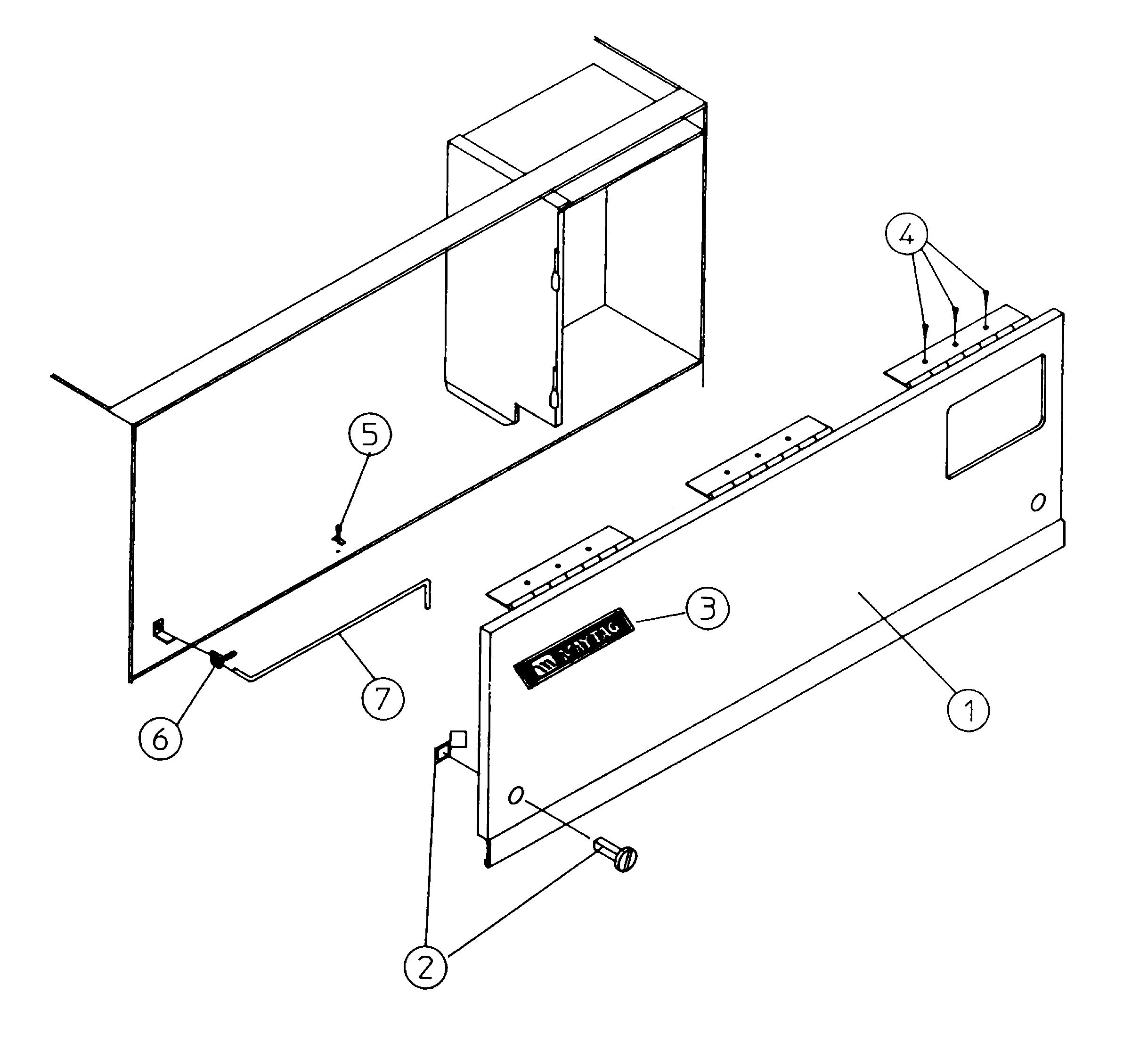

MDG100PN1W 01 – CONTROL DOOR ASSEMBLY

Written by

Products

Position	Product
000	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	MAY A80016
002	LATCH, SPRING TURN (2-PIECE) (CHECK LABEL ON COMPUTER CHIP
003	MAY A112343
003	MAY A870011
004	MAY A150415
005	MAY A102600
006	MAY A102601
007	MAY A102501
