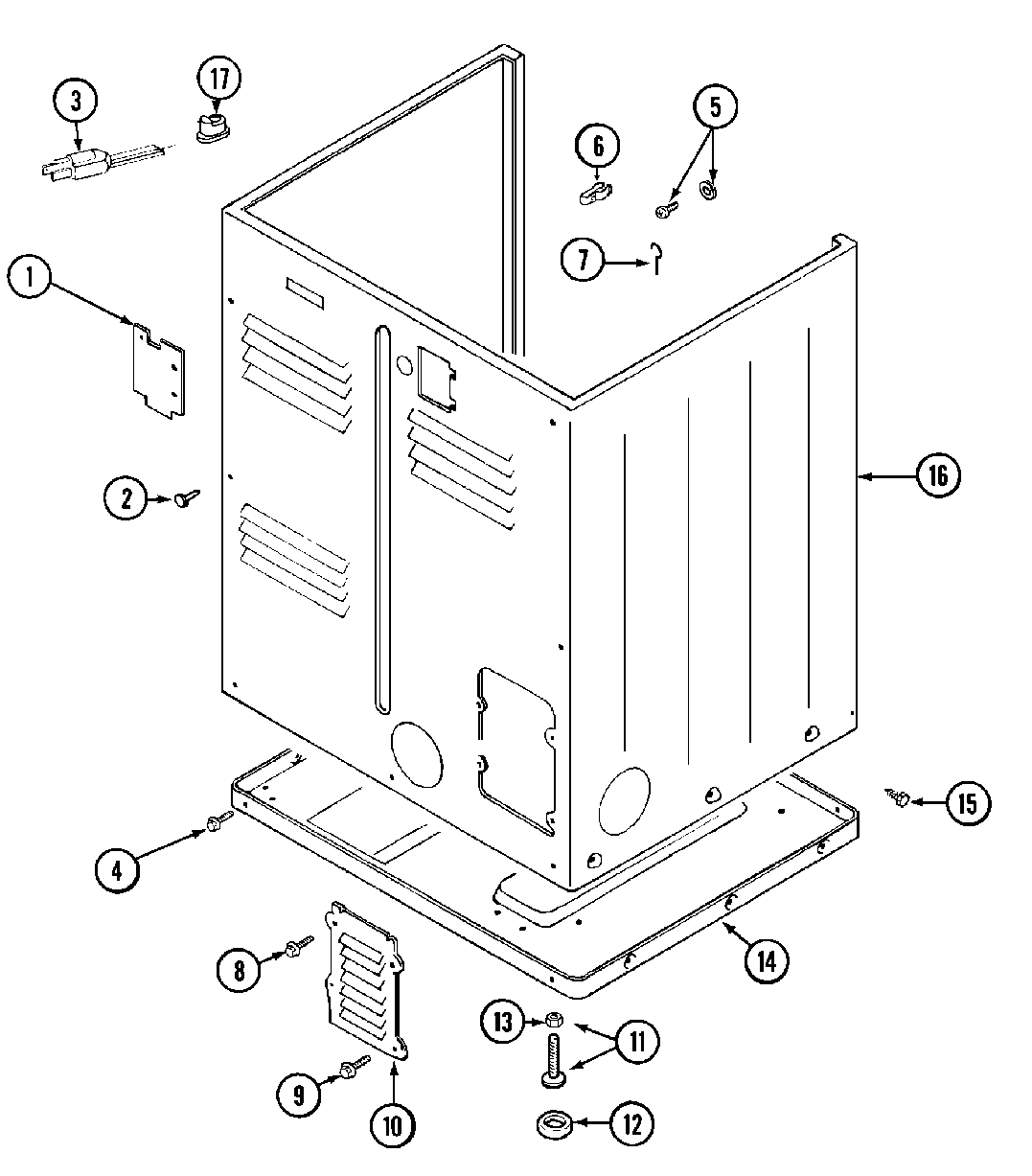

MDG10CSABL 05 – CABINET (REAR)

MDG10CSABL 05 – CABINET (REAR)

Written by

in

MDG10CSABL 05 – CABINET (REAR)

Products

PositionProduct
001MAY Y312905
003MAY 33001284
003MAY 210186
004MAY Y313561
004MAY Y310632
006MAY 301548
007MAY 204807
008MAY Y313559
009WP90767 Whirlpool Screw
010MAY Y312951
011W10176519 Whirlpool Leveling Feet
012WPY314137 Whirlpool Rubber Foot
013WP62739 Whirlpool Nut
014MAY Y303361
015213007 Whirlpool Screw #12
016DOWEL PIN FOR HANDLE
017GROMMET
