MDG10CSEGW 01 – CONTROL PANEL

MDG10CSEGW 01 – CONTROL PANEL

Written by

in

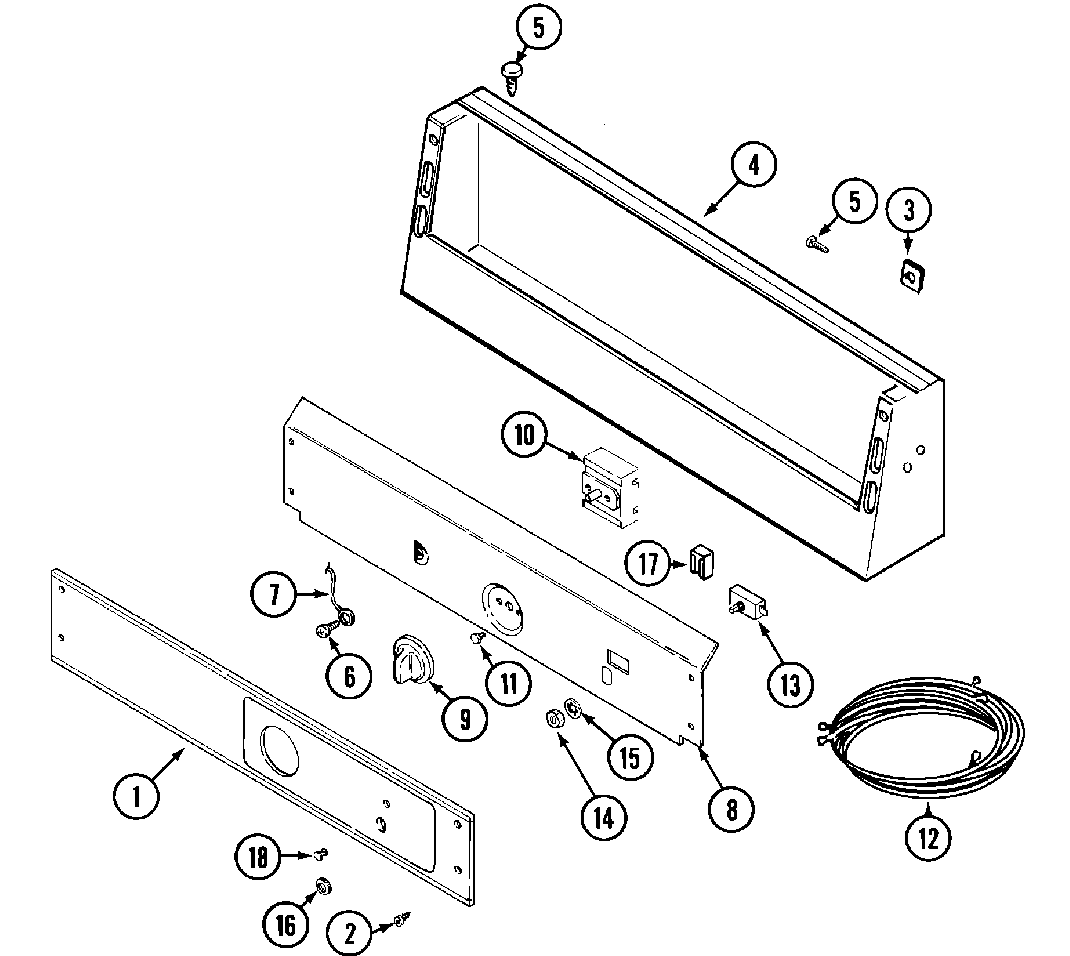

MDG10CSEGW 01 – CONTROL PANEL

Products

PositionProduct
001MAY 33001022
002WPW10131119 Whirlpool Screw
003MAY 215003
005MAY 212276
006WP489399 Whirlpool Refrigerator Screw
006MAY Y313559
007MAY 205810
008BACK-UP PLATE – WHITE
008DOWEL PIN FOR HANDLE
009MAY 306938
010WPW10327105 Whirlpool Cycle Switch
011WP488234 Whirlpool Air Conditioner Screw
012MAY 33001531
012MAY 33001029
013WPW10149462 Whirlpool Push-to-Start Switch
014MAY Y312706
015WPW10139799 Whirlpool Washer
016MAY Y312702
017W10139459 Whirlpool Light Assembly
018WP215564 Whirlpool Indicator Lens
