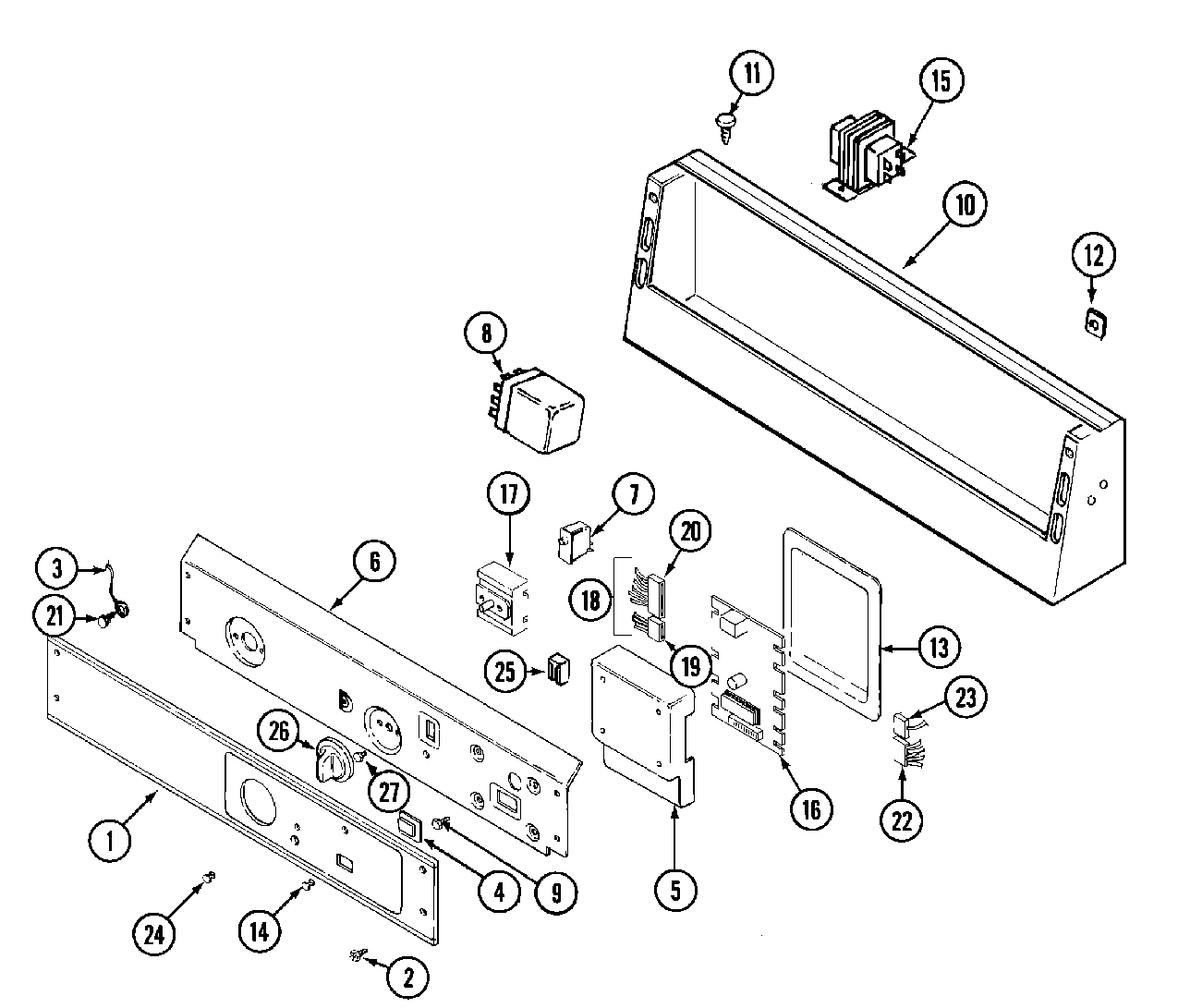

MDG10DAAAL 01 – CONTROL PANEL

Products

Position	Product
002	WPW10131119 Whirlpool Screw
003	MAY 205810
006	BRACKET, BACK (WHT)
008	WP3177991 Whirlpool Screw
009	MAY 312956
011	MAY 212276
012	MAY 215003
015	WP90767 Whirlpool Screw
017	WPW10327105 Whirlpool Cycle Switch
019	MAY 314529
021	WP489399 Whirlpool Refrigerator Screw
022	MAY 206799
022	DOWEL PIN FOR HANDLE
023	HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
023	MAY 22001361
024	WP215564 Whirlpool Indicator Lens
025	LIGHT, INDICATOR
026	MAY 306938
027	WP488234 Whirlpool Air Conditioner Screw
