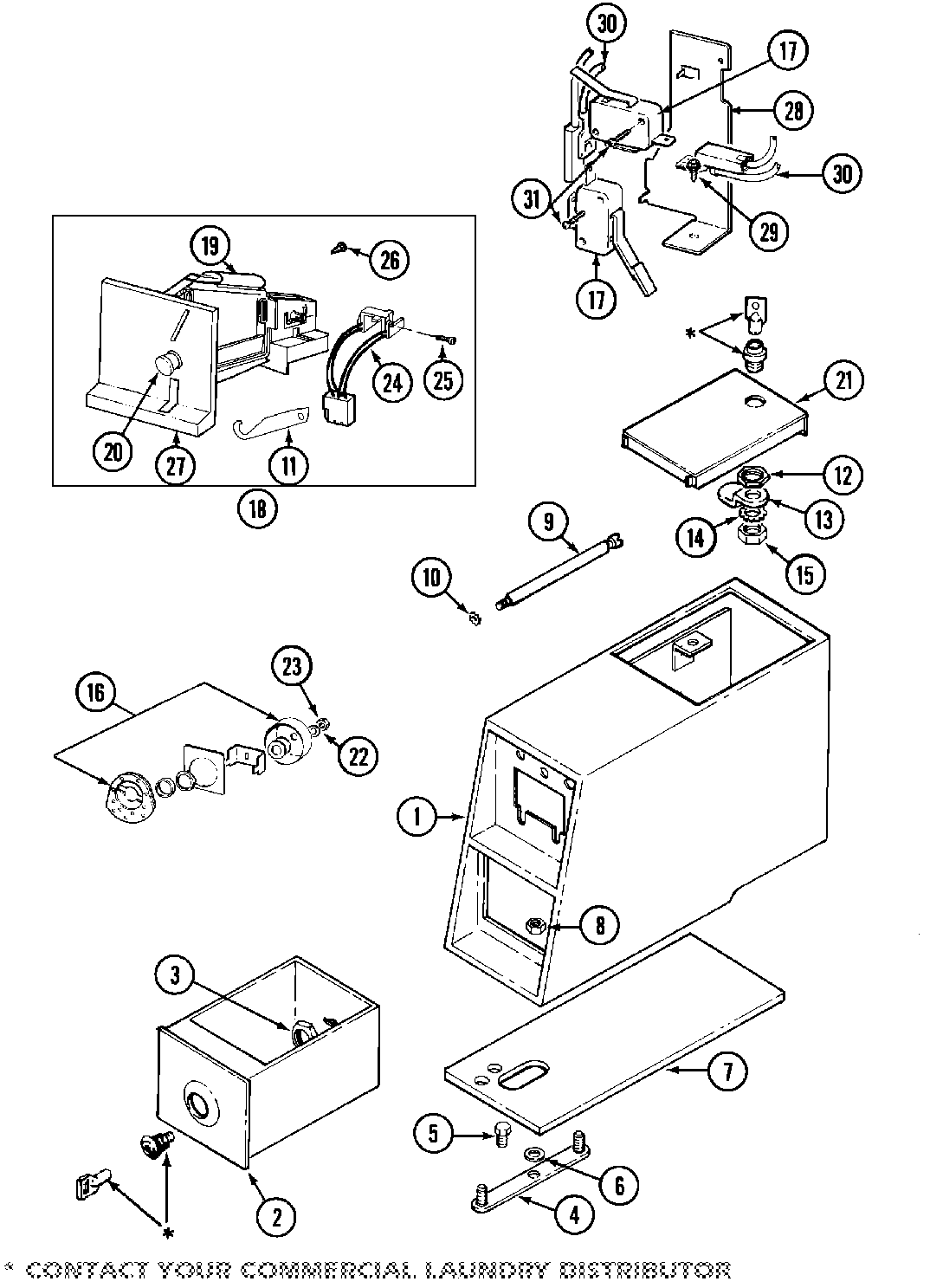

MDG10DAABL 02 – CONTROL CENTER

Products

Position	Product
001	(ALM)
001	MAY 207940
002	(ALM)
002	BOX, COIN (WHT)
005	WP90767 Whirlpool Screw
006	MAY 910309
007	MAY 214660
008	WP62739 Whirlpool Nut
009	MAY 213035
010	MAY 910181
011	MAY 216011
012	W11395752 Whirlpool Nut
013	W11165684 Whirlpool Cam
017	WPW10447152 Whirlpool VLT Switch
018	MAY 207948
019	MAY 207949
019	COIN REJECTOR (.25 CENTS)
020	MAY 216200
021	MAY 204216
021	MAY 204216L
022	LOCKWASHER, LOCK CAM
023	MAY 22001355
024	MAY 206799
025	WP3395530 Whirlpool Screw
026	MAY 216068
027	MTG. PLATE, SINGLE
029	DOWEL PIN FOR HANDLE
030	HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
031	MAY 912012
