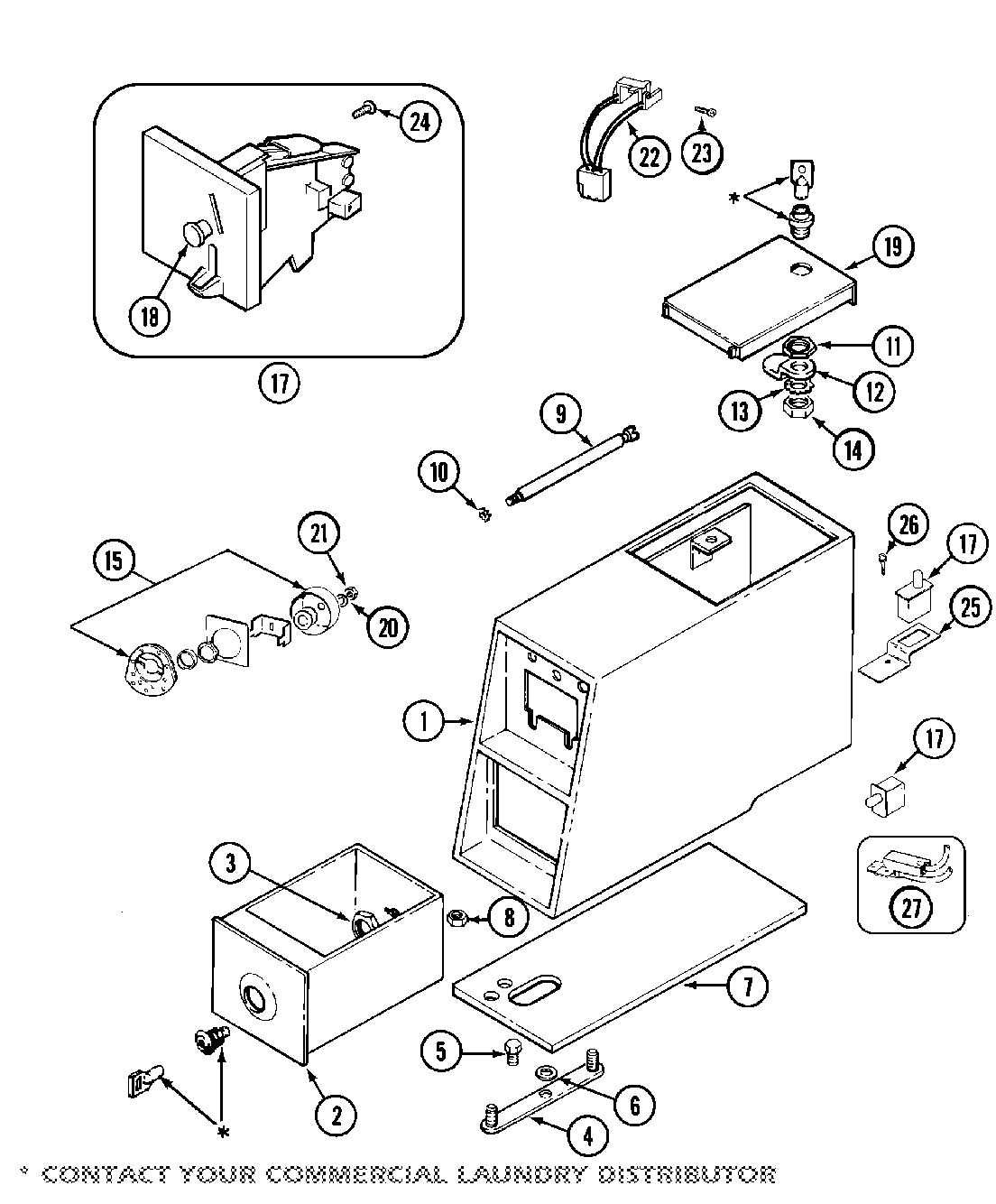

MDG10PDAAW 11 – CONTROL CNTR (SERIAL SUFFIX QB & AFTER)

Products

Position	Product
001	COIN METER CASE (WHT)
001	MAY 22001408
002	BOX, COIN (WHT)
002	(ALM)
005	WP90767 Whirlpool Screw
006	MAY 910309
007	MAY 214660
008	WP62739 Whirlpool Nut
009	MAY 213035
010	MAY 910181
011	W11395752 Whirlpool Nut
012	W11165684 Whirlpool Cam
016	MAY 912012
016	WPW10131838 Whirlpool Voltage Switch
017	DOWEL PIN FOR HANDLE
017	MAY 207948
017	MAY 22002143
018	MAY 216200
019	MAY 204216L
019	MAY 204216
020	LOCKWASHER, LOCK CAM
021	MAY 22001355
021	LOCKWASHER, DOUBLE “D“
022	MAY 206799
023	WP3395530 Whirlpool Screw
024	MAY 216068
025	MAY 22001404
026	MAY 212276
027	HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
