MDG10PDABL 05 – CABINET (REAR) – Aparts

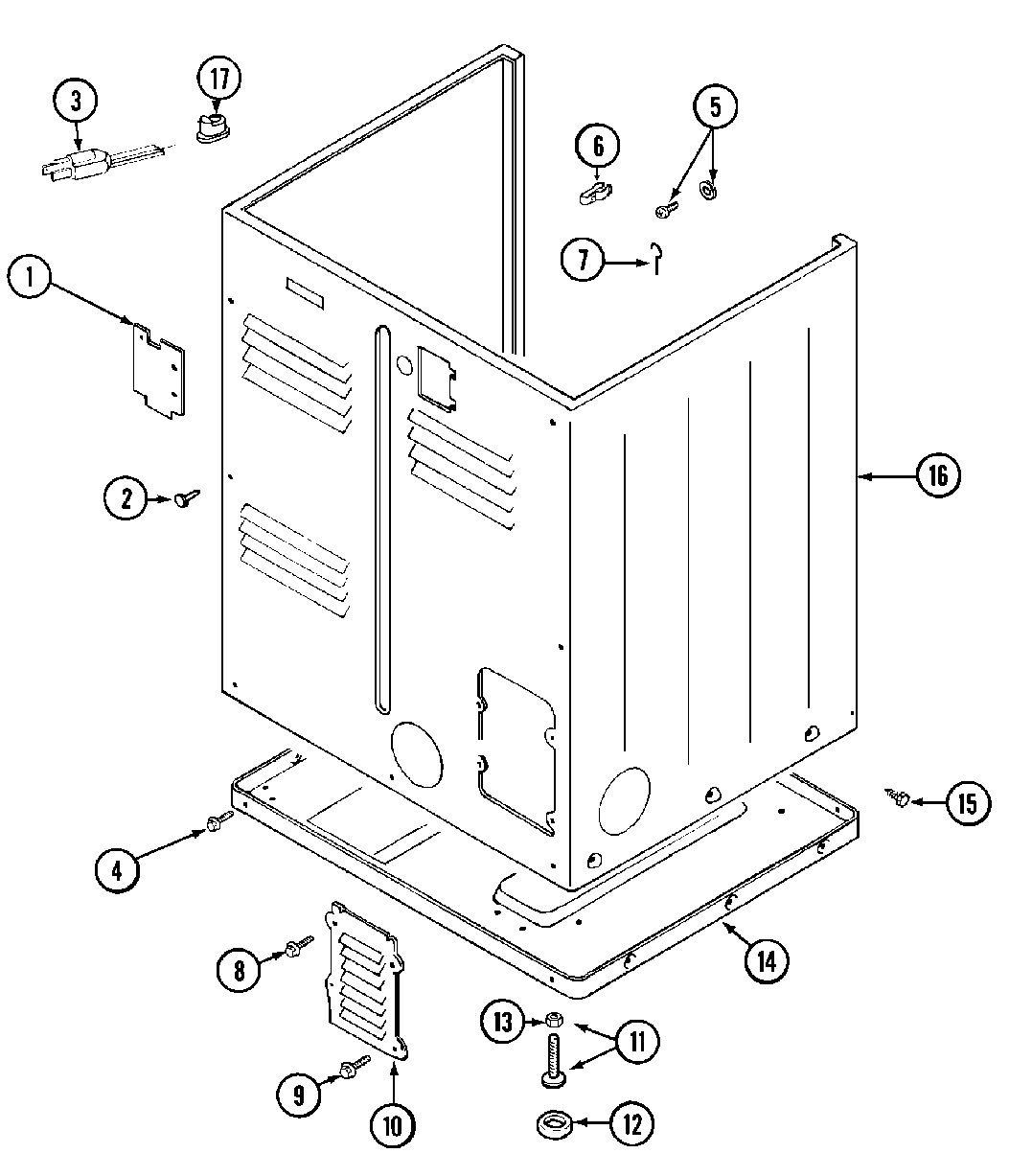

MDG10PDABL 05 – CABINET (REAR)

Products

Position	Product
001	MAY Y312905
003	MAY 33001246
003	MAY 210186
004	MAY Y313561
004	MAY Y310632
006	MAY 301548
007	MAY 204807
008	MAY Y313559
009	WP90767 Whirlpool Screw
010	MAY Y312951
011	W10176519 Whirlpool Leveling Feet
012	WPY314137 Whirlpool Rubber Foot
013	WP62739 Whirlpool Nut
014	MAY Y303361
015	213007 Whirlpool Screw #12
016	DOWEL PIN FOR HANDLE
017	GROMMET
