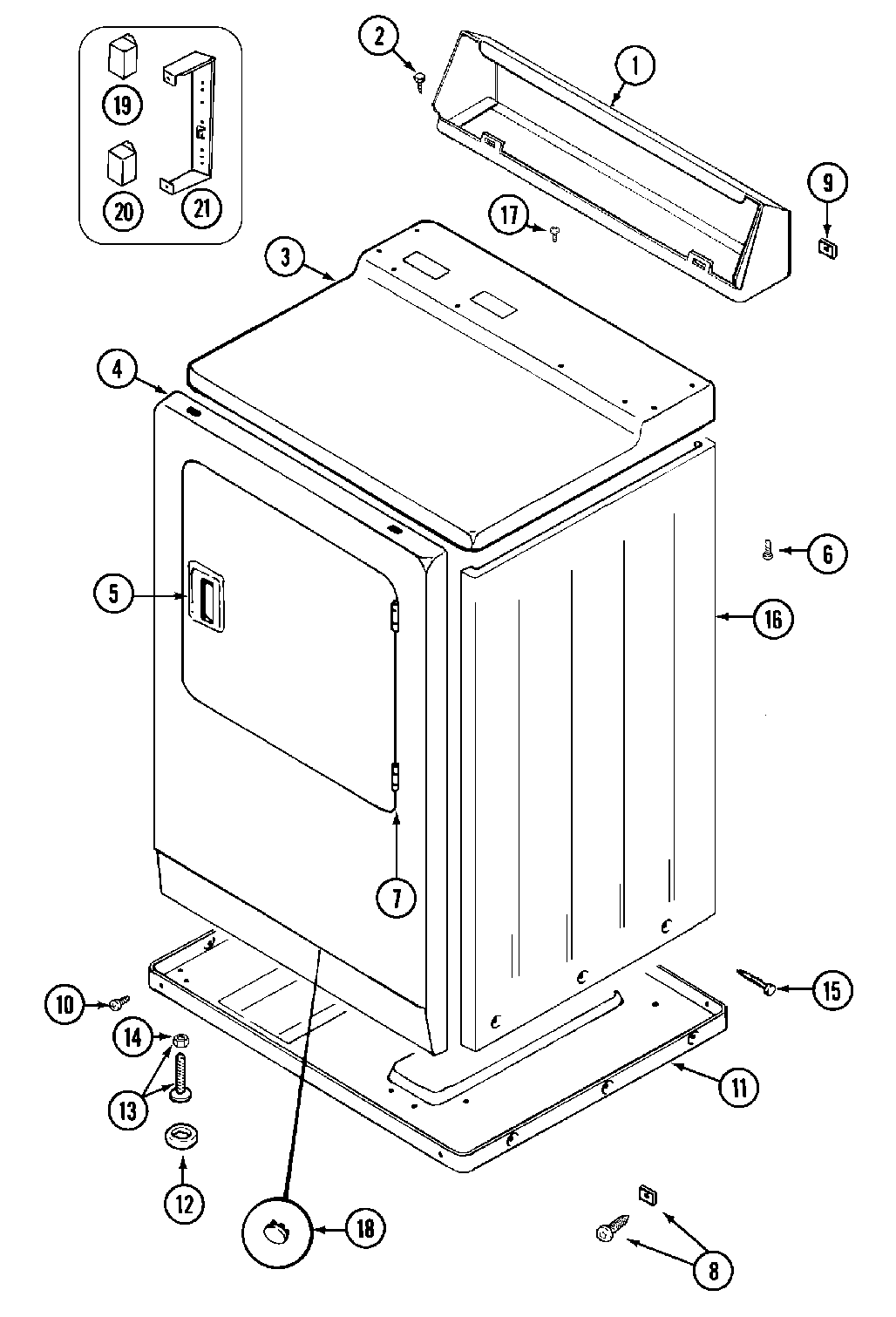

MDG10PDEGL 03 – CABINET-FRONT

MDG10PDEGL 03 – CABINET-FRONT

Written by

in

MDG10PDEGL 03 – CABINET-FRONT

Products

PositionProduct
002MAY 212276
003MAY 33001164
003MAY 33001163
005MAY 33001254
006MAY 214354
007MAY 33001230
008SCREW & FSTNER ASSY (FT. PNL)
009MAY 215075
011MAY Y303361
012WPY314137 Whirlpool Rubber Foot
013W10176519 Whirlpool Leveling Feet
014WP62739 Whirlpool Nut
015213007 Whirlpool Screw #12
016DOWEL PIN FOR HANDLE
017MAY 210186
018MAY 33001132
018MAY 33001168
019MAY 206421
020MAY 306398
021MAY 314627
021SCREW, BUSHINGS
021MAY Y310632
021MAY Y313561
021WP3177991 Whirlpool Screw
