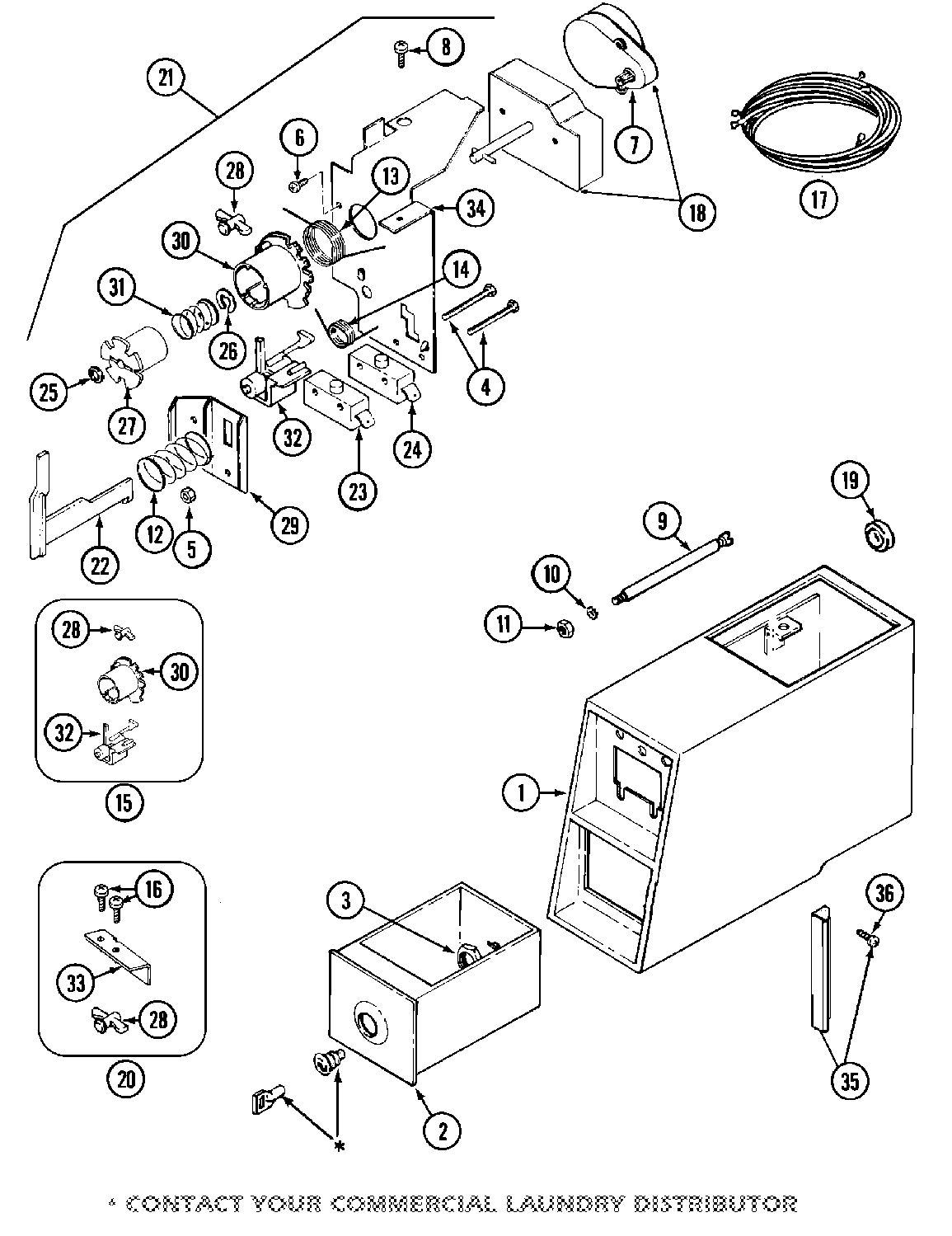

MDG11CSAAL 02 – CONTROL CENTER

Products

Position	Product
001	MAY Y307081
002	COIN BOX-ALMOND
002	COIN BOX-WHITE
003	W11395752 Whirlpool Nut
004	MAY 315277
005	MAY Y052634
006	MAY 910708
007	TIMER MOTOR RPR
008	WPW10139210 Whirlpool Screw
009	MAY 215559
010	MAY 910387
011	Y052721 Whirlpool Nut
014	MAY 314332
015	MAY 306104
016	W11684507 Whirlpool Screw
017	MAY 305800
018	MAY 305813
018	MAY 305796
019	MAY Y313671
020	Y308109 Whirlpool Slide & Adjuster Bracket
021	MAY 305797
022	33002968 Whirlpool Slider
023	MAY 305798
024	MAY Y305799
026	MAY Y312270
027	MAY 314330
028	TIME ADJUSTMENT PEG
028	MAY 314547
029	MAY 314339
030	MAY 314546
031	WP211065 Whirlpool Timer Spring
032	MAY 314548
033	BRACKET FOR COIN SLIDE
034	TIMER MOUNTING BRACKET
035	DOWEL PIN FOR HANDLE
036	MAY Y014872
