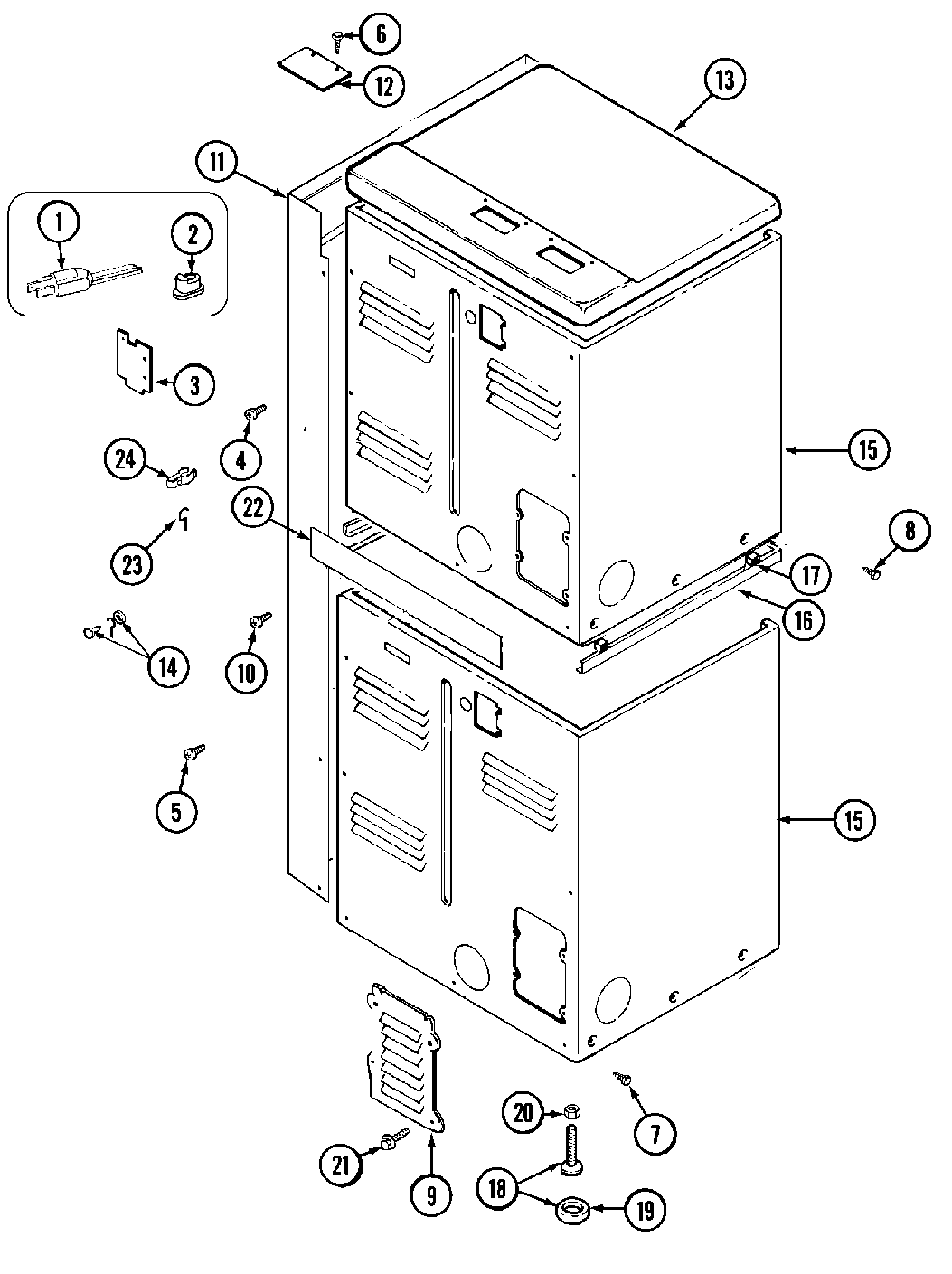

MDG11CSAAL 05 – REAR VIEW

Products

Position	Product
001	MAY 33001284
002	GROMMET
003	MAY Y312905
007	213007 Whirlpool Screw #12
009	WP90767 Whirlpool Screw
009	MAY Y313559
010	MAY Y313561
013	MAY 33001165
015	MAY Y310632
016	MAY 33001302
017	MAY 310933
018	LEG, ADJUSTABLE (W/NUT)—S
019	WP210684 Whirlpool Dishwasher Leveling Leg Pad
020	WP210385 Whirlpool Lock Nut
021	MAY Y312951
022	DOWEL PIN FOR HANDLE
023	WP311155 Whirlpool Wire Assembly
024	MAY 301548
