MDG11MNEGW 01 – CONTROL PANEL & SUPPORT ASSY.

MDG11MNEGW 01 – CONTROL PANEL & SUPPORT ASSY.

Written by

in

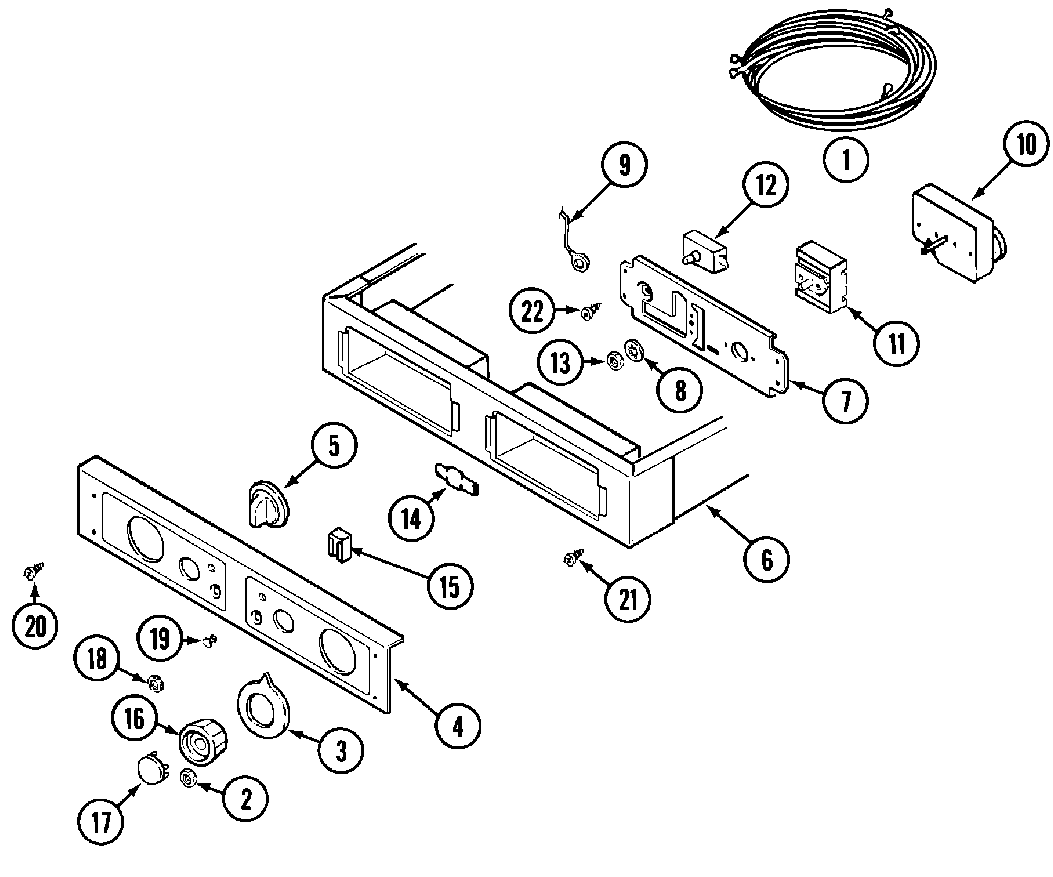

MDG11MNEGW 01 – CONTROL PANEL & SUPPORT ASSY.

Products

PositionProduct
001MAY 33001525
001MAY Y308499
001MAY 314522
001MAY 308515
002W10155650 Whirlpool Nut
003MAY 314725
003MAY 33001500
005MAY 205663
006MAY Y310632
008WPW10139799 Whirlpool Washer
009WP489399 Whirlpool Refrigerator Screw
009MAY 205810
009WPW10139210 Whirlpool Screw
010MAY Y307296
010MAY Y307496
011WPW10149462 Whirlpool Push-to-Start Switch
012MAY 307253
013MAY Y312706
014MAY Y201110
015DOWEL PIN FOR HANDLE
015LIGHT, INDICATOR
017WPW10133501 Whirlpool Cap
018MAY Y312702
019WP215564 Whirlpool Indicator Lens
020WPW10131119 Whirlpool Screw
021MAY 910186
022WP488234 Whirlpool Air Conditioner Screw
