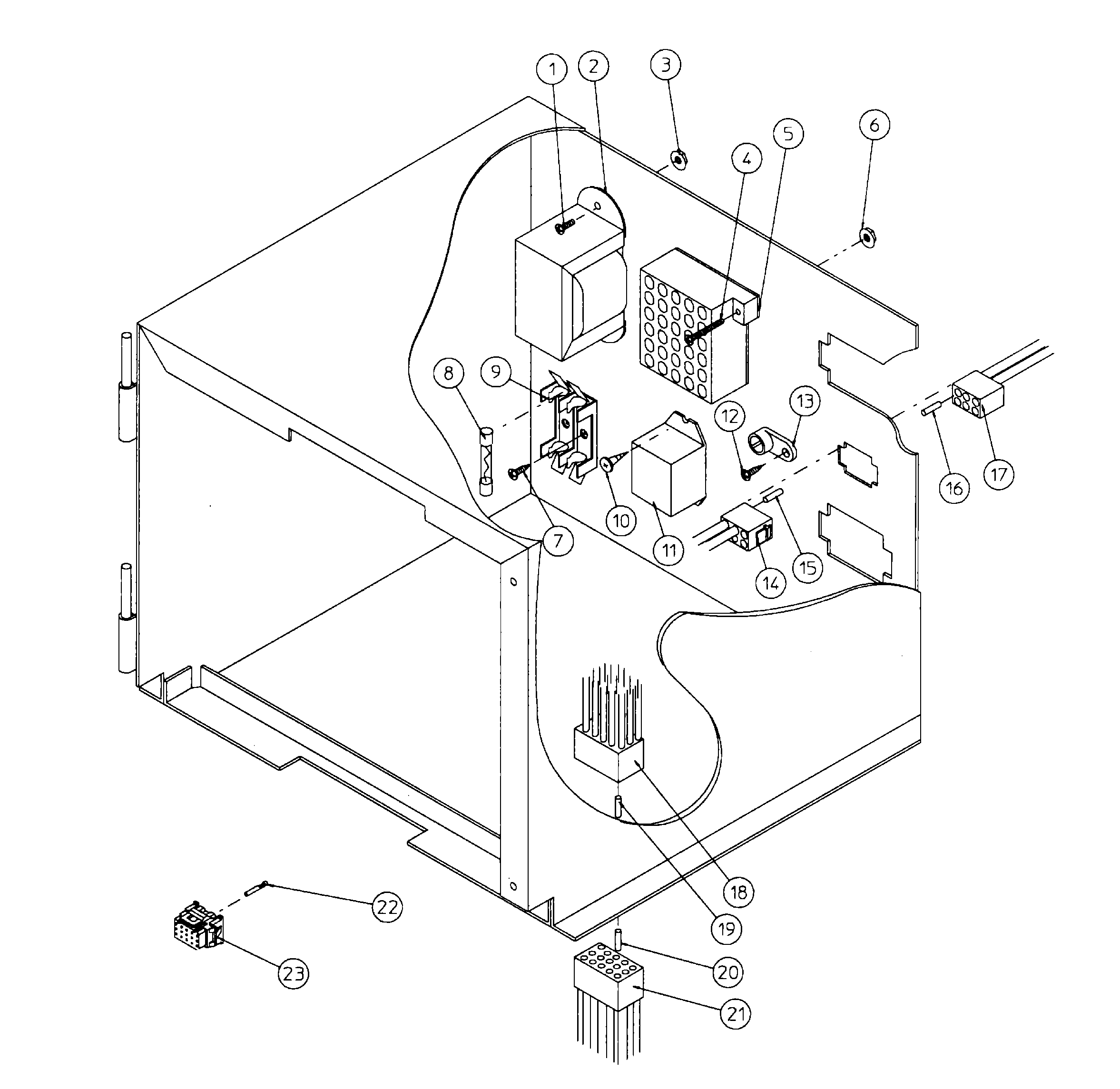

MDG120P1HW 02 – MICROPROCESSOR CONTROL BOX ASSY
Products
| Position | Product |
|---|---|
| 001 | MAY A150100 |
| 002 | MAY A141403 |
| 003 | MAY A151001 |
| 004 | MAY A150002 |
| 005 | MAY A120715 |
| 006 | MAY A151000 |
| 007 | MAY A150102 |
| 008 | MAY A136057 |
| 009 | MAY A136008 |
| 011 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 012 | SCREW, CRIMPTITE |
| 013 | MAY A121010 |
| 014 | MAY A122631 |
| 017 | MAY A122630 |
| 018 | MAY A137025 |
| 018 | MAY A122625 |
| 019 | MAY A122704 |
| 020 | MAY A122705 |
| 021 | MAY A122626 |
| 022 | SOCKETS (AS REQUIRED) |
| 023 | CONNECTOR, MICROPROCESSOR (15 PIN) |
| 024 | MAY A122800 |
| 024 | MAY A122801 |
