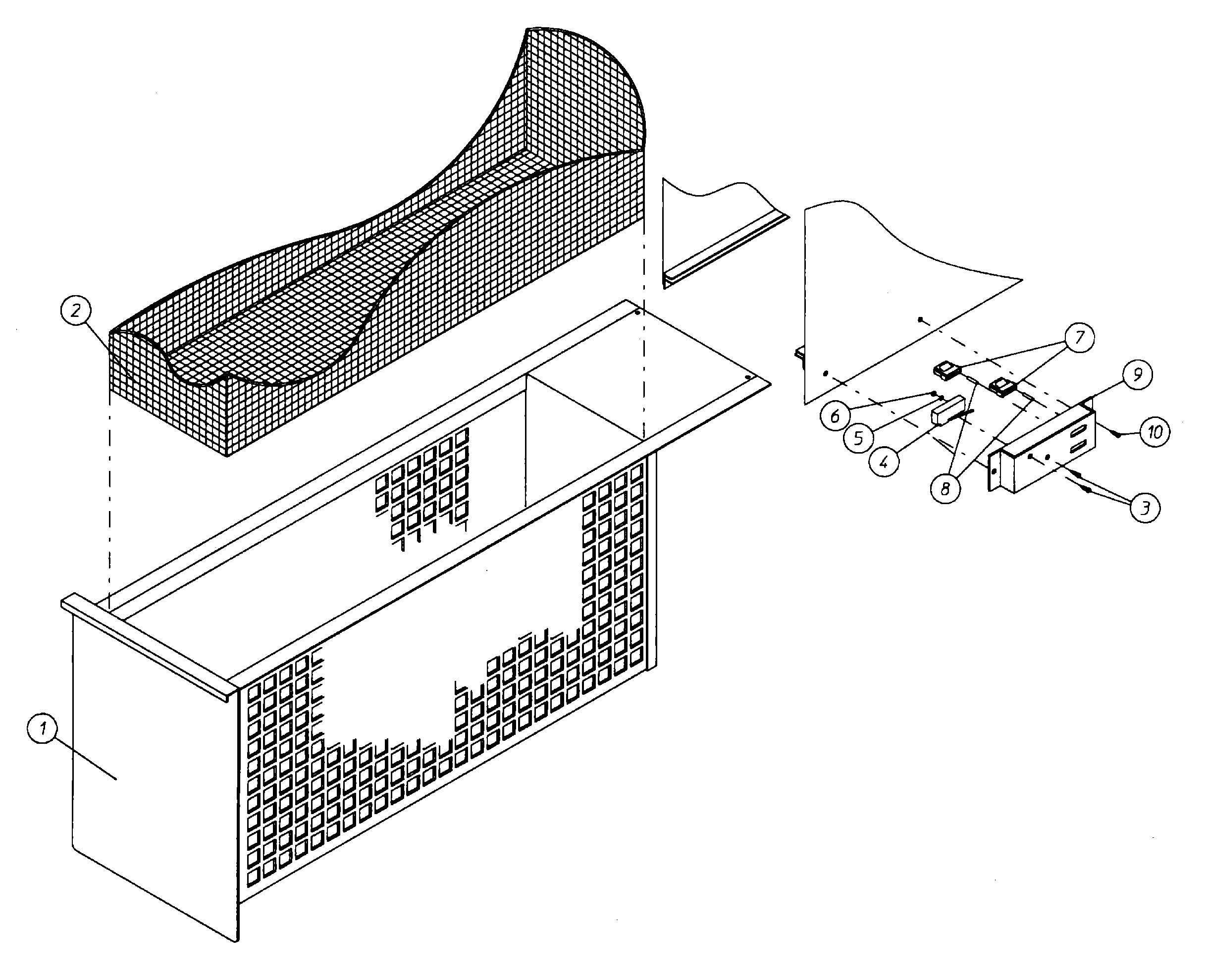

MDG120P1HW 05 – LINT DRAWER/LINT DRAWER SWITCH BOX ASSY.
Written by
in
MDG120P1HW 05 – LINT DRAWER/LINT DRAWER SWITCH BOX ASSY.
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A881173 |
| 001 | MAY A881141 |
| 002 | MAY A820017 |
| 003 | MAY A153562 |
| 004 | MAY A136992 |
| 005 | MAY A153010 |
| 006 | MAY A152000 |
| 007 | MAY A122605 |
| 008 | MAY A122701 |
| 008 | MAY A122801 |
| 009 | MAY A821116 |
| 009 | MAY A821119 |
| 010 | SCREW, CRIMPTITE |
