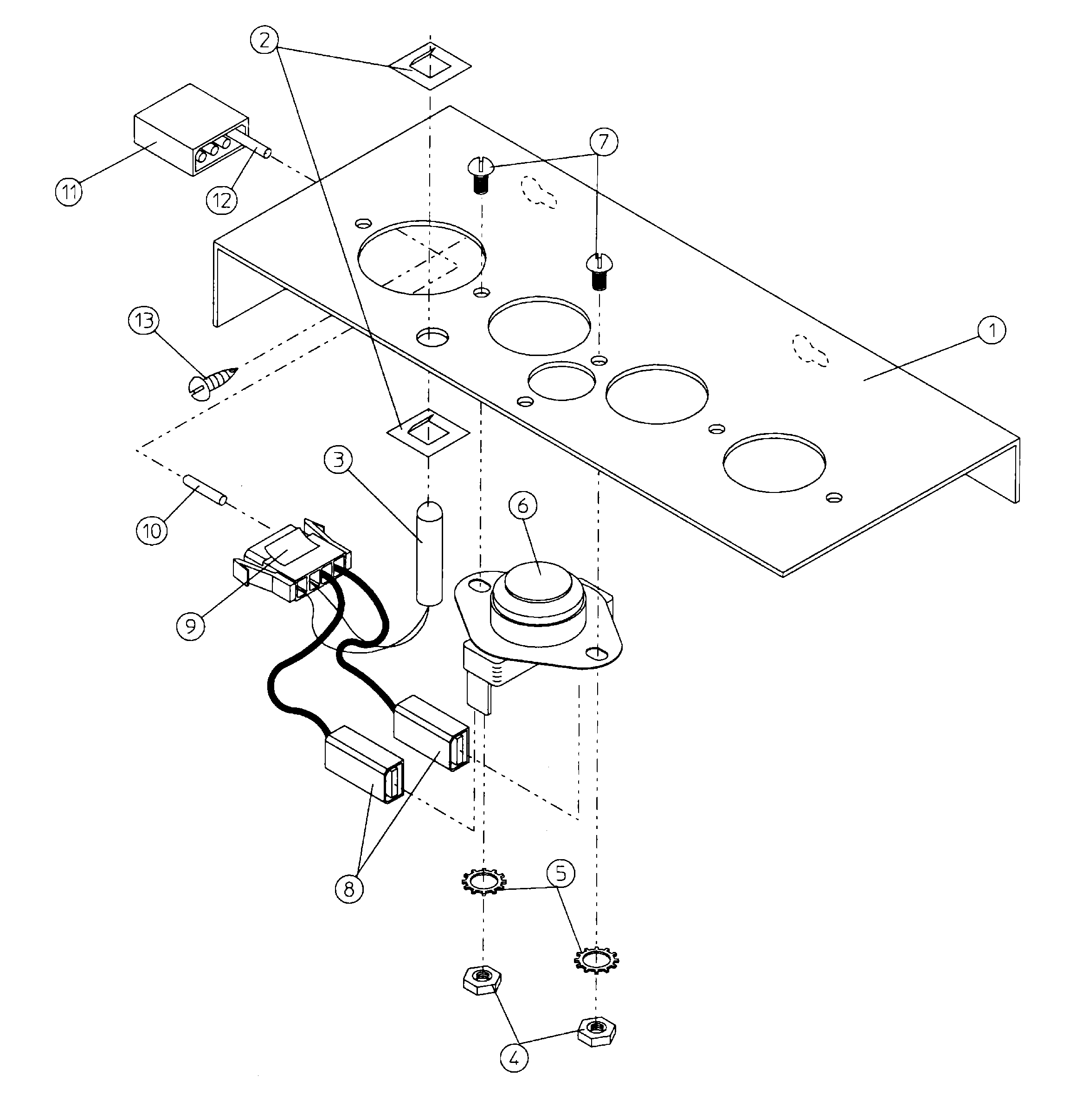

MDG120P1HW 07 – MICROPROCESSOR TEMP SENSOR BRKT ASSY

Products

PositionProduct
000NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001BRACKET, TEMPERATURE SENSOR
001BRACKET, TEMPERATURE SENSOR
002MAY A154007
003PROBE ASSY., TEMP. (1/4“)
004MAY A152000
005MAY A153010
006THERMOSTAT, AUTOMATIC (ONLY)
007MAY A150000
008MAY A121028
009MAY A122605
010MAY A122701
011MAY A122604
012MAY A122801
012MAY A122700
013MAY A150301
