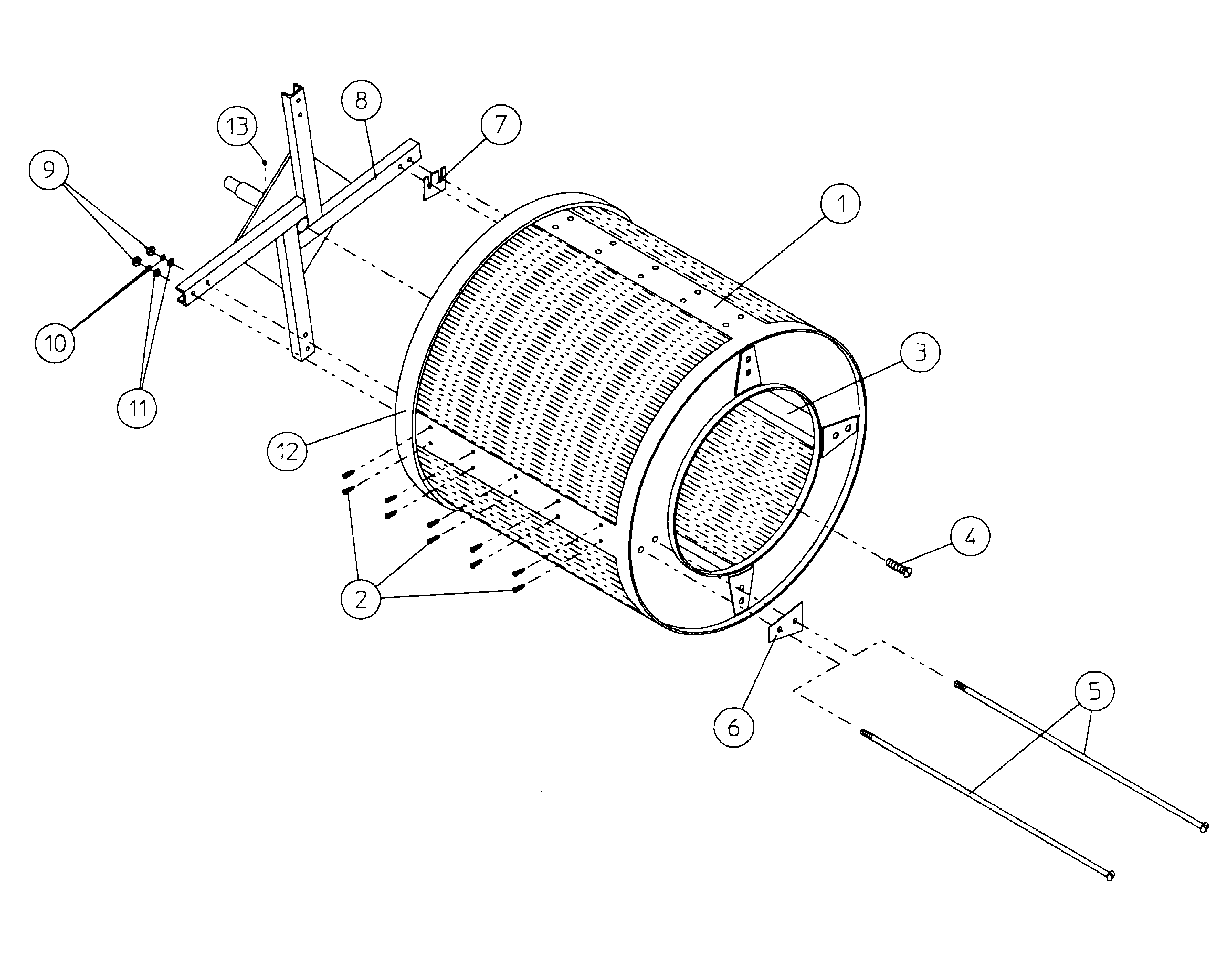

MDG120P1HW 08 – BASKET (TUMBLER) SUPPORT ASSEMBLIES

Products

PositionProduct
000NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001TUMBLER (ONLY) W/O FELT COLLAR
001TUMBLER & SUPPORT ASSY.
001MAY A820111
001MAY A820030
001MAY A820029
001MAY A820020
002SCREW, CRIMPTITE
003RIB, TUMBLER (ONLY)
003MAY A331105
004MAY A150500
005MAY A100910
006MAY A301700
007SHIM, TUMBLER
008SUPPORT, TUMBLER (ONLY)
008MAY A820115
009MAY A152011
010MAY A153026
011MAY A153011
012MAY A401010
012MAY A116006
013HOLDER, ROTATIONAL MAGNET
