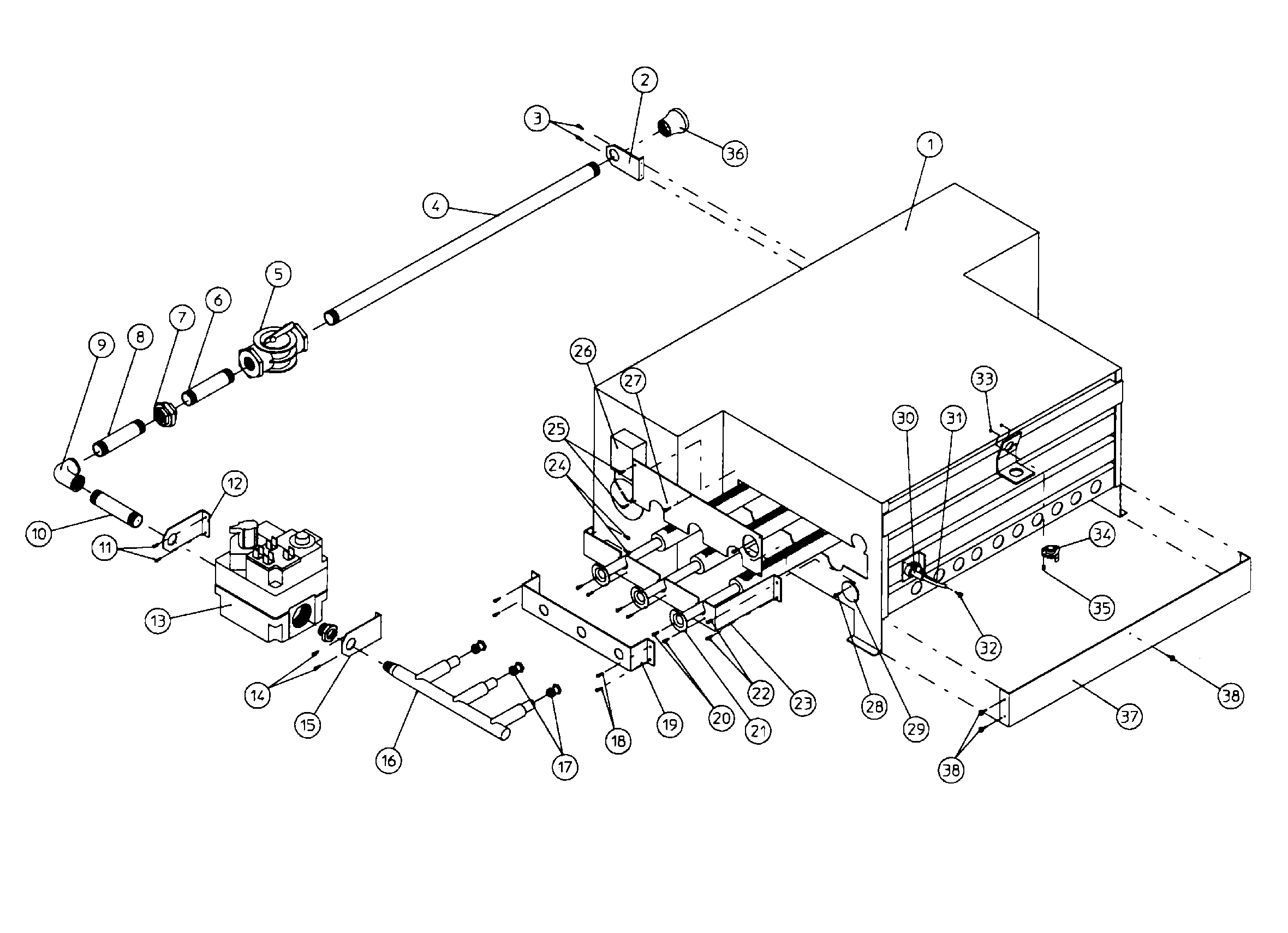

MDG120P1HW 14 – DIRECT SPARK IGNITION (DSI) BURNER ASSY.

MDG120P1HW 14 – DIRECT SPARK IGNITION (DSI) BURNER ASSY.

Written by

in

MDG120P1HW 14 – DIRECT SPARK IGNITION (DSI) BURNER ASSY.

Products

PositionProduct
001BURNER ASSEMBLY (NAT. GAS)
001MAY A820201
001BURNER ASSEMBLY (L.P.)
003MAY A150415
004MAY A142854
004MAY A142807
004MAY A142813
005MAY A141300
006MAY A142701
007MAY A142601
008MAY A142710
009MAY A142504
010MAY A142734
013VALVE, REDUNDANT
013MAY A140411
015MAY A331291
016MAY A141208
017MAY A140819
017ORIFICE, BURNER (ONLY)
019MAY A331288
021MAY A881492
023MAY A331287
026NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
027MAY A331289
029DISC, IGNITOR/FLAME PROBE
030DSI IGNITER GAP FEELER GAUGE
030IGNITER/FLAME PROBE ASSY. KIT
031CONNECTOR ASSEMBLY W/HV WIRE
033MAY A151000
034HI-LIMIT (330 DEG.)
034MAY A130401
035MAY A150001
036COUPLING, REDUCING
037BAFFLE, BURNER KIT (ONLY)
038SCREW, CRIMPTITE
039CONVERSION KIT
