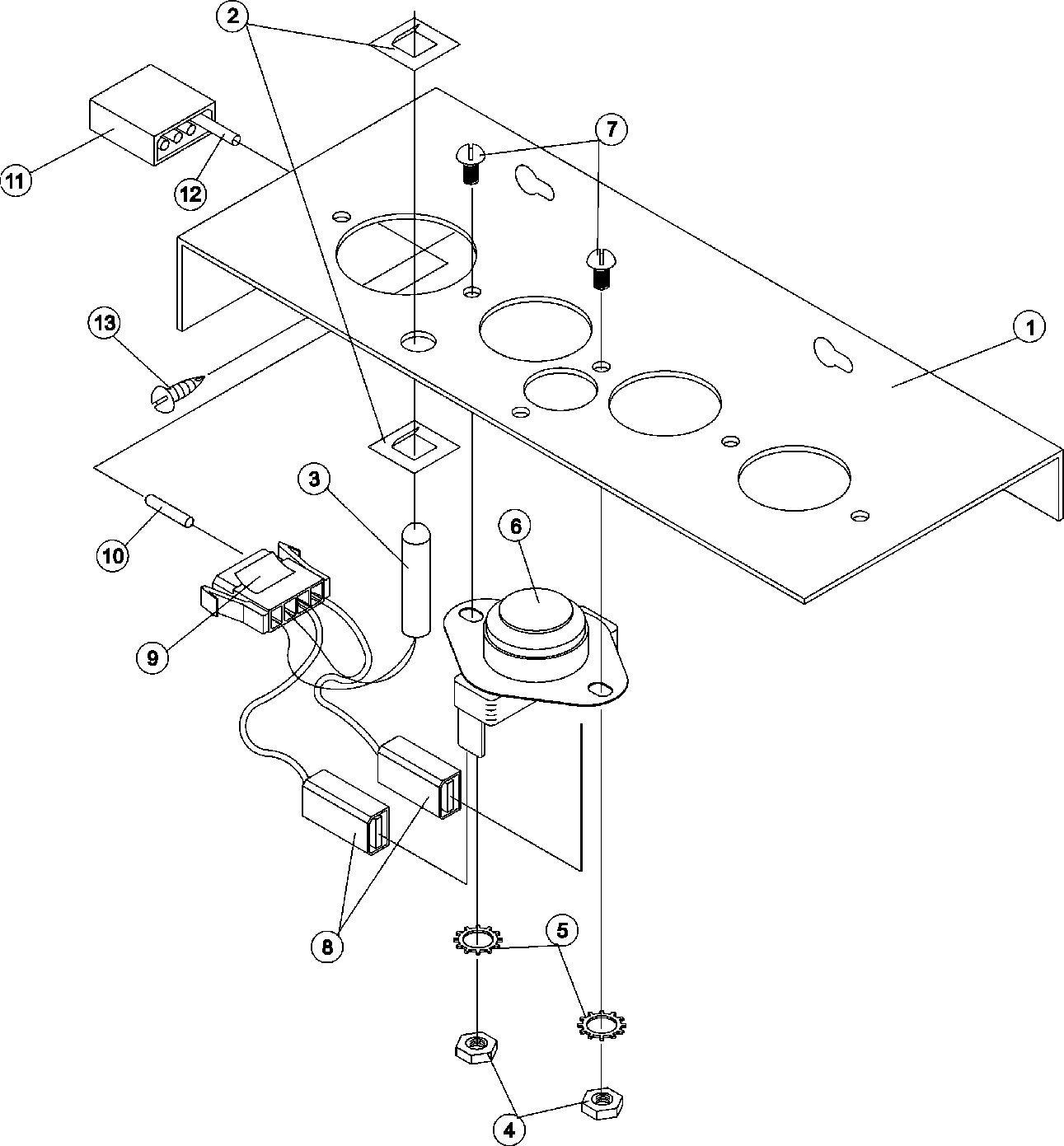

MDG120PHVW 08 – TEMPERATURE SENSOR BRACKET

MDG120PHVW 08 – TEMPERATURE SENSOR BRACKET

Written by

in

MDG120PHVW 08 – TEMPERATURE SENSOR BRACKET

Products

PositionProduct
000ORDER PART FROM AMERICAN DRYER No.508-678-9000
001BRACKET, TEMPERATURE SENSOR
001BRACKET, TEMPERATURE SENSOR
002MAY A154007
003PROBE ASSY., TEMP. (1/4“)
004MAY A152000
005MAY A153010
006THERMOSTAT, AUTOMATIC (ONLY)
007MAY A150000
008MAY A121028
009MAY A122605
010MAY A122701
011MAY A122604
012MAY A122801
012MAY A122700
013MAY A150301
