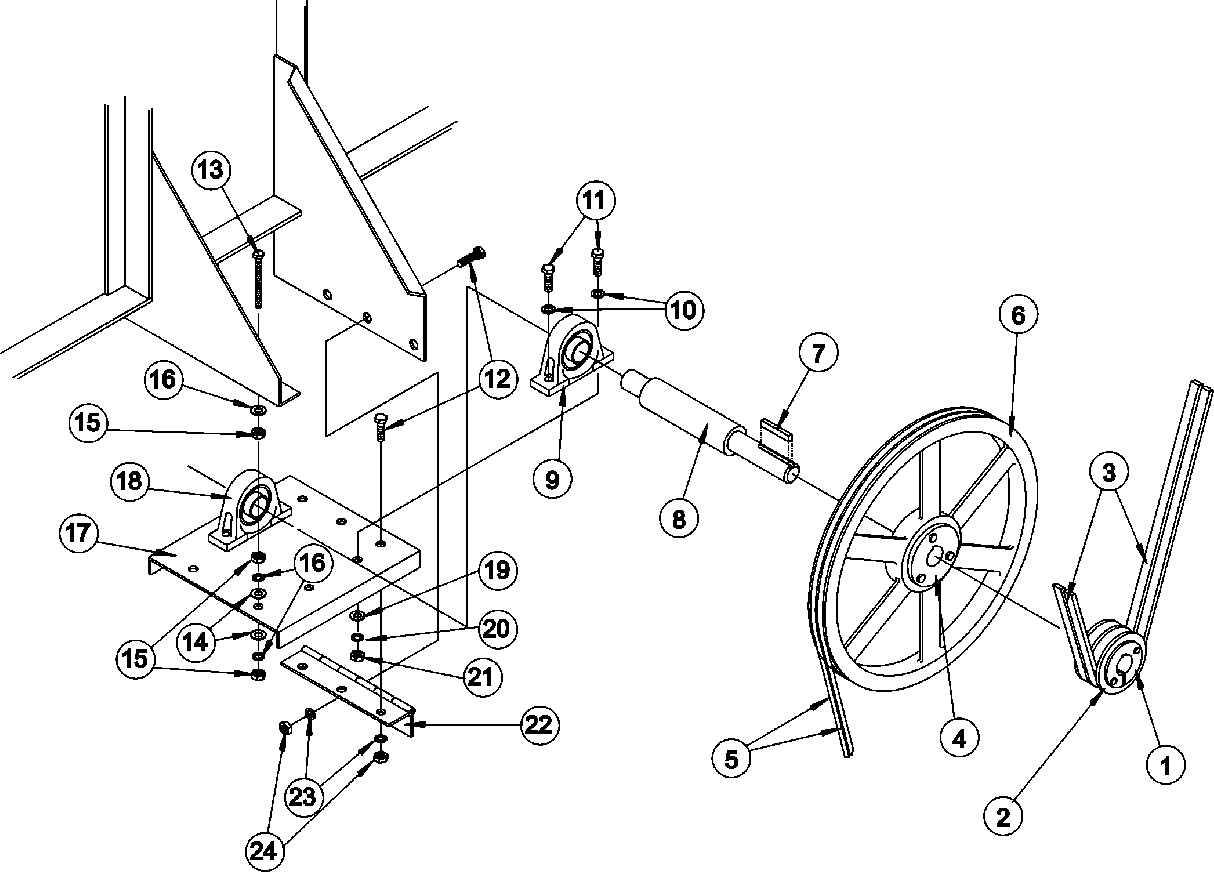

MDG120PHVW 11 – IDLER BEARING MOUNT
Products
| Position | Product |
|---|---|
| 000 | ORDER PART FROM AMERICAN DRYER No.508-678-9000 |
| 001 | MAY A101110 |
| 002 | MAY A101113 |
| 003 | BELT, V |
| 004 | MAY A101107 |
| 005 | BELT, V (3V-710) |
| 006 | MAY A101112 |
| 007 | MAY A100715 |
| 008 | MAY A301852 |
| 011 | MAY A150600 |
| 012 | MAY A150512 |
| 013 | MAY A150509 |
| 014 | MAY A153001 |
| 015 | MAY A152004 |
| 016 | MAY A153002 |
| 017 | MAY A311401 |
| 017 | MAY A801001 |
| 018 | BEARING, PILLOW BLOCK (ONLY) |
| 019 | MAY A153004 |
| 020 | MAY A153005 |
| 021 | MAY A152005 |
| 022 | MAY A103005 |
| 023 | MAY A153007 |
| 024 | MAY A152002 |
