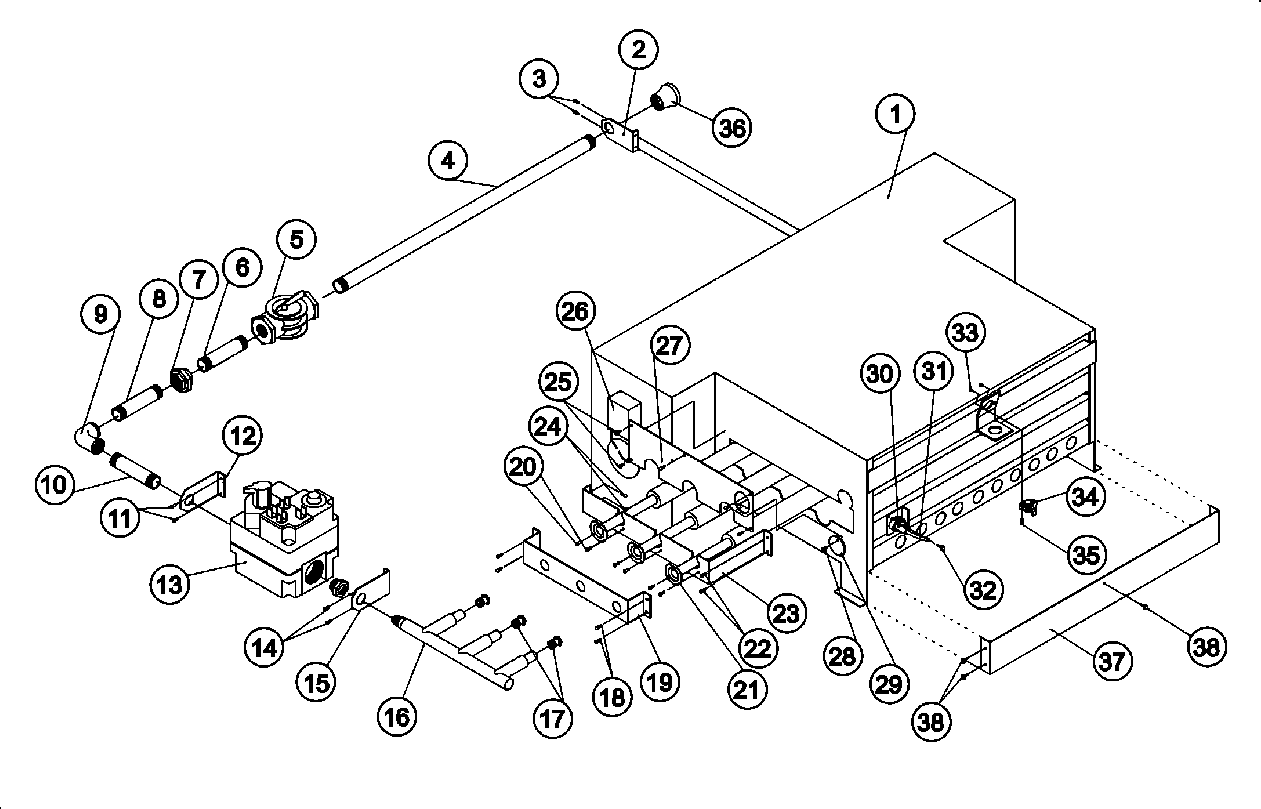

MDG120PHVW 14 – DSI BURNER ASSEMBLY

Products

Position	Product
000	ORDER PART FROM AMERICAN DRYER No.508-678-9000
001	MAY A820201
001	CONVERSION KIT
001	BURNER ASSEMBLY (L.P.)
001	BURNER ASSEMBLY (NAT. GAS)
004	MAY A142813
005	MAY A141300
006	MAY A142701
007	MAY A142601
008	MAY A142710
009	MAY A142504
010	MAY A142734
013	MAY A140411
013	VALVE, REDUNDANT
015	MAY A331291
016	MAY A141208
017	MAY A140819
017	ORIFICE, BURNER (ONLY)
019	MAY A331288
021	MAY A141110
023	MAY A331287
026	BOX, SAIL SWITCH ASSY
027	MAY A331289
029	DISC, IGNITOR/FLAME PROBE
030	IGNITER/FLAME PROBE ASSY. KIT
030	DSI IGNITER GAP FEELER GAUGE
031	CONNECTOR ASSEMBLY W/HV WIRE
032	MAY A150413
033	MAY A151000
034	HI-LIMIT (330 DEG.)
035	MAY A150001
036	COUPLING, REDUCING
037	BAFFLE, BURNER KIT (ONLY)
038	SCREW, CRIMPTITE
