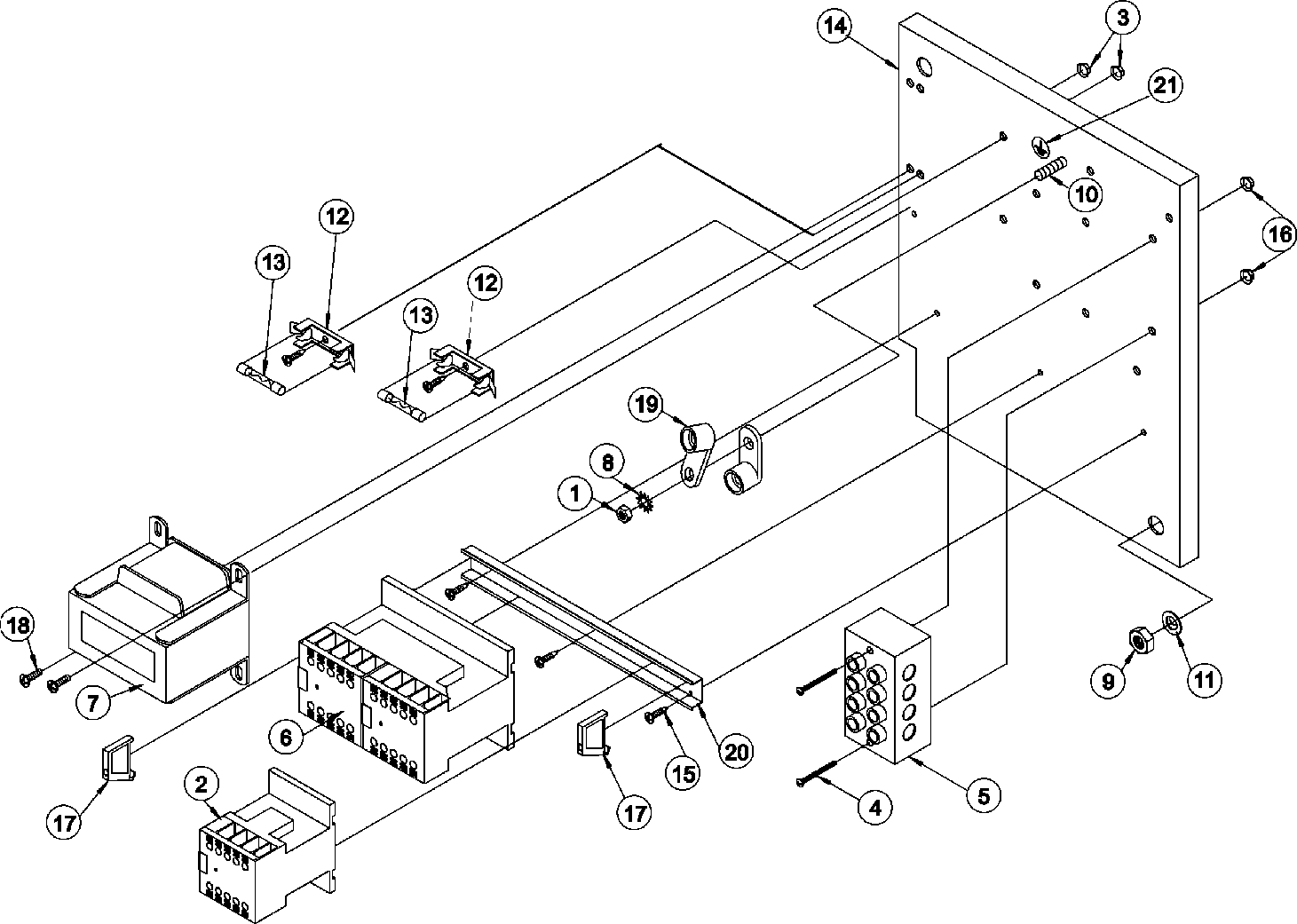

MDG120PHVW 15 – REVERSING PANEL (208-240V)
Products
| Position | Product |
|---|---|
| 000 | ORDER PART FROM AMERICAN DRYER No.508-678-9000 |
| 001 | MAY A152002 |
| 002 | MAY A132415 |
| 003 | MAY A151001 |
| 004 | MAY A150006 |
| 005 | BLOCK, POWER DISTRIBUTION |
| 006 | MAY A132497 |
| 007 | MAY A822764 |
| 008 | MAY A153021 |
| 009 | MAY A152004 |
| 010 | MAY A153525 |
| 011 | MAY A153002 |
| 012 | MAY A136008 |
| 013 | MAY A136057 |
| 014 | PANEL, RELAY/CONTACTOR (ONLY) |
| 015 | MAY A150301 |
| 016 | MAY A151000 |
| 017 | MAY A120765 |
| 018 | MAY A150108 |
| 019 | MAY A121010 |
| 020 | RAIL, DIN MOUNTING |
| 021 | MAY A112075 |
