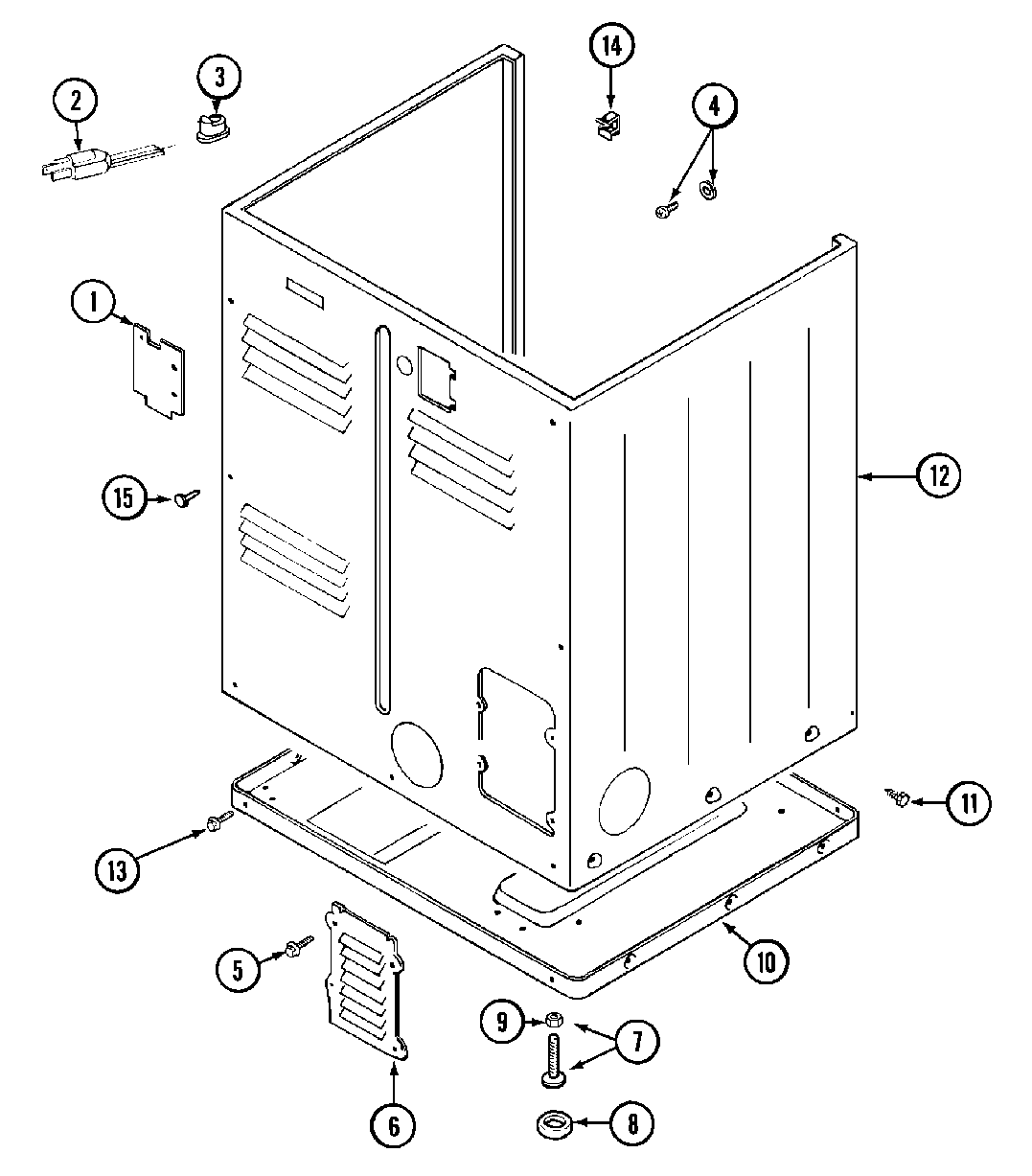

MDG12CSAAL 03 – CABINET-REAR
Products
| Position | Product |
|---|---|
| 001 | MAY Y312905 |
| 002 | MAY 33001284 |
| 003 | GROMMET |
| 005 | MAY 216423 |
| 006 | MAY Y312951 |
| 007 | MAY 204807 |
| 007 | W10176519 Whirlpool Leveling Feet |
| 008 | WPY314137 Whirlpool Rubber Foot |
| 009 | WP62739 Whirlpool Nut |
| 010 | MAY Y303361 |
| 011 | 213007 Whirlpool Screw #12 |
| 012 | DOWEL PIN FOR HANDLE |
| 013 | MAY Y310632 |
| 014 | MAY Y310376 |
| 015 | MAY Y313561 |
