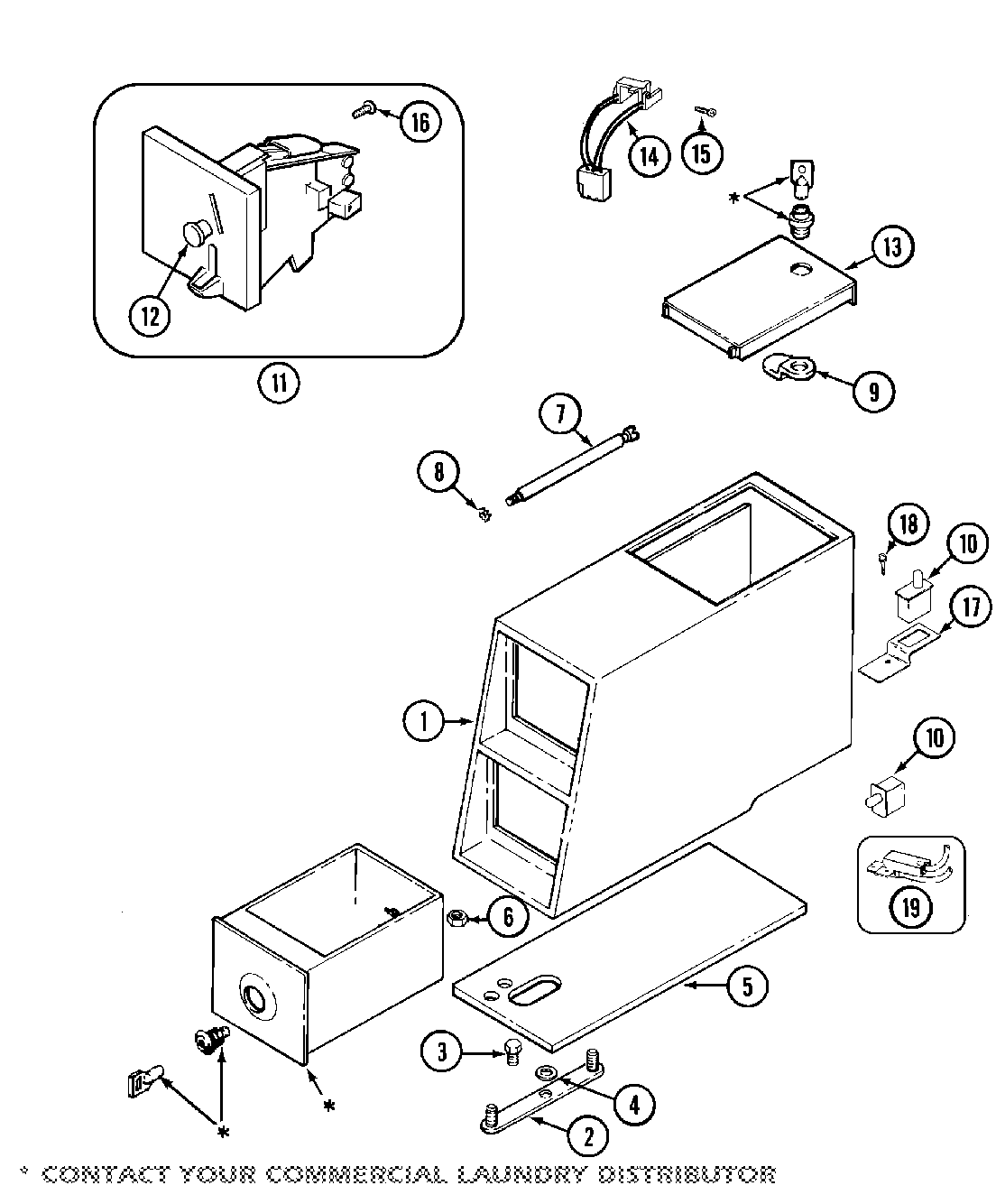

MDG12PDAAW 09 – CONTROL CENTER

Products

Position	Product
001	WP22002480 Whirlpool Case
002	MAY 22001810
003	WP90767 Whirlpool Screw
004	MAY 910309
005	MAY 22001870
005	MAY 22001874
006	WP62739 Whirlpool Nut
007	MAY 213035
008	MAY 910181
009	DOWEL PIN FOR HANDLE
010	MAY 912012
010	WPW10131838 Whirlpool Voltage Switch
011	MAY 22001875
011	WP22004112 Whirlpool Coin Drop
011	MAY 22002144
012	MAY 216200
013	(ALM)
013	MAY 22001910
014	MAY 206799
015	WP3395530 Whirlpool Screw
016	MAY 216068
017	MAY 22001404
018	MAY 212276
019	HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
