MDG12PRBAW 04 – CABINET-REAR

MDG12PRBAW 04 – CABINET-REAR

Written by

in

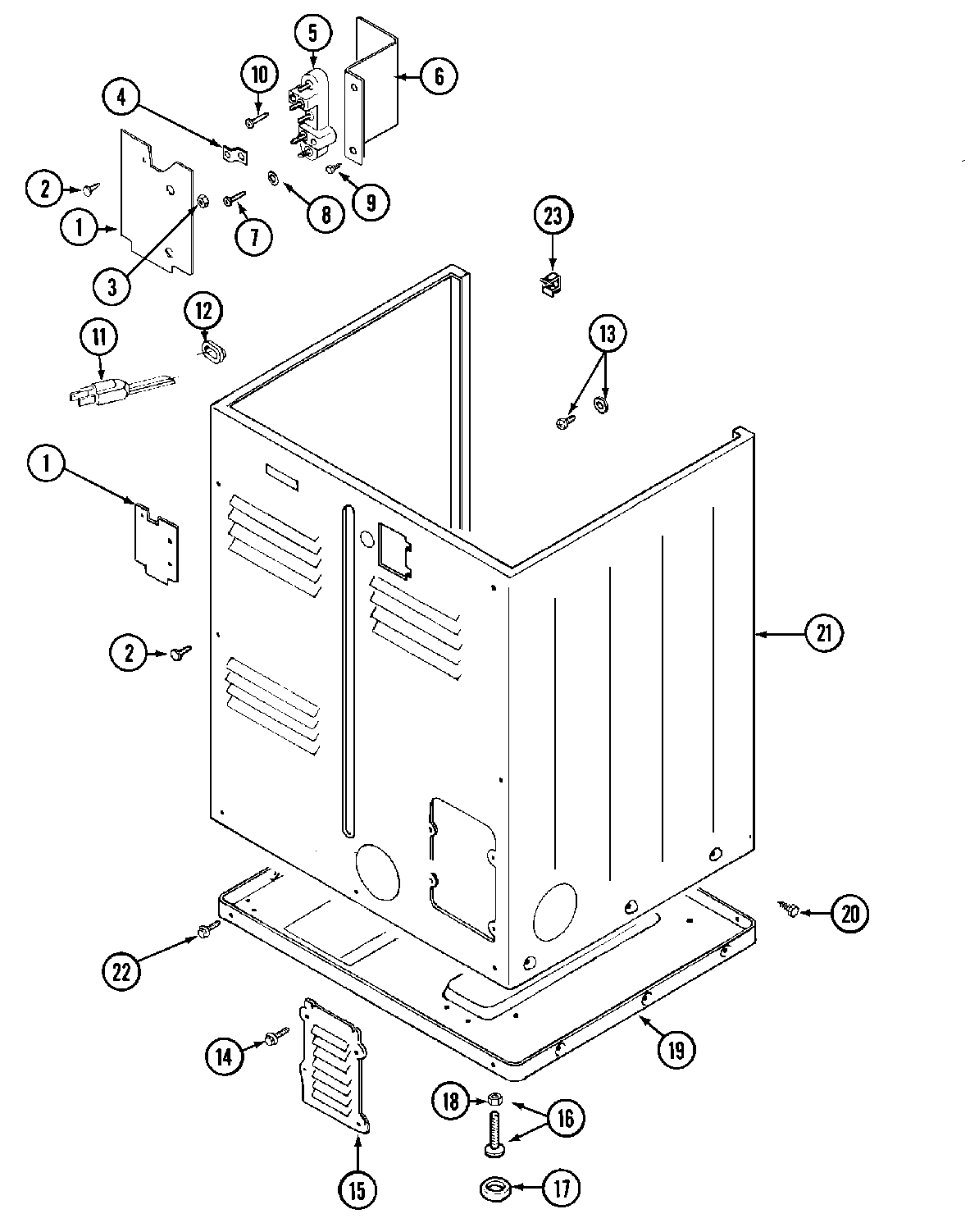

MDG12PRBAW 04 – CABINET-REAR

Products

PositionProduct
001MAY Y312905
003WP112432 Whirlpool Nut Assembly
004PART NOT USED
005W11705611 Whirlpool Block Ter
006PART NOT USED
007SCREW, No.10-24 X 3/4 INCH—–O
008WPY311270 Whirlpool Washer TE
011MAY 305168
011MAY 33001425
011CORD, POWER (GAS MODEL)
012GROMMET
014MAY 216423
015MAY Y312951
016W10176519 Whirlpool Leveling Feet
017WPY314137 Whirlpool Rubber Foot
018WP62739 Whirlpool Nut
019MAY Y303361
020213007 Whirlpool Screw #12
021DOWEL PIN FOR HANDLE
022MAY Y313561
022MAY Y310632
023MAY Y310376
