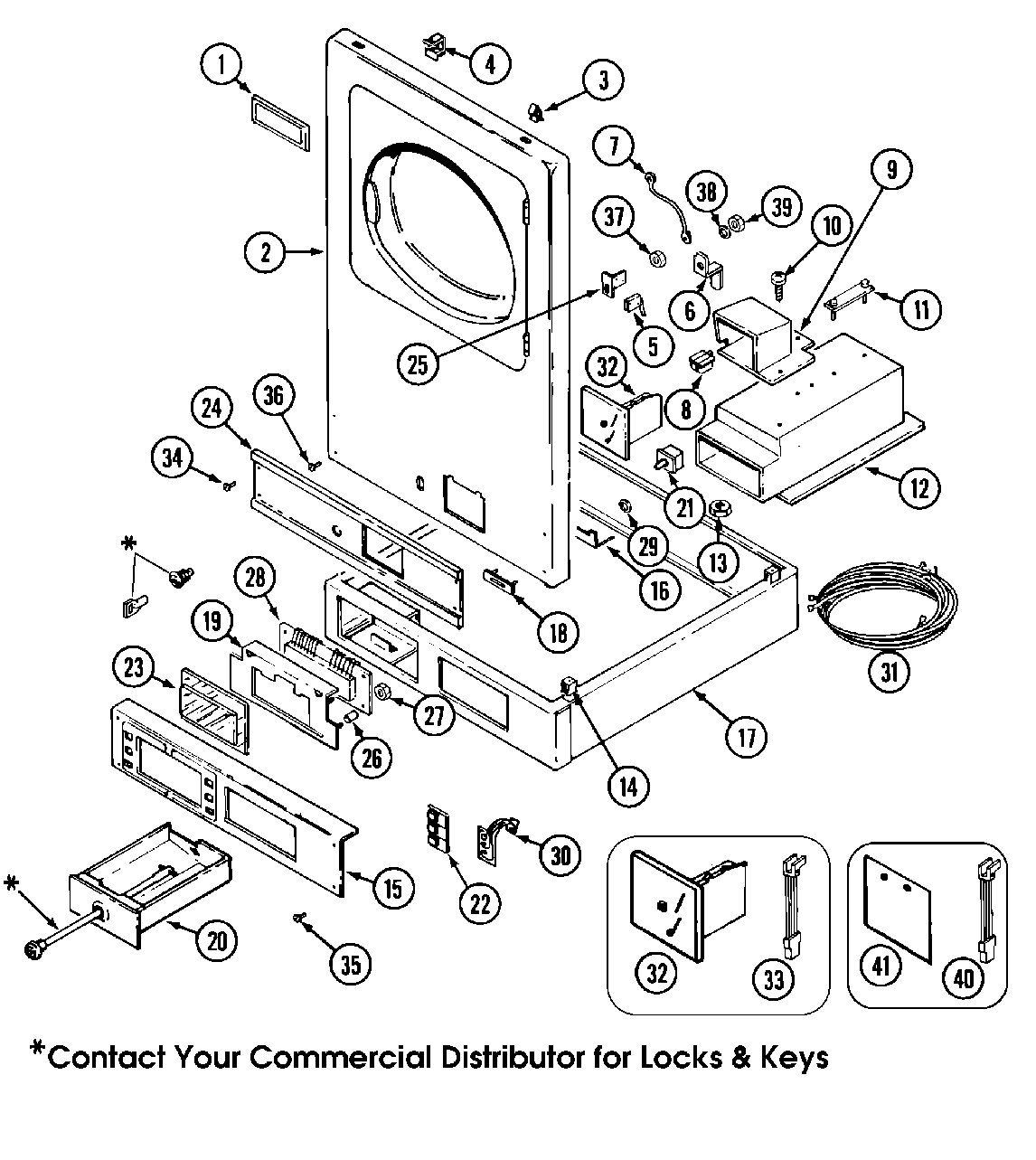

MDG13PDABL 01 – CONTROLS & UPPER PANEL

Products

Position	Product
001	MAY 33001711
002	(WHT)
002	WP98008544 Whirlpool Screw Assembly
003	MAY 212982
004	MAY Y310376
005	MAY Y306232
005	MAY 912012
006	206637 Whirlpool Lock Kit
007	MAY Y306712
007	WP90767 Whirlpool Screw
008	MAY 314635
010	MAY 314654
011	MAY 22001810
012	MAY 910387
013	WP62739 Whirlpool Nut
014	MAY 310933
016	MAY 314631
016	MAY Y310632
016	MAY Y313561
018	MAY 306233
019	MAY 33001201
019	MAY 910186
020	MAY 308143L
020	MAY 308143
021	WPW10131838 Whirlpool Voltage Switch
022	WP33001156 Whirlpool Button
023	MAY 33001209
025	WPW10139210 Whirlpool Screw
025	MAY 314634
026	MAY 33001204
027	M0282005 Whirlpool Nut
028	CIRCUIT BOARD ASSEMBLY
028	MAY 33001290
029	MAY Y052659
030	MAY 33001200
031	MAY 33001407
031	MAY 33001333
031	MAY 33001332
031	MAY 314522
031	CABLE STRAP-HARNESS TO BASE
031	MAY 33001404
031	MAY 33001405
032	REJECTOR ASSY. (.25)
032	REJECTOR ASSY. (.25)
033	MAY 315427
034	SCREW, FRONT & EXTRUSION
035	WPW10131119 Whirlpool Screw
036	DOWEL PIN FOR HANDLE
036	MAY 314666
037	W11395752 Whirlpool Nut
038	LOCKWASHER, LOCK CAM
039	MAY 22001355
040	SWITCH, OPTIC ASSEMBLY
041	MAY 33001157
