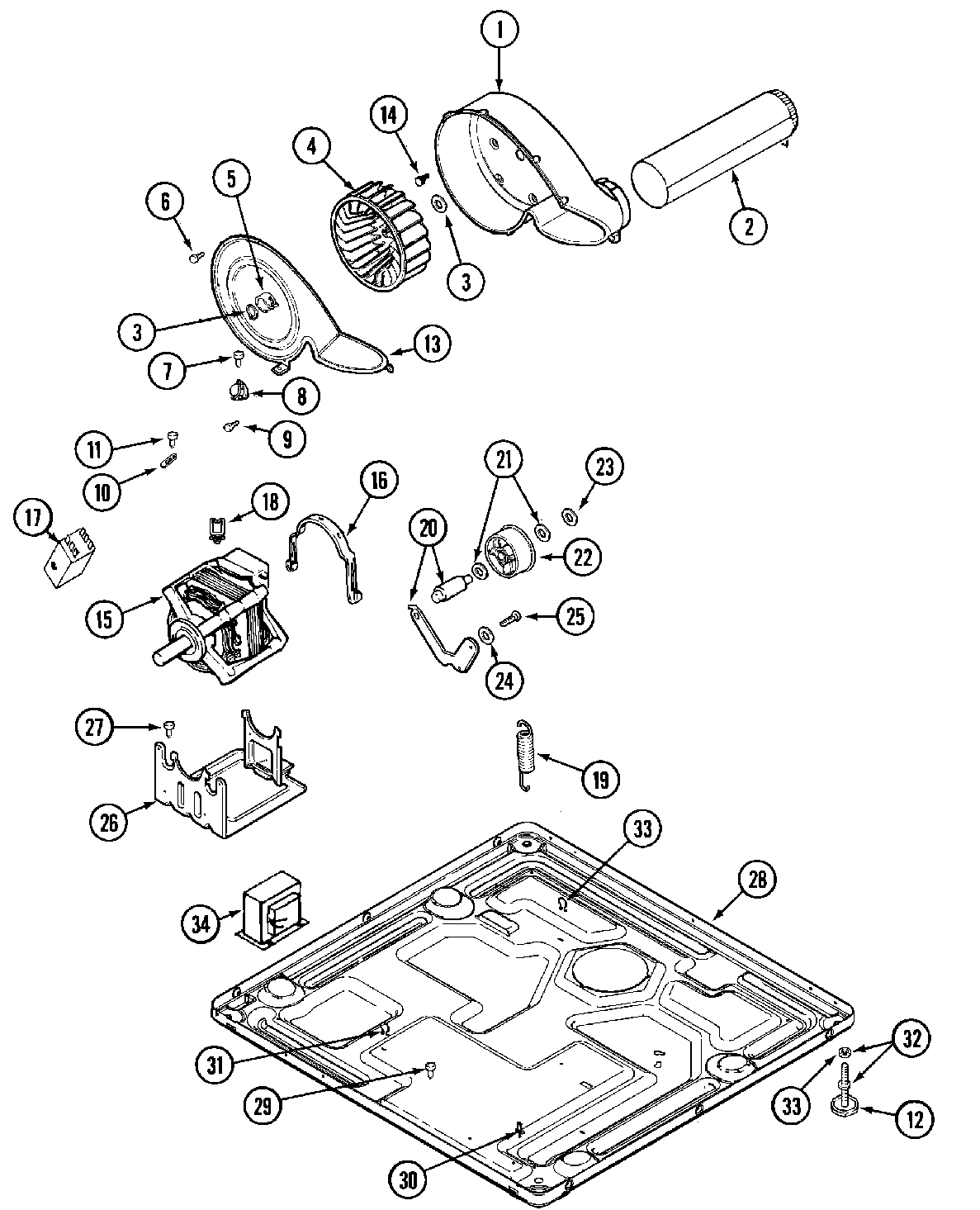

MDG14PDAGW 07 – MOTOR DRIVE

Products

Position	Product
001	WP33001789 Whirlpool Blower Housing Assembly
002	MAY 33001800
002	W11573574 Whirlpool Screw
003	WP9703438 Whirlpool Snap Retaining Ring
004	33001790 Whirlpool Blower Wheel
005	WP312967 Whirlpool Clamp
006	WP3400065 Whirlpool Refrigerator Screw
008	WP33303391 Whirlpool Thermostat
008	WP694674 Whirlpool Cycling Thermostat
009	WP489128 Whirlpool Refrigerator Screw
010	WP33001762 Whirlpool Dryer Thermal Fuse
012	WPY314137 Whirlpool Rubber Foot
013	MAY 33001796
014	MAY 314818
015	MAY 33001945
015	W10197708 Whirlpool Drive Motor Assembly
015	MAY 33002463
016	WPY015825 Whirlpool Motor Clip
018	MAY Y310376
019	MAY 33002461
019	33002459 Whirlpool Idler Spring
020	WP6-3705180 Whirlpool Idler Pulley Lever
021	MAY Y312527
022	WP6-3700340 Whirlpool Belt Tension Pulley Wheel
023	WP354987 Whirlpool C-Clip
024	WP315772 Whirlpool Sleeve
025	WPY014874 Whirlpool Screw
026	MAY 33001752
026	MAY 33002466
027	MAY Y313561
028	MAY 33002622
028	DOWEL PIN FOR HANDLE
029	WP3177991 Whirlpool Screw
030	MAY 315471
031	MAY 410490
032	W10176519 Whirlpool Leveling Feet
033	WP62739 Whirlpool Nut
034	MAY Y313559
034	MAY 33001948
034	WP90767 Whirlpool Screw
