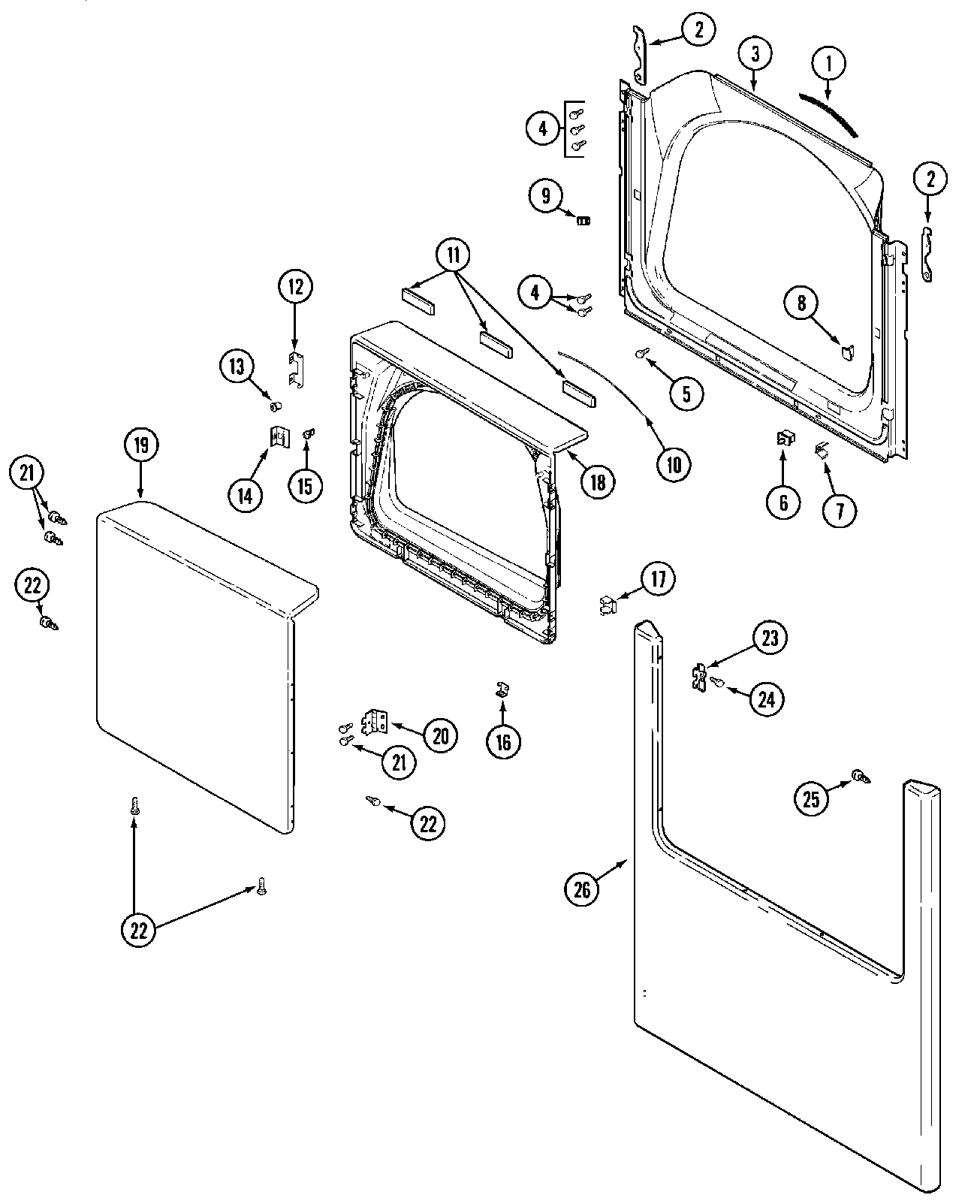

MDG16CSAEW 09 – DOOR (MDG16CSAWQ)

Products

Position	Product
001	MAY 33001767
002	MAY 22002247
003	MAY 33001900
004	W11573574 Whirlpool Screw
005	MAY 33001768
006	W10169313 Whirlpool Door Switch Kit
007	MAY 33001760
009	MAY Y304578
010	WP33002094 Whirlpool Door Seal
011	MAY 33001268
012	MAY 22002038
013	MAY 33001771
014	WP33001793 Whirlpool Bracket Spring
015	MAY 33001761
017	MAY 33001763
018	MAY 22002039
018	MAY 22002063
020	WP33001759 Whirlpool Door Hinge
021	WP98006631 Whirlpool Screw
022	SCREW
023	MAY 33002349
024	WP33001787 Whirlpool Screw
025	WP22002012 Whirlpool Screw Assembly
025	MAY 22002244
026	MAY 22002239
026	MAY 213280
026	DOWEL PIN FOR HANDLE
