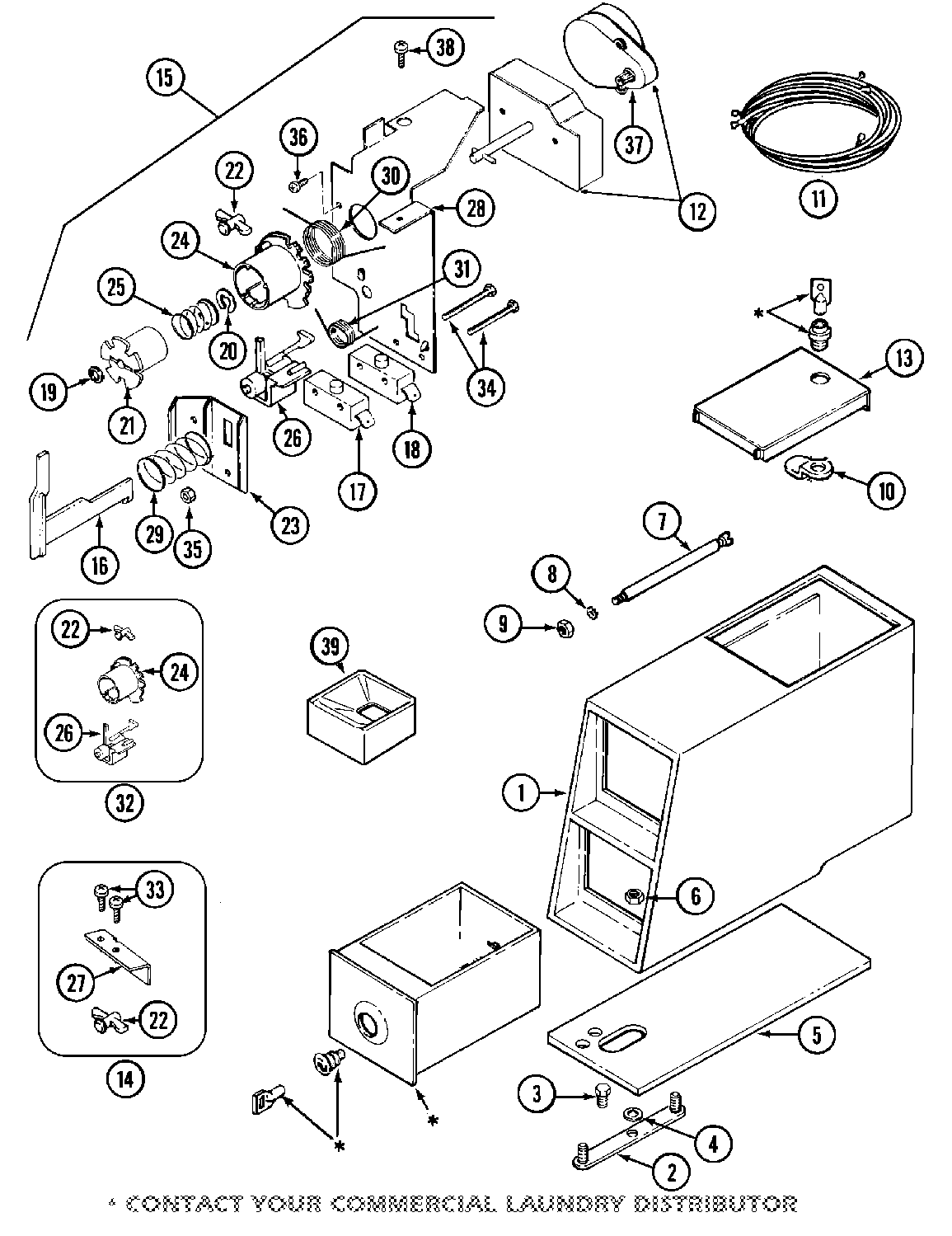

MDG16CSAGW 02 – CONTROL CENTER

Products

Position	Product
001	VAULT, COIN (ALM) (ORIGINAL COIN VAULT NLA USE
002	MAY 22001810
003	WP90767 Whirlpool Screw
004	MAY 910309
005	MAY 22002072
005	(ALM)
006	WP62739 Whirlpool Nut
007	BOLT, LOCKING
008	MAY 910387
009	Y052721 Whirlpool Nut
011	MAY 33001195
012	MAY 33001155
012	MAY 33001274
013	MAY 22001881
013	MAY 22001910
013	MAY 22001882
013	MAY 22001883
013	(ALM)
014	MAY 33001688
015	MAY 33001276
015	MAY 33001275
016	33002968 Whirlpool Slider
017	MAY 305798
018	MAY Y305799
020	MAY Y312270
021	MAY 314330
022	MAY 314547
022	TIME ADJUSTMENT PEG
023	MAY 314339
024	MAY 314546
025	WP211065 Whirlpool Timer Spring
026	MAY 314548
027	MAY 33001708
028	MAY 33001207
031	MAY 314332
032	MAY 306104
033	W11684507 Whirlpool Screw
034	MAY 315277
035	MAY Y052634
036	MAY 910708
037	MAY Y308991
038	WPW10139210 Whirlpool Screw
039	WP22002478 Whirlpool Case
039	MAY 22002533
039	MAY 22002534
040	MAY 22001917
041	DOWEL PIN FOR HANDLE
041	(REMOVED AT SERIES 21)
