MDG16CSAXW 05 – GAS VALVE

MDG16CSAXW 05 – GAS VALVE

Written by

in

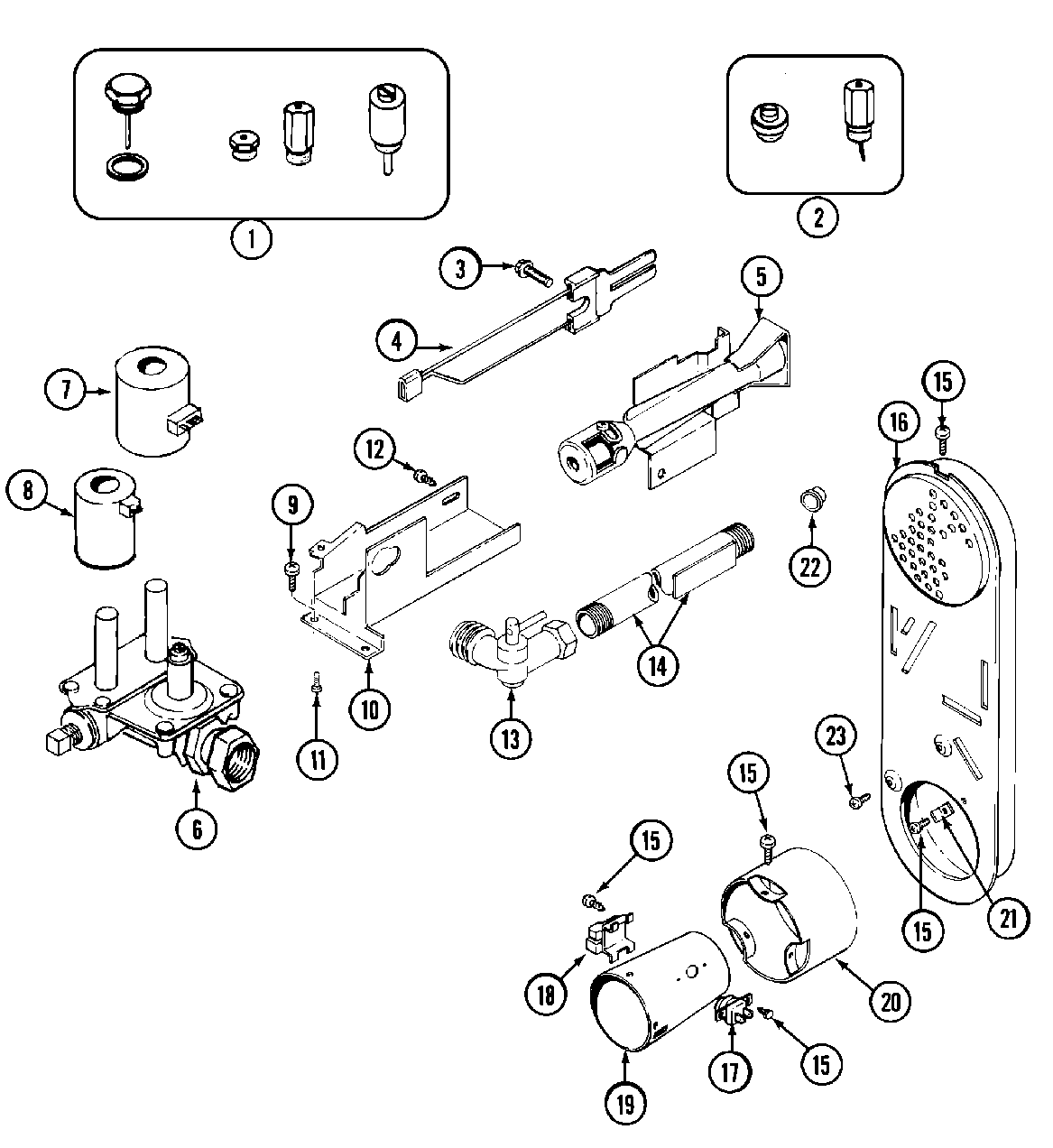

MDG16CSAXW 05 – GAS VALVE

Products

PositionProduct
001CONVERSION KIT (NAT TO LP)
002MAY Y308377
003MAY 304971
0044391996 Whirlpool Dryer Flat Igniter
005WP33002793 Whirlpool Burner Assembly
006WP308345 Whirlpool Gas Valve Assembly
006MAY 307927
008279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
009MAY Y313561
011MAY 314568
011MAY 314082
012W11573574 Whirlpool Screw
0133406051 Whirlpool Elbow
014MAY 33001735
015WP90767 Whirlpool Screw
016DUCT ASSY., INLET (GAS)
017WP303395 Whirlpool Thermostat
017WP305169 Whirlpool Thermostat
018WP338906 Whirlpool Dryer Gas Sensor
019MAY 33001946
019MAY 33001835
020DOWEL PIN FOR HANDLE
020MAY Y303841
021MAY Y312890
022MAY 33001693
023WP489128 Whirlpool Refrigerator Screw
