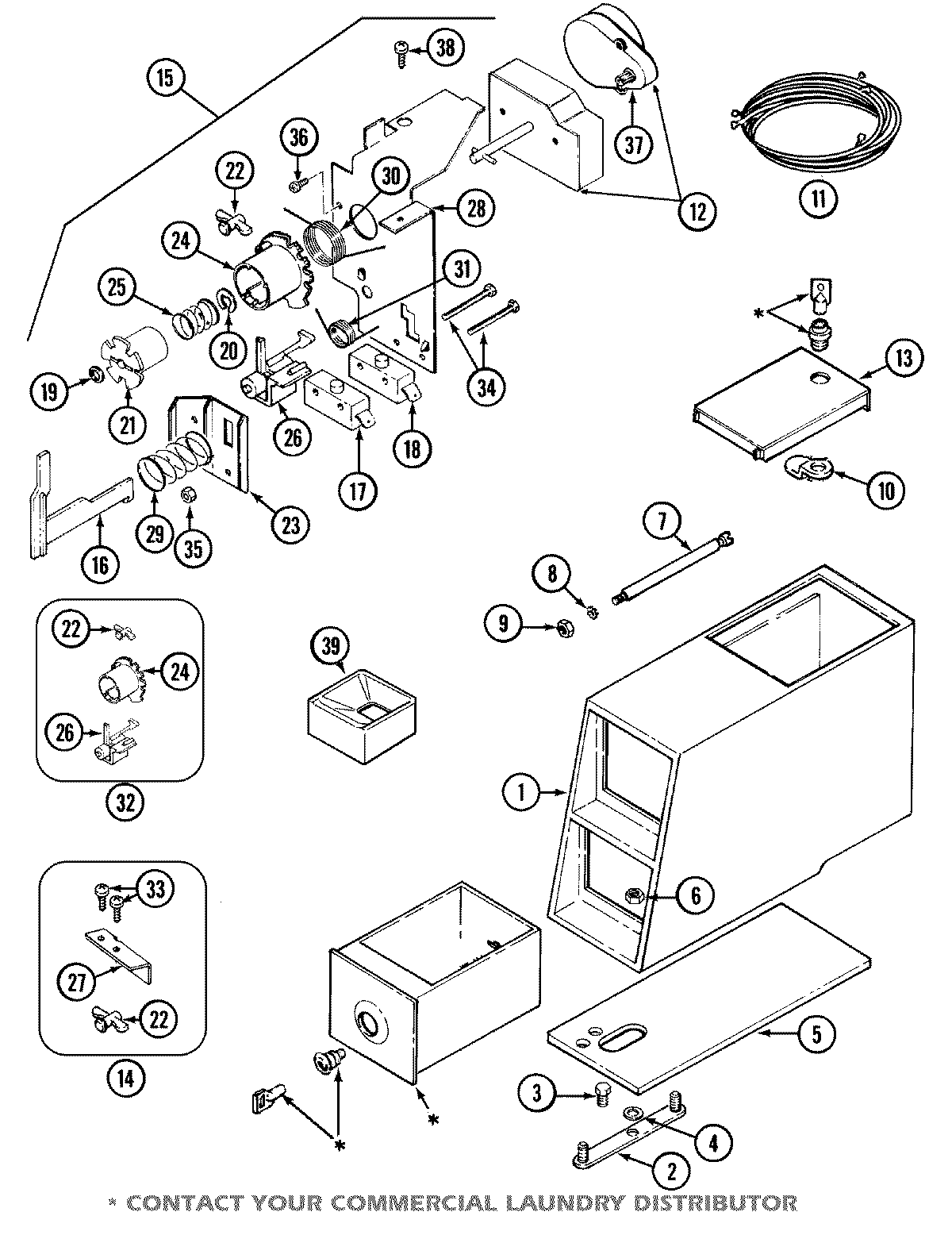

MDG16CSBGW 03 – CONTROL CENTER

Products

Position	Product
1	WP22002478 Whirlpool Case
2	MAY 22001810
3	WP90767 Whirlpool Screw
4	MAY 910309
5	MAY 22002072
6	WP62739 Whirlpool Nut
7	BOLT, LOCKING
8	MAY 910387
9	Y052721 Whirlpool Nut
10	MAY 22001905
11	MAY 33001195
12	MAY 33002136
13	MAY 33002772
13	MAY 22001883
13	MAY 22001882
13	MAY 22001881
14	MAY 33002598
15	MAY 33001276
16	33002968 Whirlpool Slider
17	MAY 305798
18	MAY Y305799
20	MAY Y312270
21	MAY 314330
22	MAY 314547
22	TIME ADJUSTMENT PEG
23	MAY 314339
24	MAY 314546
25	WP211065 Whirlpool Timer Spring
26	MAY 314548
27	MAY 33001708
28	MAY 33002702
29	MAY 314340
31	MAY 314332
32	MAY 306104
33	W11684507 Whirlpool Screw
34	MAY 315277
35	MAY Y052634
36	MAY 910708
37	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
38	WPW10139210 Whirlpool Screw
39	MAY 22002533
