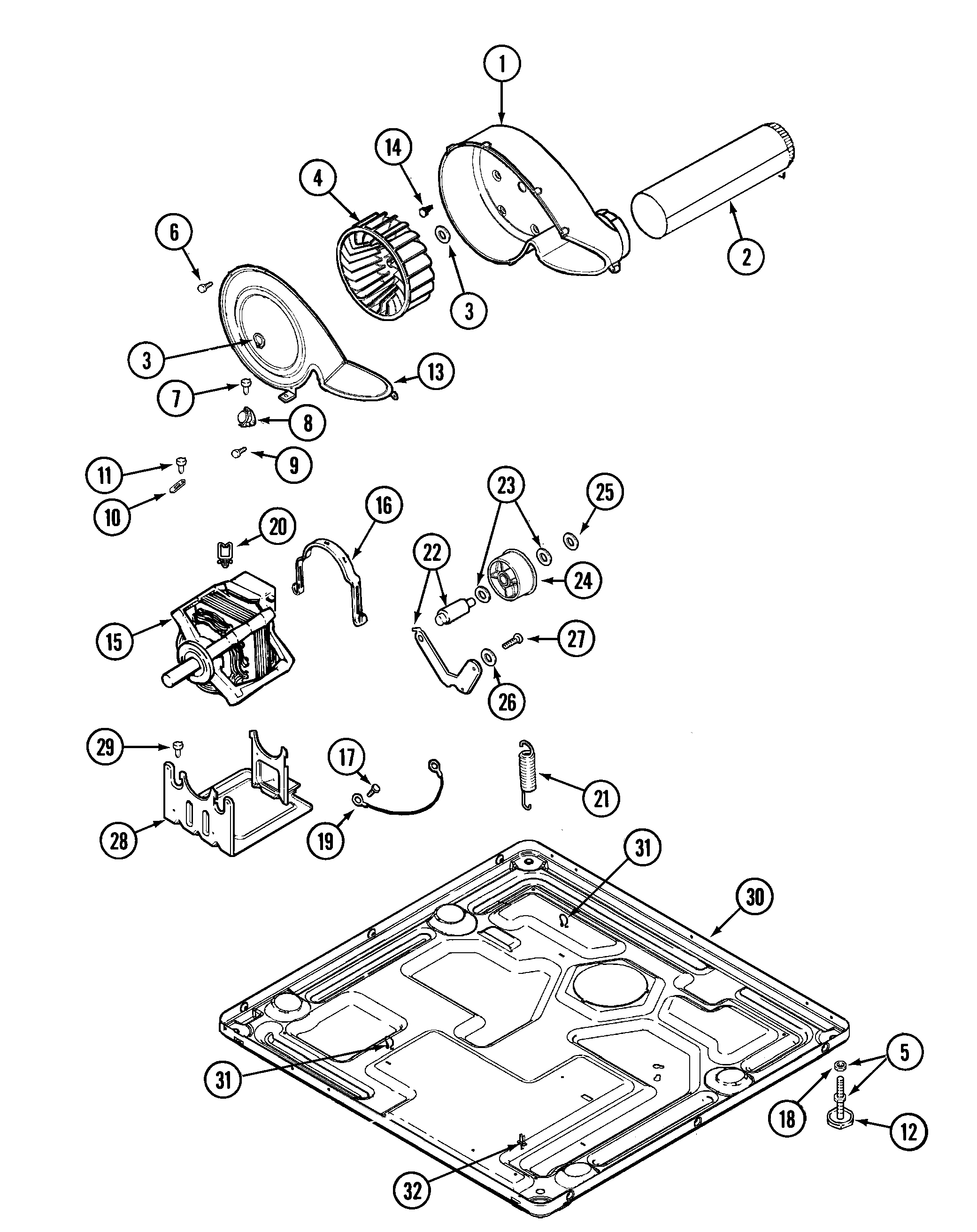

MDG16CSDGW 07 – MOTOR DRIVE & BASE

Products

Position	Product
001	WP33001789 Whirlpool Blower Housing Assembly
002	W11573574 Whirlpool Screw
002	MAY 33001800
003	WP9703438 Whirlpool Snap Retaining Ring
004	33001790 Whirlpool Blower Wheel
005	W10176519 Whirlpool Leveling Feet
006	WP3400065 Whirlpool Refrigerator Screw
008	WP694674 Whirlpool Cycling Thermostat
008	THERMOSTAT, MULTI-TEMPERATURE
009	WP489128 Whirlpool Refrigerator Screw
010	WP33001762 Whirlpool Dryer Thermal Fuse
012	WPY314137 Whirlpool Rubber Foot
013	MAY 33002711
014	MAY 314818
015	WP33002795 Whirlpool Drive Motor
015	W10197708 Whirlpool Drive Motor Assembly
016	WPY015825 Whirlpool Motor Clip
017	MAY 910343
018	WP62739 Whirlpool Nut
019	MAY 901220
020	MAY Y310376
021	MAY 33002461
021	33002459 Whirlpool Idler Spring
022	WP6-3705180 Whirlpool Idler Pulley Lever
023	MAY Y312527
024	WP6-3700340 Whirlpool Belt Tension Pulley Wheel
025	WP354987 Whirlpool C-Clip
026	MAY 33002218
027	WPY014874 Whirlpool Screw
028	MAY 33002817
029	MAY Y313561
030	DOWEL PIN FOR HANDLE
031	MAY 410490
032	MAY 315471
