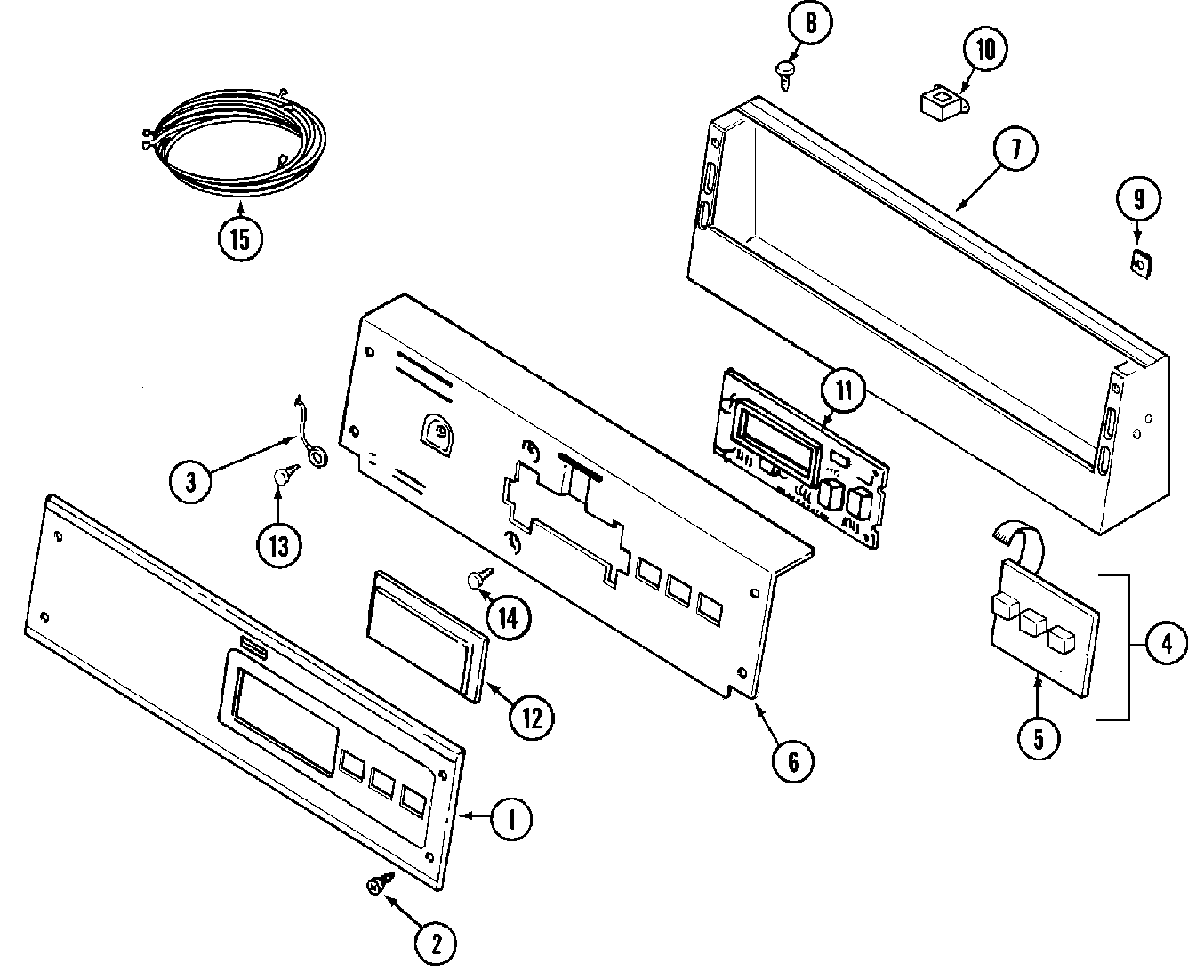

MDG16PDAWQ 04 – CONTROL PANEL (MDG16PDAWQ/MDG16PDAXQ)

Products

Position	Product
001	MAY 33001784
002	WPW10131119 Whirlpool Screw
003	MAY 22001959
004	W10756178 Whirlpool Screw
004	BACKUP PLATE W/SWITCH
005	WPW10424308 Whirlpool Push Button
006	MAY 22001511
006	MAY 33002429
007	MAY 22002889
007	MAY 22003088
008	WP489128 Whirlpool Refrigerator Screw
009	MAY 215003
010	MAY 22001960
010	MAY 211251
010	74005230 Whirlpool Oven Lock Nut (8-32)
011	MAY 33001204
011	M0282005 Whirlpool Nut
011	MAY 33001746
012	WPW10131114 Whirlpool Cover Assembly
013	WP489399 Whirlpool Refrigerator Screw
014	SCREW, CIRCUIT BOARD
015	DOWEL PIN FOR HANDLE
