MDG16PDBGW 04 – CONTROL PANEL

MDG16PDBGW 04 – CONTROL PANEL

Written by

in

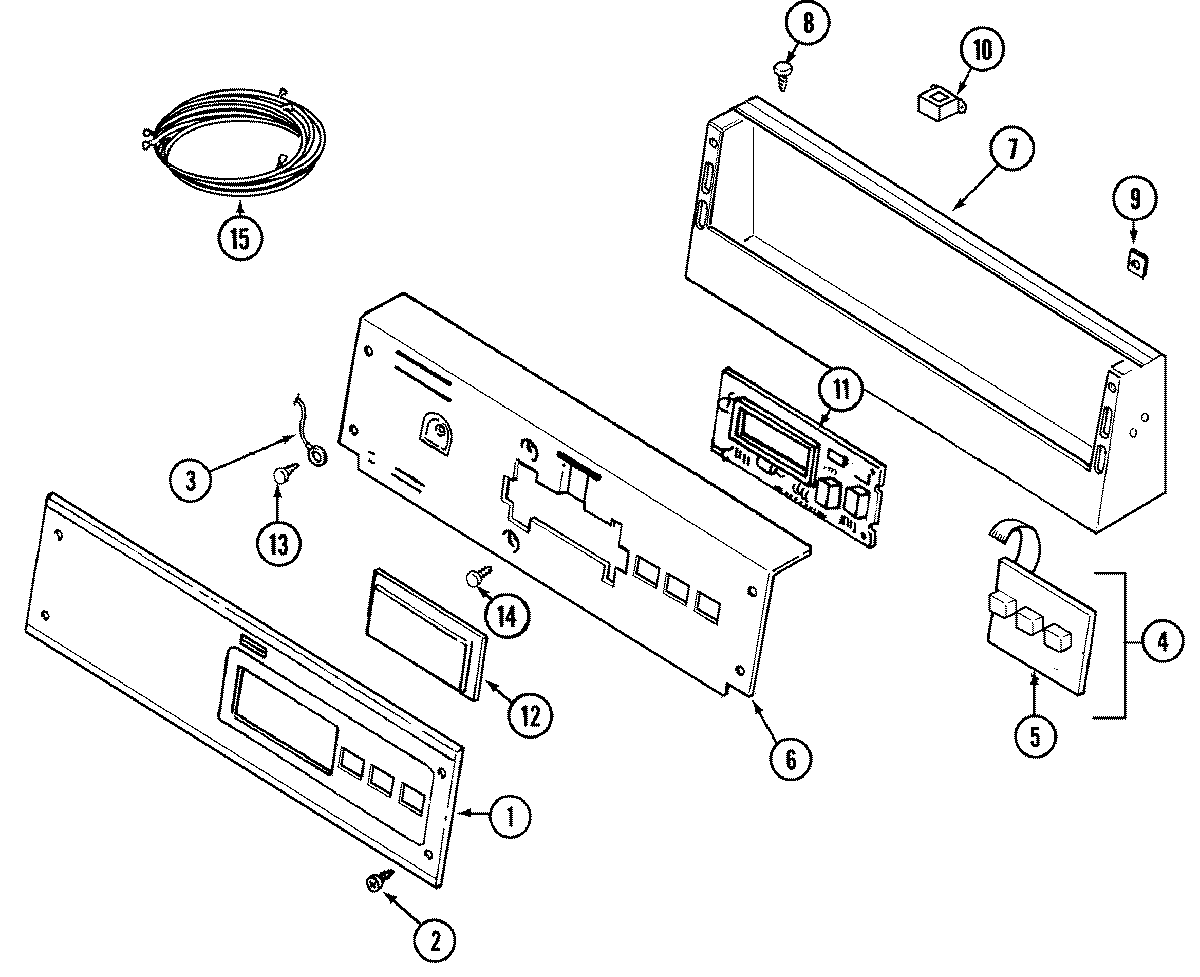

MDG16PDBGW 04 – CONTROL PANEL

Products

PositionProduct
1MAY 33001784
2WPW10131119 Whirlpool Screw
3MAY 205810
4MAY 33002165
4W10756178 Whirlpool Screw
5WPW10424308 Whirlpool Push Button
6MAY 33002519
6MAY 22002954
7MAY 22003089
8WP489128 Whirlpool Refrigerator Screw
9MAY 215003
10MAY 22002139
10MAY 211251
1074005230 Whirlpool Oven Lock Nut (8-32)
11M0282005 Whirlpool Nut
11MAY 33001204
12WPW10131114 Whirlpool Cover Assembly
13WP489399 Whirlpool Refrigerator Screw
14SCREW, CIRCUIT BOARD
15MAY 33001973
