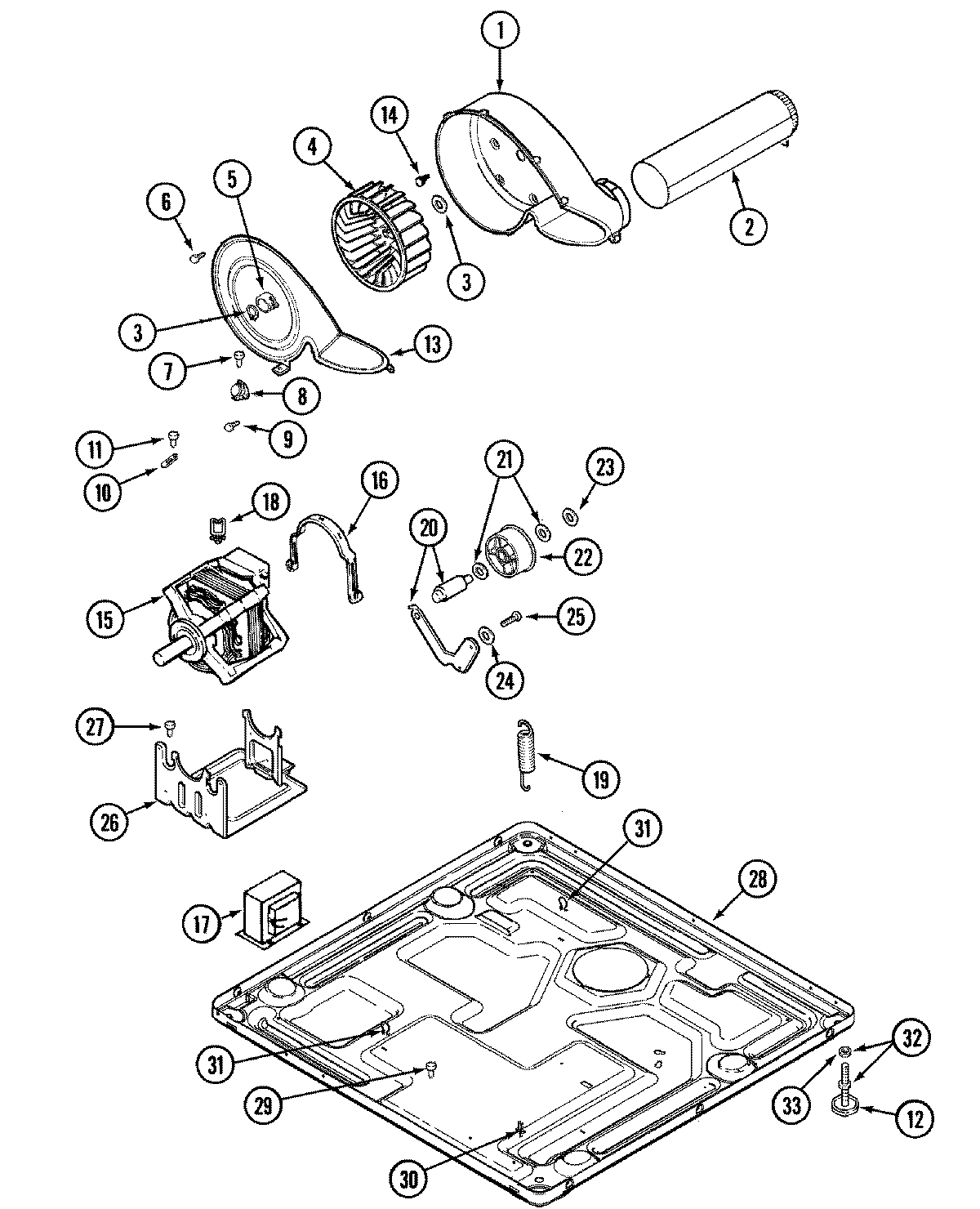

MDG16PDBGW 07 – MOTOR DRIVE

Products

Position	Product
1	WP33001789 Whirlpool Blower Housing Assembly
2	W11573574 Whirlpool Screw
2	MAY 33001800
3	WP9703438 Whirlpool Snap Retaining Ring
4	33001790 Whirlpool Blower Wheel
4	WP33002797 Whirlpool Wheel
5	WP312967 Whirlpool Clamp
6	WP3400065 Whirlpool Refrigerator Screw
8	WP694674 Whirlpool Cycling Thermostat
8	WP33303391 Whirlpool Thermostat
9	WP489128 Whirlpool Refrigerator Screw
10	WP33001762 Whirlpool Dryer Thermal Fuse
11	MAY 314848
12	WPY314137 Whirlpool Rubber Foot
13	MAY 33002711
14	MAY 314818
15	W10197708 Whirlpool Drive Motor Assembly
16	WPY015825 Whirlpool Motor Clip
17	WP90767 Whirlpool Screw
17	MAY Y313559
17	MAY 33001948
18	MAY Y310376
19	33002459 Whirlpool Idler Spring
19	MAY 33002461
20	WP6-3705180 Whirlpool Idler Pulley Lever
21	MAY Y312527
22	WP6-3700340 Whirlpool Belt Tension Pulley Wheel
23	WP354987 Whirlpool C-Clip
24	WP315772 Whirlpool Sleeve
25	WPY014874 Whirlpool Screw
26	MAY 33001752
26	MAY 33002466
27	MAY Y313561
28	MAY 33001845
28	MAY 33002622
28	MAY 33002465
29	WP3177991 Whirlpool Screw
30	MAY 315471
31	MAY 410490
32	W10176519 Whirlpool Leveling Feet
33	WP62739 Whirlpool Nut
