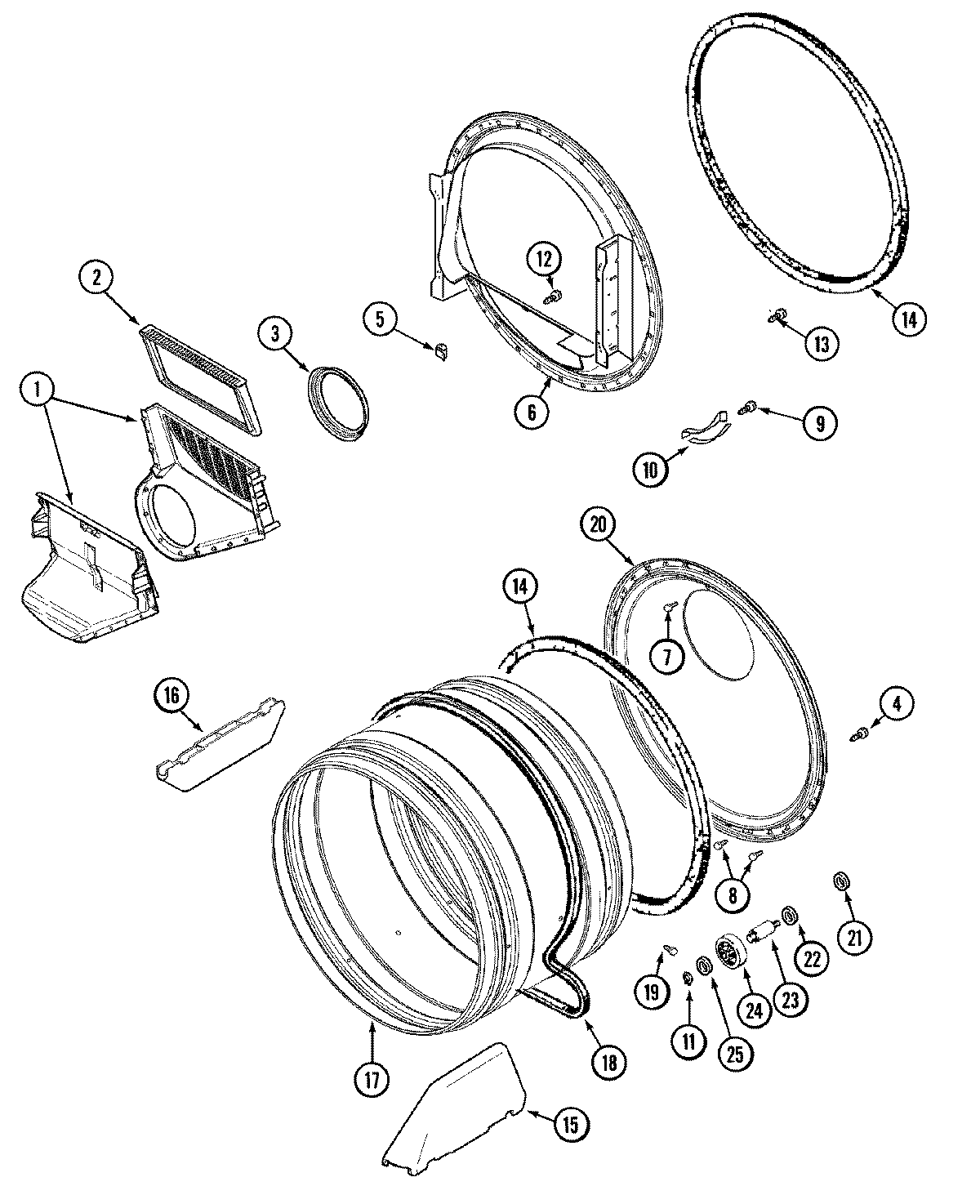

MDG16PDBGW 09 – TUMBLER

MDG16PDBGW 09 – TUMBLER

Written by

in

MDG16PDBGW 09 – TUMBLER

Products

PositionProduct
1MAY 33001799
2WP33002790 Whirlpool Lint Filter
3MAY 33002560
4SCREW, WATER VALVE BRACKET
5MAY Y310376
6MAY 33001802
7MAY 210932
8WP489128 Whirlpool Refrigerator Screw
9WP210720 Whirlpool Rivet
10306508 Whirlpool Dryer Front Glide Kit
11WP9703438 Whirlpool Snap Retaining Ring
12MAY 312311
13WP3400065 Whirlpool Refrigerator Screw
14WP33001807 Whirlpool Felt Seal
15MAY 33001756
16WP33001755 Whirlpool Drum Baffle
17MAY 33001889
18WP33002535 Whirlpool Dryer Drive Belt
19MAY 33001788
20MAY 33001801
21WP33001443 Whirlpool Hex Nut
23WP6-3129480 Whirlpool Roller Shaft
24MAY Y303373
25WP312535 Whirlpool Washer
