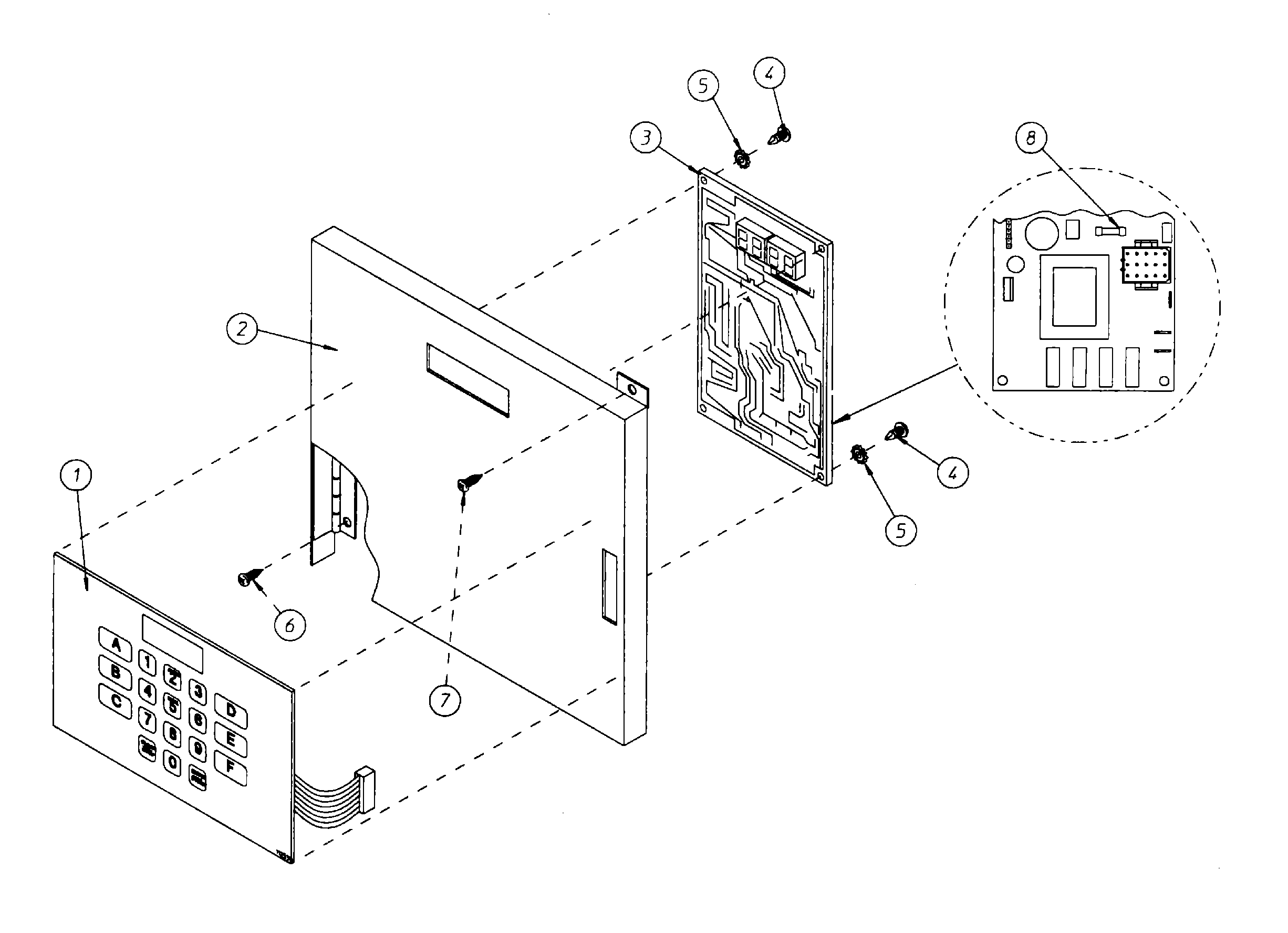

MDG170P1HW 02 – CONTROL PANEL ASSEMBLY (MICROPROCESSOR)

MDG170P1HW 02 – CONTROL PANEL ASSEMBLY (MICROPROCESSOR)

Written by

in

MDG170P1HW 02 – CONTROL PANEL ASSEMBLY (MICROPROCESSOR)

Products

PositionProduct
001MAY A112535
001MAY A112278
001LABELS, OPL (STICK-ON) (ENGLISH ONLY)
001LABELS, OPL (STICK-ON) (ENGLISH, SPANISH & HEBREW)
001MAY A112275
002MAY A821102
002MAY A821101
002MAY A821024
002MAY A881055
003MAY A137225
004SCREW, PHILL (6-32 X 1/4“)RND
005MAY A153010
006MAY A150000
007SCREW, CRIMPTITE
008FUSE, 1/8 AMP (SLO BLO)
010NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
