MDG170P1HW 19 – M/PROCESSOR REV. CNTCTR MTG. PNL. ASSY.

Products

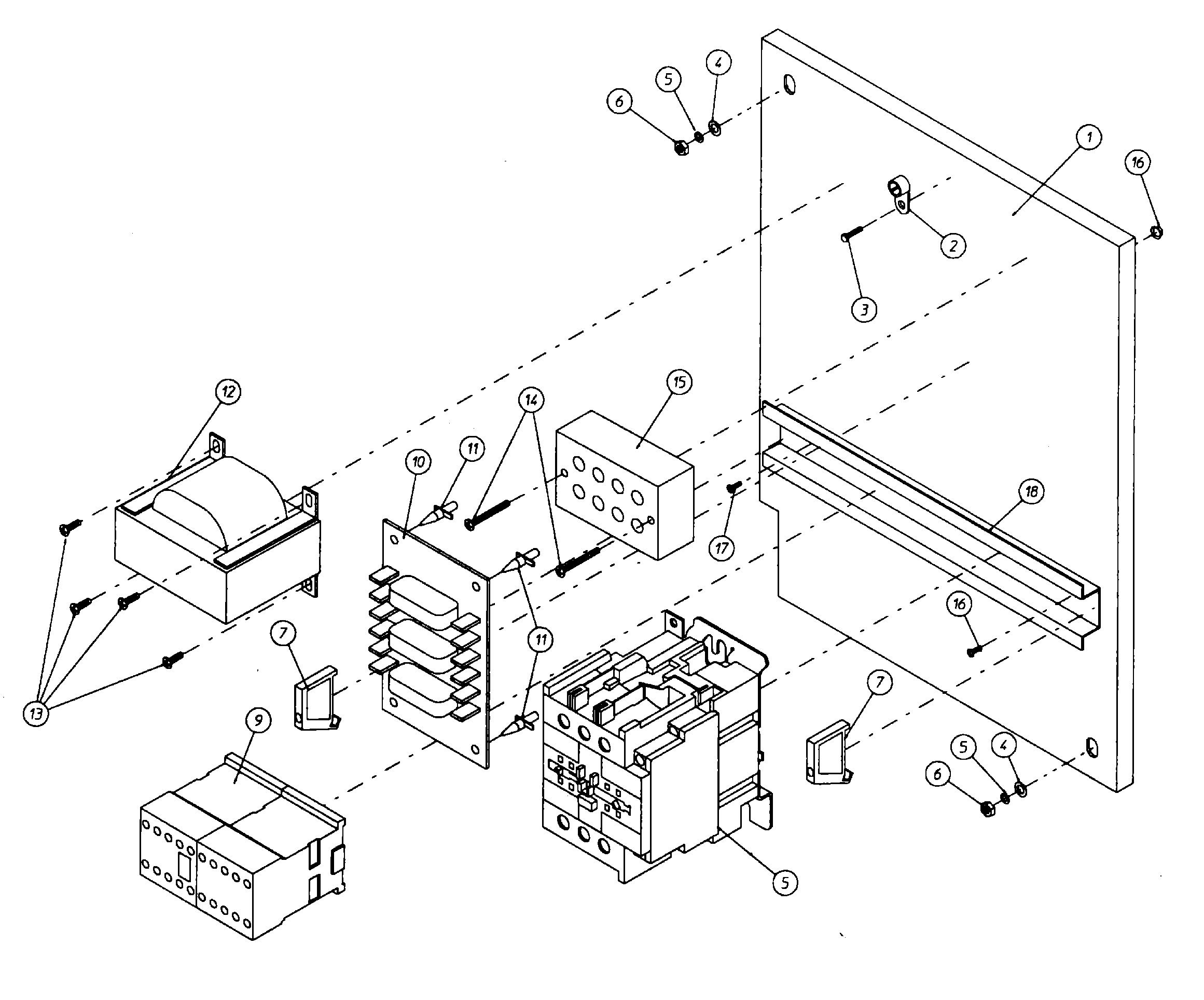

PositionProduct
001PANEL, RELAY/CONTACTOR (ONLY)
002MAY A121010
003MAY A150108
004MAY A153001
005MAY A153002
006MAY A152004
007MAY A120765
008MAY A132465
009MAY A132432
010MAY A137060
011MAY A137013
012NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
013MAY A150300
014SCREW, MACHINE
015BLOCK, POWER DISTRIBUTION
016MAY A151000
017SCREW, CRIMPTITE
018RAIL, DIN MOUNTING
