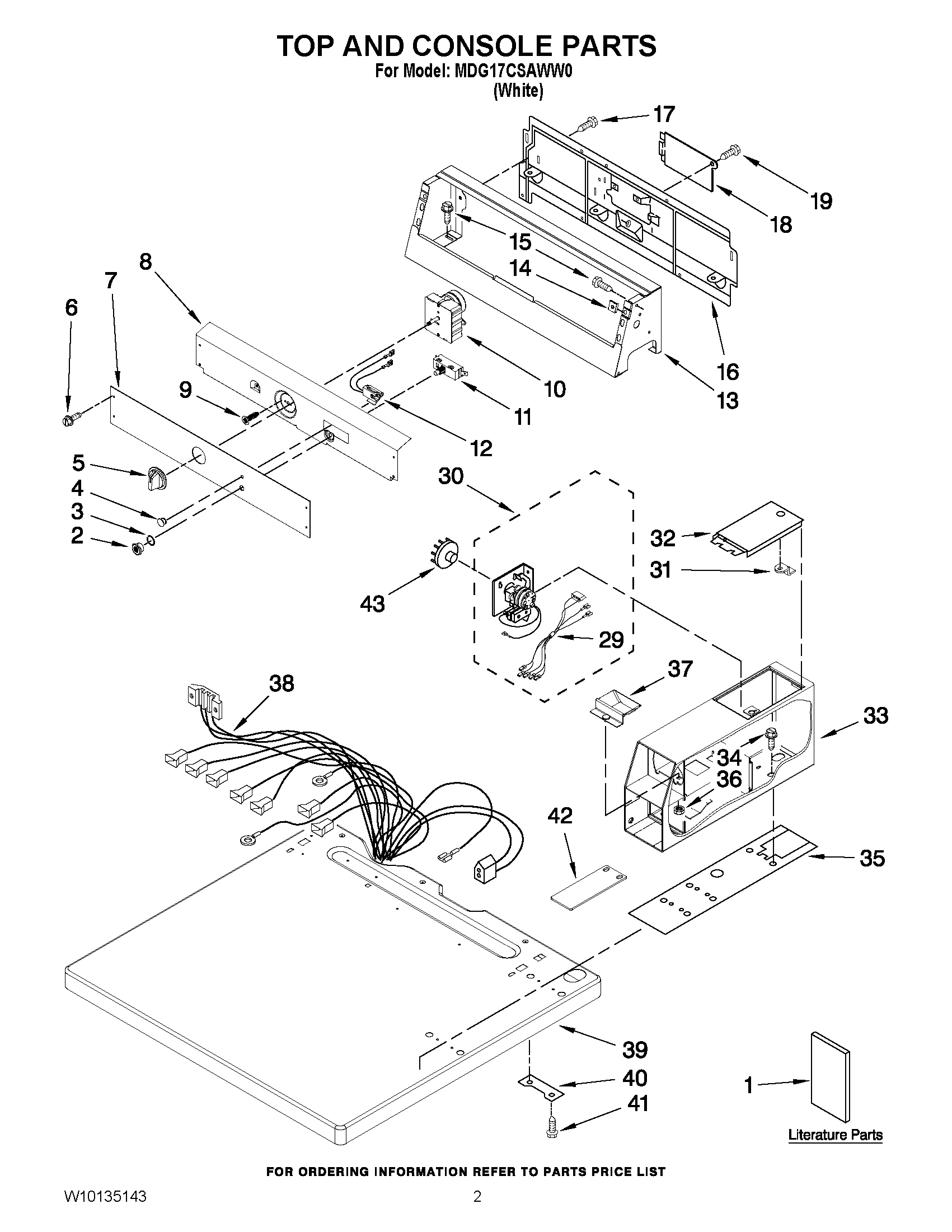

MDG17CSAWW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10135143
1	MAY W10135134
1	MAY W10167622
2	MAY W10146429
3	MAY W10139799
4	INDICATOR LIGHTS ASSEMBLY
5	KNOB
6	MAY W10131119
7	MAY W10135183
8	MAY W10124213
9	SCREW
10	MAY W10129712
11	MAY W10149462
12	Lamp-Indicator 120 V.
13	MAY W10137299
14	NUT, "U"
15	MAY W10139210
16	MAY 3978608
17	SCREW
18	MAY 8317340
19	Screw, 8-18 x 3/8
29	MAY W10177793
30	Timer 7 Harness Assembly
31	CAM COMMERCIAL LOCK
32	ASSEMBLY, SERVICE DOOR
33	MAY W10136649
34	BOLT
34	METER CASE MOUNTING (BOLT)
35	CUSHION, METER CASE
36	MAY W10139060
37	MAY W10133509
38	MAY W10153108
39	TOP (WHITE MDE20PDAGW0)
40	MAY 3347825
41	SCREW
42	MAY W10153513
43	Timing Cam (Cam – 6 Pin)
43	Timing Cam (Cam – 3 Pin)
