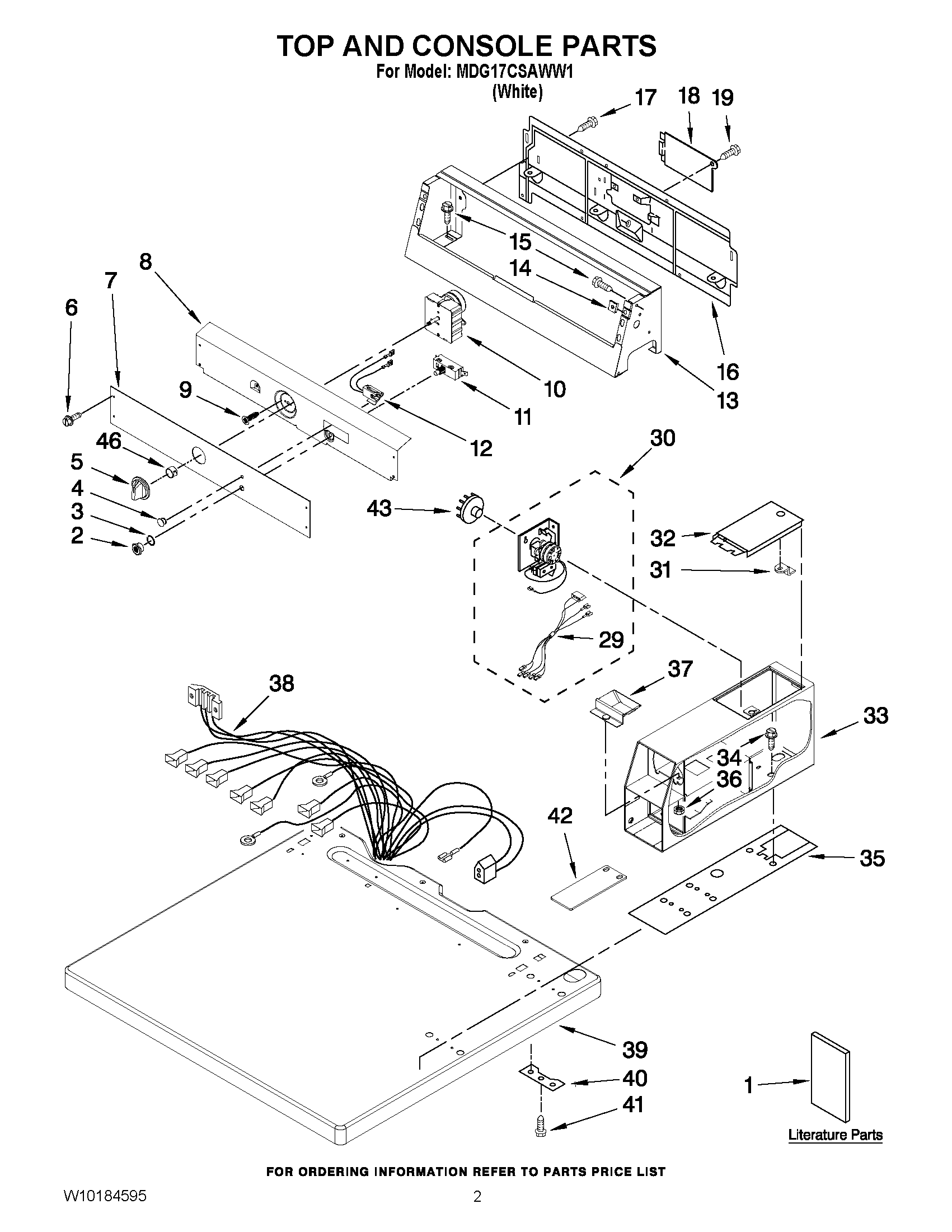

MDG17CSAWW1 01 – TOP AND CONSOLE PARTS
Written by
in
MDG17CSAWW1 01 – TOP AND CONSOLE PARTS
Products
Position
Product
1
MAY W10184595
1
MAY W10167622
1
MAY W10184576
2
MAY W10146429
3
MAY W10139799
4
INDICATOR LIGHTS ASSEMBLY
5
KNOB
6
MAY W10131119
7
MAY W10135183
8
MAY W10124213
9
SCREW
10
MAY W10129712
11
MAY W10149462
12
Lamp-Indicator 120 V.
13
MAY W10205153
14
NUT, "U"
15
MAY W10139210
16
MAY 3978608
17
SCREW
18
MAY 8317340
19
Screw, 8-18 x 3/8
29
MAY W10177793
30
Timer 7 Harness Assembly
31
MAY W10156125
32
ASSEMBLY, SERVICE DOOR
33
MAY W10136649
34
BOLT
34
METER CASE MOUNTING (BOLT)
35
CUSHION, METER CASE
36
MAY W10139060
37
MAY W10133509
38
MAY W10153108
39
TOP (WHITE MDE20PDAGW0)
40
MAY 3347825
41
SCREW
42
MAY W10153513
43
Timing Cam (Cam – 6 Pin)
43
Timing Cam (Cam – 3 Pin)
46
MAY W10140928
←
