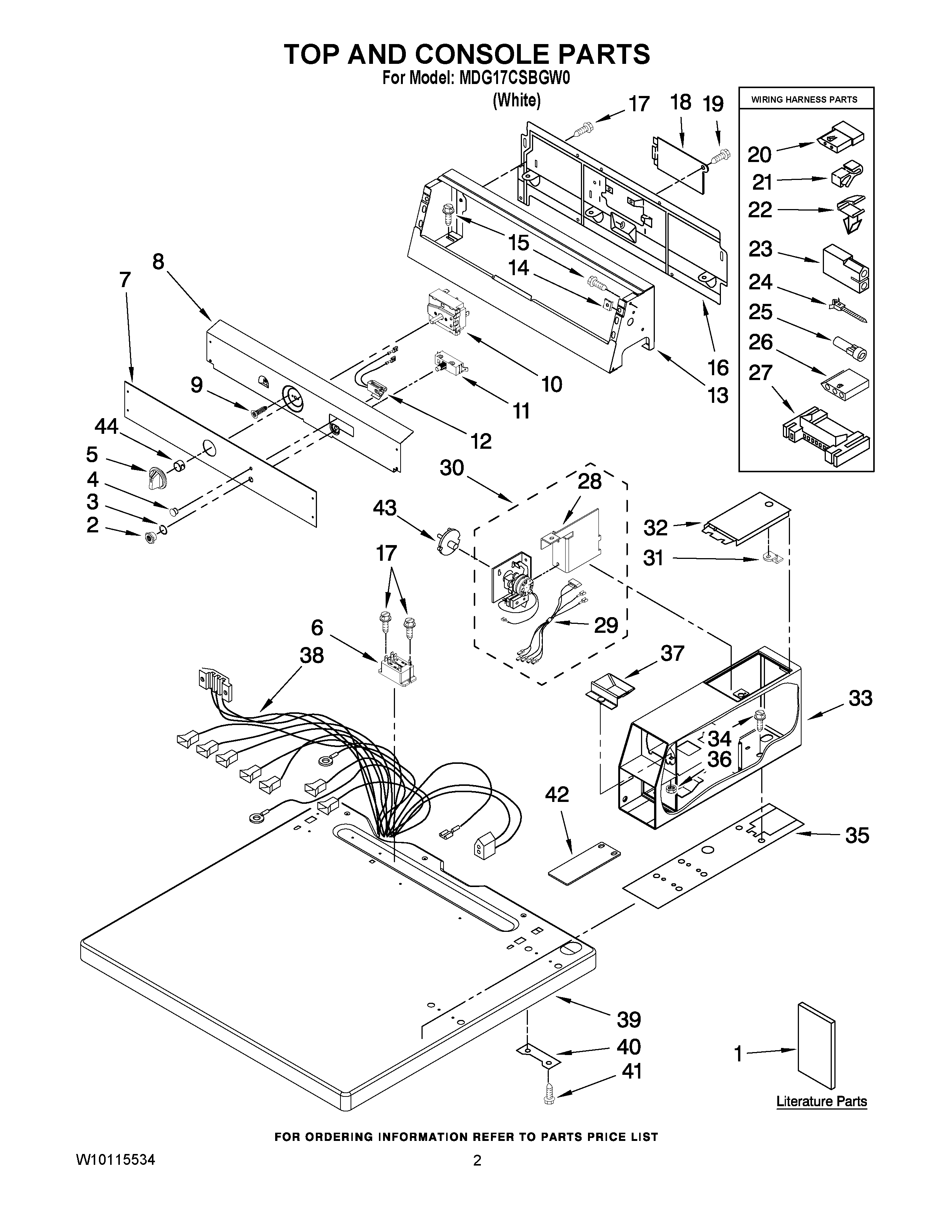

MDG17CSBGW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10115538
1	MAY W10115534
1	MAY W10163151
2	MAY W10146429
3	MAY W10139799
4	INDICATOR LIGHTS ASSEMBLY
5	KNOB
6	RELAY, HEATER 230V
7	MAY W10135190
8	MAY W10124213
9	SCREW
10	MAY W10137919
11	MAY W10181931
12	LAMP, INDICATOR
13	MAY W10205153
14	NUT, "U"
15	MAY W10139210
16	MAY W10135273
17	MAY W10080700
18	MAY 8317340
19	SCREW
21	MAY 357572
22	CLIP, HARNESS
23	TERMINAL PLUG
24	MAY 3391018
25	Plug, Harness
26	MAY 3936144
27	CONNECTOR (MOTOR)
28	MAY W10154739
29	MAY W10111030
30	MAY W10135270
31	CAM COMMERCIAL LOCK
32	ASSEMBLY, SERVICE DOOR
33	MAY W10136649
34	MAY W10223792
34	BOLT, METER CASE MOUNTING (SCREW)
35	CUSHION, METER CASE
36	MAY W10139060
37	MAY W10133509
38	MAY W10242912
39	TOP (WHITE MDE20PDAGW0)
40	MAY 3347825
41	MAY W10223798
42	MAY W10153513
43	TIMING CAM (CAM – 4 PIN)
44	MAY W10140928
